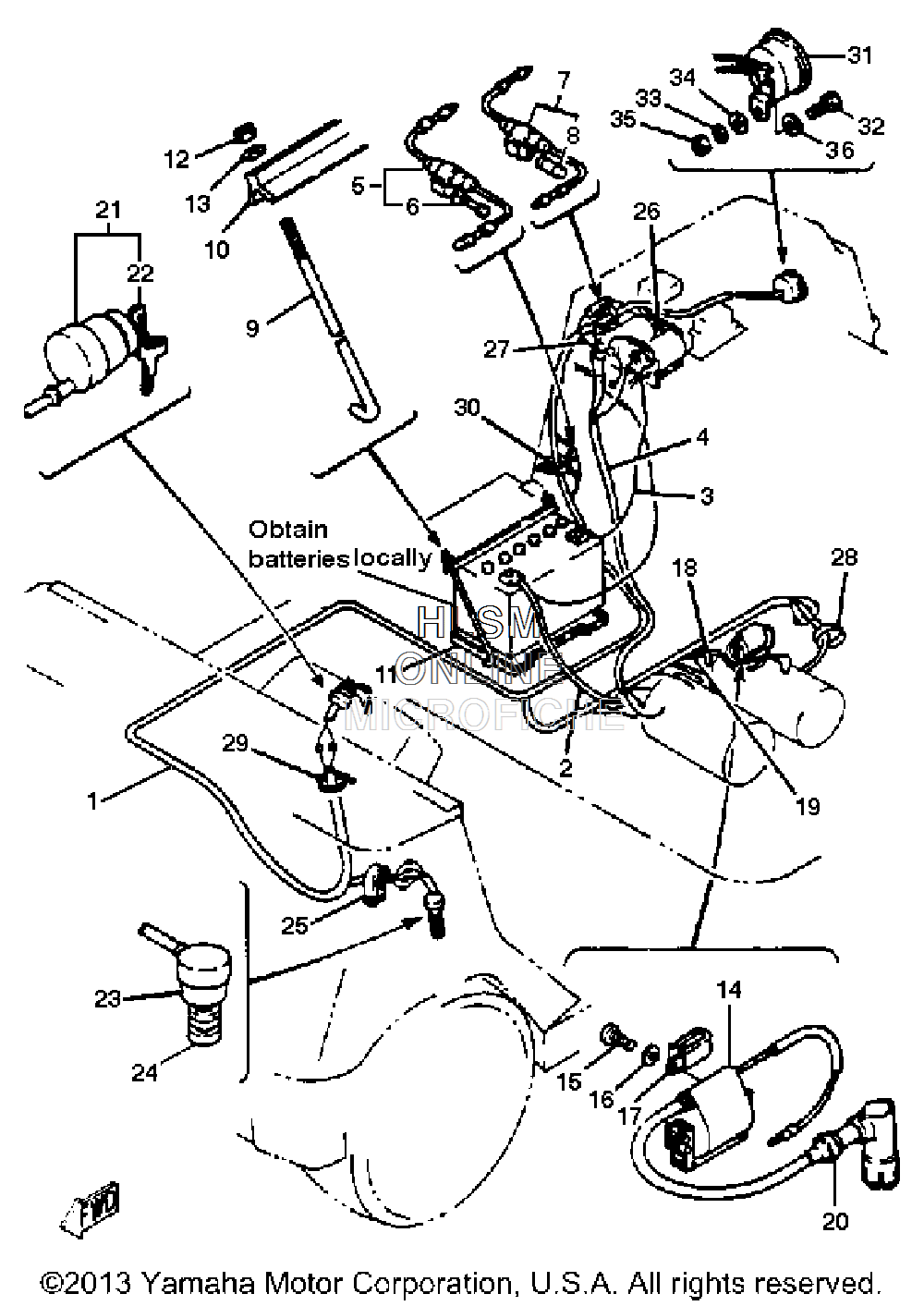

ELECTRICAL для Yamaha GOLF CAR GAS [G1AM3] (J24) - 1983 года выпуска`
-
№АртикулНазвание
-
1J17-82590-21-00 WIRE HARNESS ASSEMBLYWIRE HARNESS ASSEMBLY
-
2J10-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
3J17-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
4J17-82105-00-00 WIRE HARNESSWIRE HARNESS
-
51E6-82150-00-00 FUSE HOLDER ASSEMBLYFUSE HOLDER ASSEMBLY
-
61E6-82151-00-00 ...FUSE (10A)...FUSE (10A)
-
71E6-82150-00-00 FUSE HOLDER ASSEMBLYFUSE HOLDER ASSEMBLY
-
81E6-82151-00-00 ...FUSE (10A)...FUSE (10A)
-
9J17-82133-00-00 SCREW, FITTINGSCREW, FITTING
-
10J55-H2136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
11J55-H2122-00-00 SEAT, BATTERYSEAT, BATTERY
-
1295701-06300-00 NUT, NYLONNUT, NYLON
-
1392990-06200-00 WASHER, PLAINWASHER, PLAIN
-
145G4-82310-40-00 IGNITION COIL ASSEMBLY (J17-82310-21-00)IGNITION COIL ASSEMBLY (J17-82310-21-00)
-
1598511-06025-00 SCREW PAN HEAD (92501-06025-00)SCREW PAN HEAD (92501-06025-00)
-
1692995-06100-00 WASHER, SPRINGWASHER, SPRING
-
1790465-06038-00 CLAMPCLAMP
-
1890464-12036-00 CLAMPCLAMP
-
19J42-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
20512-82370-10-00 PLUG CAP ASSEMBLY (WITH NOISE SUPPRESSOR)PLUG CAP ASSEMBLY (WITH NOISE SUPPRESSOR)
-
21J17-82508-20-00 MAIN SWITCH ASSEMBLYMAIN SWITCH ASSEMBLY
-
22J17-82511-20-00 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
-
23J17-82550-01-00 STOP SWITCH ASSEMBLYSTOP SWITCH ASSEMBLY
-
24J10-82532-00-00 ...CAP, RUBBER...CAP, RUBBER
-
2590465-08028-00 CLAMPCLAMP
-
26J17-86177-00-00 WIRE, LEAD 7WIRE, LEAD 7
-
27J42-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
28437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
2925G-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
3090464-12036-00 CLAMPCLAMP
-
31J10-83383-02-00 BUZZERBUZZER
-
3297313-06016-00 BOLT, HEXAGONBOLT, HEXAGON
-
3392995-06100-00 WASHER, SPRINGWASHER, SPRING
-
3492901-06600-00 WASHERWASHER
-
3595380-06600-00 NUT, HEXAGONNUT, HEXAGON
