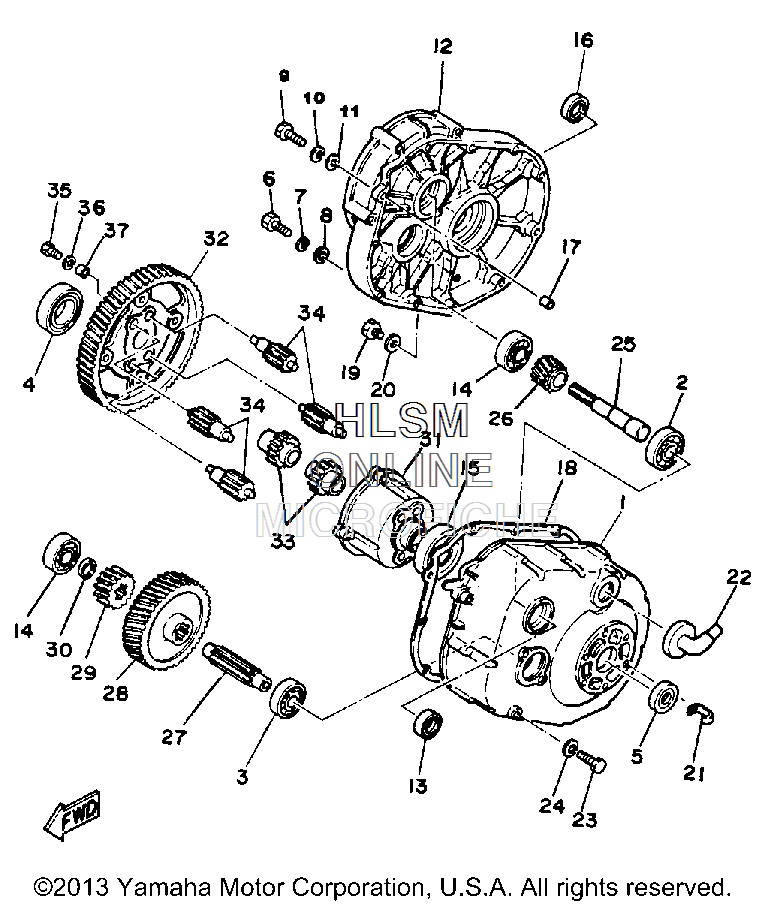

TRANSMISSION для Yamaha GOLF CAR ELECTRIC [G1EM3] (J26) - 1983 года выпуска`
-
№АртикулНазвание
-
1J14-46311-00-00 CASE, TRANSMISSION 1CASE, TRANSMISSION 1
-
293306-20529-00 BEARING (B6205C4)BEARING (B6205C4)
-
393306-20421-00 BEARINGBEARING
-
493306-00803-00 BEARINGBEARING
-
593102-22189-00 OIL SEALOIL SEAL
-
697313-08035-00 BOLTBOLT
-
792990-08100-00 WASHER, SPRINGWASHER, SPRING
-
892901-08600-00 WASHERWASHER
-
997313-08045-00 BOLT, HEXAGONBOLT, HEXAGON
-
1092990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1192901-08600-00 WASHERWASHER
-
12J14-46312-02-00 CASE, TRANSMISSION 2CASE, TRANSMISSION 2
-
1393102-20143-00 OIL SEALOIL SEAL
-
1493306-20421-00 BEARINGBEARING
-
1593306-00803-00 BEARINGBEARING
-
1693102-22189-00 OIL SEALOIL SEAL
-
1799510-12016-00 PIN, DOWELPIN, DOWEL
-
18J10-46319-01-00 GASKETGASKET
-
1990340-14036-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2090430-14043-00 GASKETGASKET
-
2190465-06100-00 CLAMPCLAMP
-
22835-47559-00-00 CAP 2CAP 2
-
2397011-10020-00 BOLTBOLT
-
2492990-10100-00 WASHER, SPRINGWASHER, SPRING
-
25J14-46321-01-00 SHAFT, INPUTSHAFT, INPUT
-
26J10-46331-02-00 GEAR, IMPUT 1GEAR, IMPUT 1
-
27J10-46351-00-00 SHAFT, COUNTERSHAFT, COUNTER
-
28J10-46361-02-00 GEAR, COUNTER 1GEAR, COUNTER 1
-
29J17-46362-00-00 GEAR, COUNTER 2GEAR, COUNTER 2
-
3090201-20272-00 WASHER, PLATEWASHER, PLATE
-
31J10-W4641-00-00 CASE, DIFFERENTIALCASE, DIFFERENTIAL
-
32J17-W4642-00-00 GEAR, RINGGEAR, RING
-
33J10-46414-00-00 GEAR, DIFF SIDEGEAR, DIFF SIDE
-
34J10-46415-00-00 PINION, DIFFPINION, DIFF
-
3597313-08030-00 BOLTBOLT
-
3692990-08100-00 WASHER, SPRINGWASHER, SPRING
-
3799510-10114-00 PIN, DOWELPIN, DOWEL
