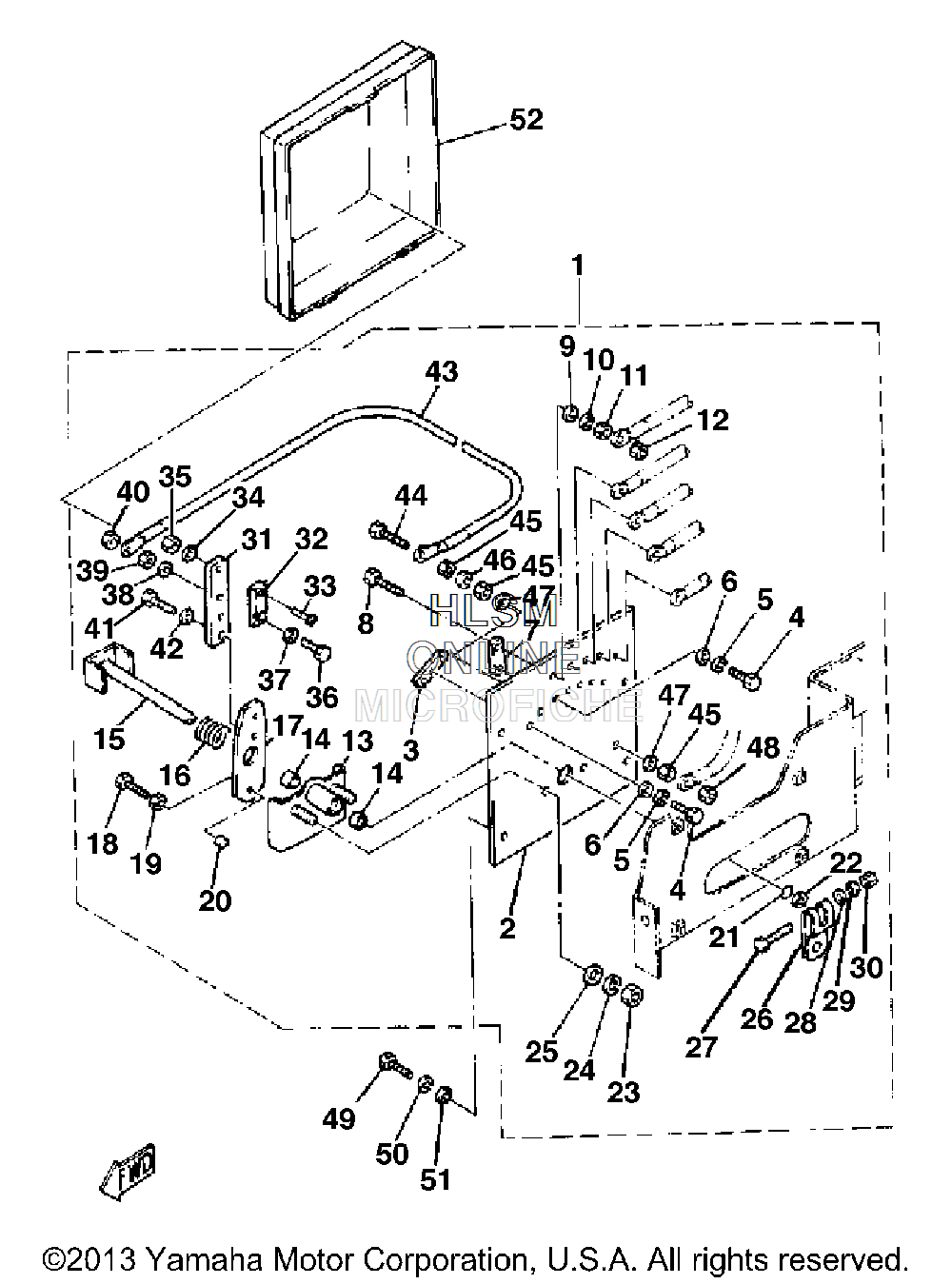

CONTROLLER 1 для Yamaha GOLF CAR ELECTRIC [G1E] (J14) - 1980 года выпуска`
-
№АртикулНазвание
-
1J46-86140-00-00 CONTROLLER ASSY (J22-86140-00-00)CONTROLLER ASSY (J22-86140-00-00)
-
2J46-86142-00-00 ...BASE, PLATE...BASE, PLATE
-
3J14-82103-00-00 ...TERMINAL 1...TERMINAL 1
-
497013-06012-00 ...BOLT...BOLT
-
592995-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
692990-06200-00 ...WASHER, PLAIN...WASHER, PLAIN
-
7J14-86162-00-00 ...CONTACT, STATE...CONTACT, STATE
-
890101-06469-00 ...BOLT...BOLT
-
992990-06200-00 ...WASHER, PLAIN...WASHER, PLAIN
-
1092995-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
1195380-06700-00 ...NUT...NUT
-
1295320-06600-00 ...NUT...NUT
-
13J14-86156-00-00 ...HOLDER, SHAFT...HOLDER, SHAFT
-
1490380-10010-00 ...BUSH, SOLID...BUSH, SOLID
-
15J14-86155-01-00 ...SHAFT, CONTROLLER...SHAFT, CONTROLLER
-
1690501-16573-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
17J14-86152-00-00 ...ARM, MOVING...ARM, MOVING
-
1897023-06020-00 ...BOLT (3XF)...BOLT (3XF)
-
1995380-06700-00 ...NUT...NUT
-
2090386-05111-00 ...BUSH, SPECIAL NYLON...BUSH, SPECIAL NYLON
-
2193210-10166-00 ...O-RING...O-RING
-
2292990-10200-00 ...WASHER, PLAIN...WASHER, PLAIN
-
2395303-08700-00 ...NUT...NUT
-
2492990-08100-00 ...WASHER, SPRING...WASHER, SPRING
-
2592901-08600-00 ...WASHER...WASHER
-
26J14-86144-01-00 ...LEVER, CONTROLLER...LEVER, CONTROLLER
-
2797021-06030-00 ...BOLT...BOLT
-
2890201-061A5-00 ...WASHER, PLATE...WASHER, PLATE
-
2992995-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
3095380-06700-00 ...NUT...NUT
-
31J14-86154-00-00 ...PLATE, CNTCT MOVING...PLATE, CNTCT MOVING
-
32J14-86153-00-00 ...CONTACT, MOVING...CONTACT, MOVING
-
3398701-04016-00 ...SCREW, FLAT HEAD (98702-04016-00)...SCREW, FLAT HEAD (98702-04016-00)
-
3492902-04300-00 ...WASHER, IN. TOOTH...WASHER, IN. TOOTH
-
3595301-04600-00 ...NUT...NUT
-
3690101-06469-00 ...BOLT...BOLT
-
3790201-063A5-00 ...WASHER, PLATE...WASHER, PLATE
-
3892995-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
3995380-06700-00 ...NUT...NUT
-
4095320-06600-00 ...NUT...NUT
-
4197313-06016-00 ...BOLT, HEXAGON...BOLT, HEXAGON
-
4292995-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
43J14-86175-00-00 ...WIRE, LEAD 5...WIRE, LEAD 5
-
4490101-06469-00 ...BOLT...BOLT
-
4595380-06700-00 ...NUT...NUT
-
4692995-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
4792990-06200-00 ...WASHER, PLAIN...WASHER, PLAIN
-
4895320-06600-00 ...NUT...NUT
-
4997023-06020-00 BOLT (3XF)BOLT (3XF)
-
5092995-06100-00 WASHER, SPRINGWASHER, SPRING
-
5190201-061A5-00 WASHER, PLATEWASHER, PLATE
-
52J56-H6163-00-00 COVER, CONTROLLERCOVER, CONTROLLER
