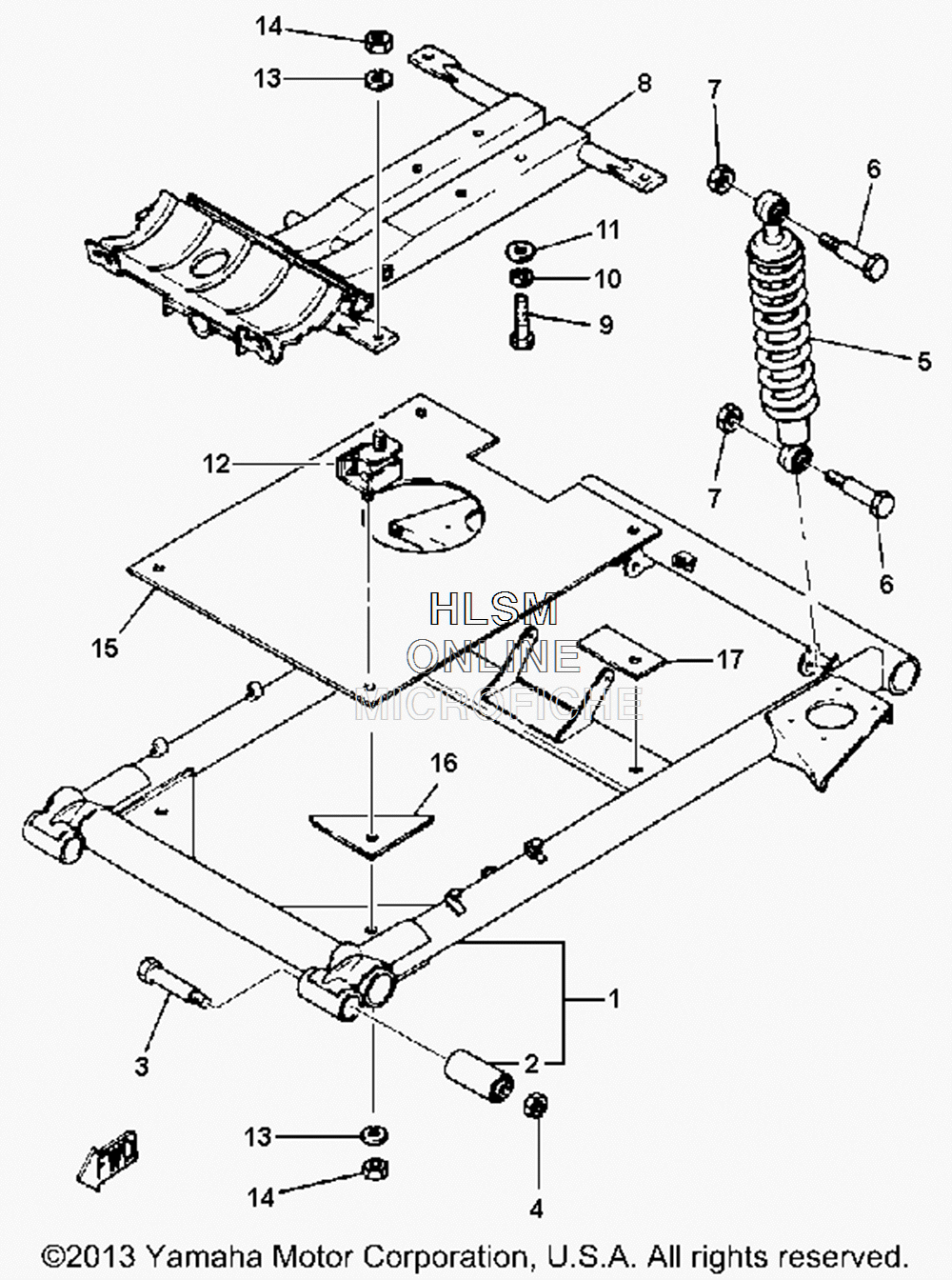

SUSPENSION - REAR SHOCK ABSORBER для Yamaha GOLF CAR GAS [G1A] (J10) - 1979 года выпуска`
-
№АртикулНазвание
-
1J10-W2211-00-00 REAR ARMREAR ARM
-
1J10-W2211-01-00 REAR ARM (J10-007705~)REAR ARM (J10-007705~)
-
2J10-22123-00-00 BUSH 1BUSH 1
-
395817-10110-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
390101-10419-00 BOLTBOLT
-
495614-10100-00 NUT, U (OPT)NUT, U (OPT)
-
495617-10100-00 NUT, UNUT, U
-
5J10-22210-00-00 SHK/ABS ASSEMBLY, REARSHK/ABS ASSEMBLY, REAR
-
697313-10050-00 BOLT, HEXAGON (676)BOLT, HEXAGON (676)
-
795601-10100-00 NUT, UNUT, U
-
8J10-21411-00-00 BRACKET, ENG (NOT AVAILABLE)BRACKET, ENG (NOT AVAILABLE)
-
8J10-21411-01-00 BRACKET, ENG (NOT AVAILABLE) (J10-007705~)BRACKET, ENG (NOT AVAILABLE) (J10-007705~)
-
990106-10034-00 BOLT, DOME HEADBOLT, DOME HEAD
-
1092990-10100-00 WASHER, SPRINGWASHER, SPRING
-
1192990-10600-00 WASHER, PLATEWASHER, PLATE
-
12J10-21486-00-00 DAMPER 2DAMPER 2
-
1392990-10100-00 WASHER, SPRINGWASHER, SPRING
-
1495303-10600-00 NUTNUT
-
15J10-2219X-00-00 COVER (J10-007705~)COVER (J10-007705~)
-
16J10-77277-00-00 DAMPER, (NOT AVAILABLE) (J10-007705~)DAMPER, (NOT AVAILABLE) (J10-007705~)
-
17J10-77278-00-00 DAMPER, (NOT AVAILABLE) (J10-007705~)DAMPER, (NOT AVAILABLE) (J10-007705~)
