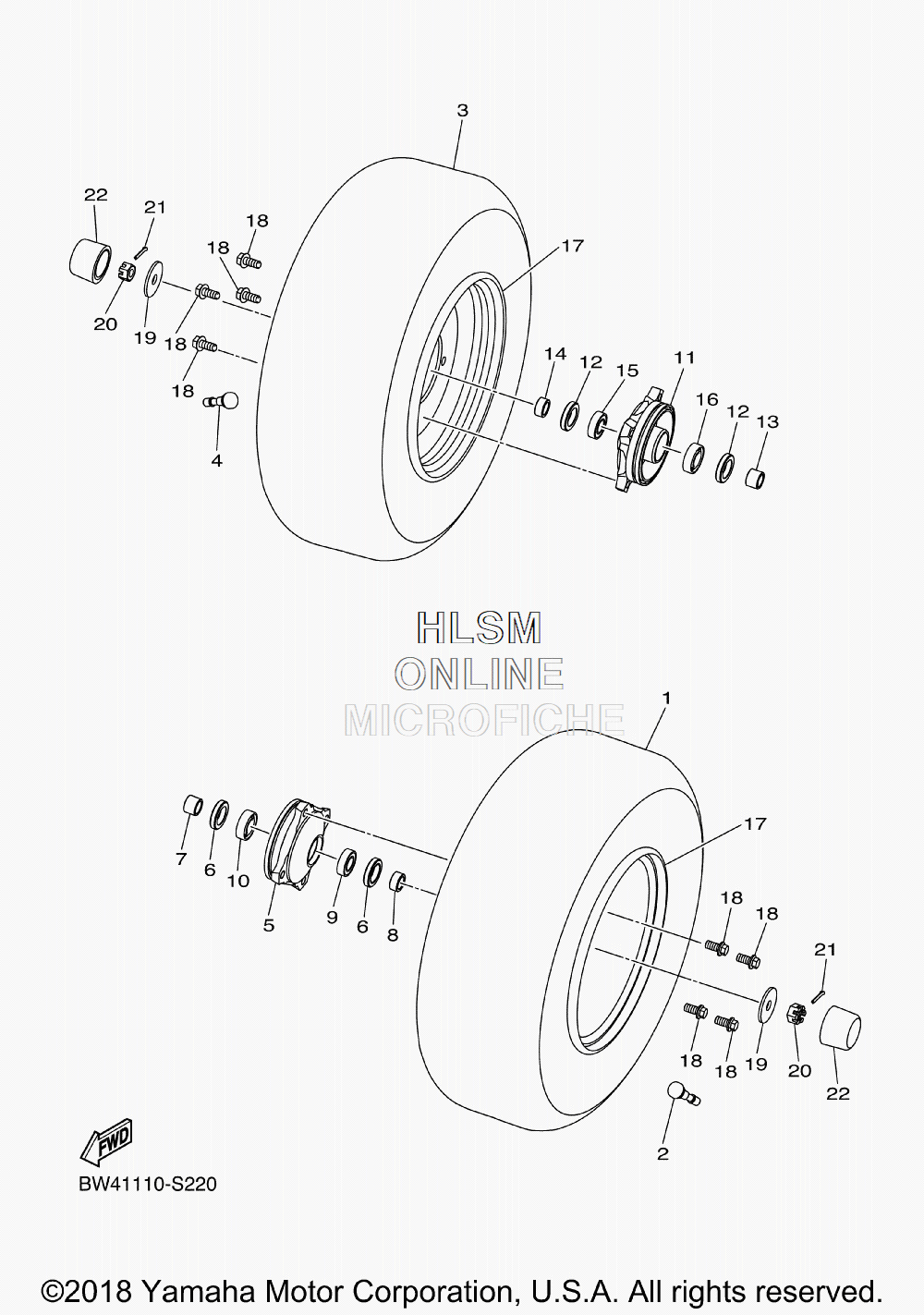

WHEEL - FRONT W/ AXLE ASSY для Yamaha YFZ50 - 2019 года выпуска`
-
№АртикулНазвание
-
1BW4-F510S-00-00 TIRE (LEFT)TIRE (LEFT)
-
2BD3-F5170-00-00 AIR VALVE ASSYAIR VALVE ASSY
-
3BW4-F510S-00-00 TIRE (RIGHT)TIRE (RIGHT)
-
4BD3-F5170-00-00 AIR VALVE ASSYAIR VALVE ASSY
-
5BD3-F5111-10-00 HUB, FRONTHUB, FRONT
-
6BD3-F511B-00-00 SEAL, OILSEAL, OIL
-
7BD3-F5117-10-00 SPACER, BEARING (LEFT)SPACER, BEARING (LEFT)
-
8BD3-F5105-10-00 SPACERSPACER
-
9BD3-F51H1-10-00 BEARINGBEARING
-
10BD3-F51H2-10-00 BEARING 2BEARING 2
-
11BD3-F5111-10-00 HUB, FRONTHUB, FRONT
-
12BD3-F511B-00-00 SEAL, OILSEAL, OIL
-
13BD3-F5117-10-00 SPACER, BEARING (RIGHT)SPACER, BEARING (RIGHT)
-
14BD3-F5105-10-00 SPACERSPACER
-
15BD3-F51H1-10-00 BEARINGBEARING
-
16BD3-F51H2-10-00 BEARING 2BEARING 2
-
17BW4-F5180-00-00 WHEEL COMP.WHEEL COMP.
-
18BD3-F4592-10-00 BOLTBOLT
-
19BW4-F2245-00-00 WASHER 3WASHER 3
-
20BD3-F1293-10-00 NUTNUT
-
21BD3-F112N-10-00 PINPIN
-
22BD3-F512A-00-00 CAP, WHEELCAP, WHEEL
