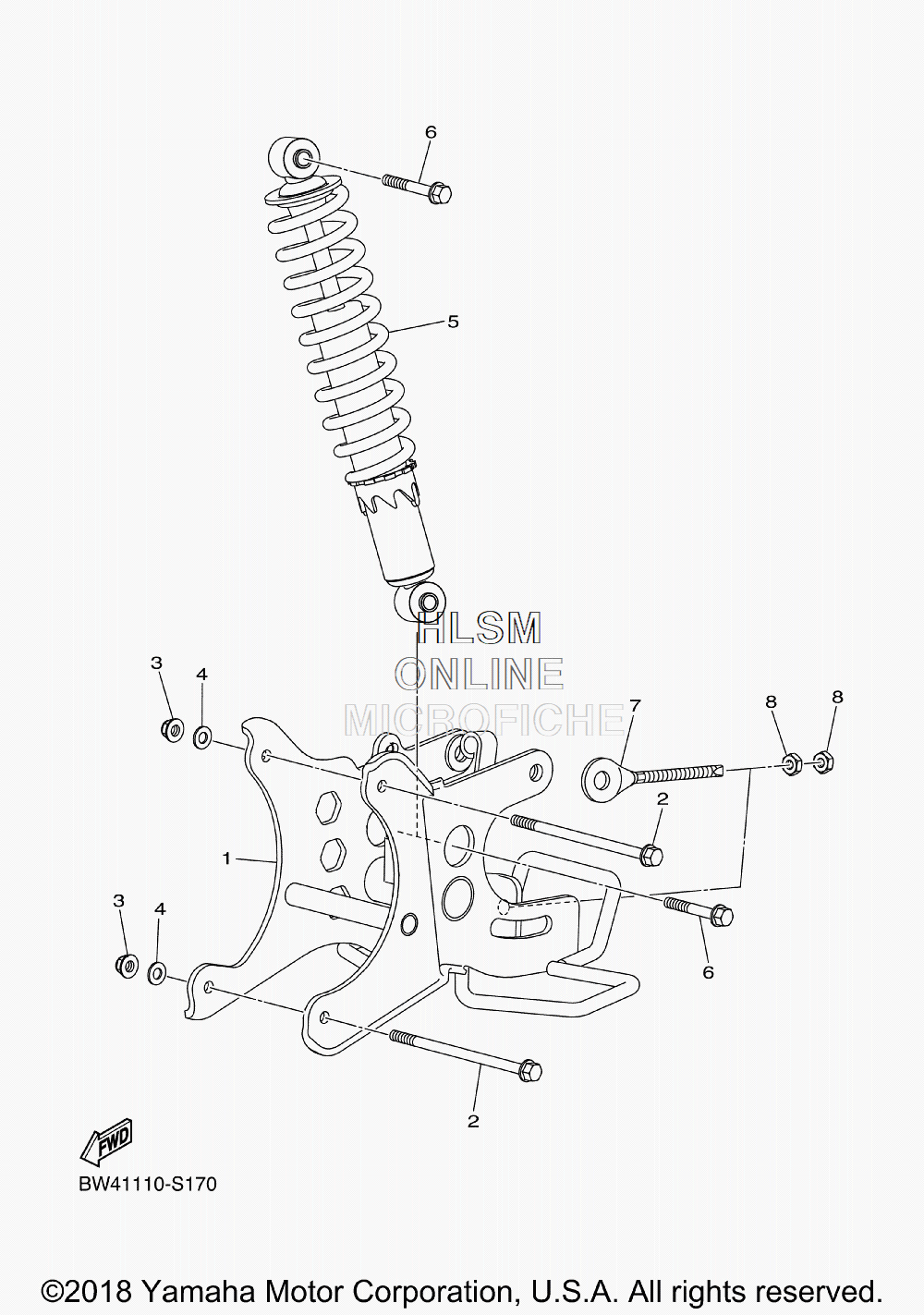

SUSPENSION - REAR ARM для Yamaha YFZ50 - 2019 года выпуска`
-
№АртикулНазвание
-
1BW4-F2110-00-00 REAR ARM COMP.REAR ARM COMP.
-
2BW4-F1722-00-00 BOLT 2BOLT 2
-
3BW4-F1535-00-00 NUT 1NUT 1
-
4BD3-E5615-10-00 WASHERWASHER
-
5BW4-F2210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
6BD3-F4834-10-00 BOLTBOLT
-
7BD3-F5388-10-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
8BD3-F1536-10-00 NUT 2NUT 2
