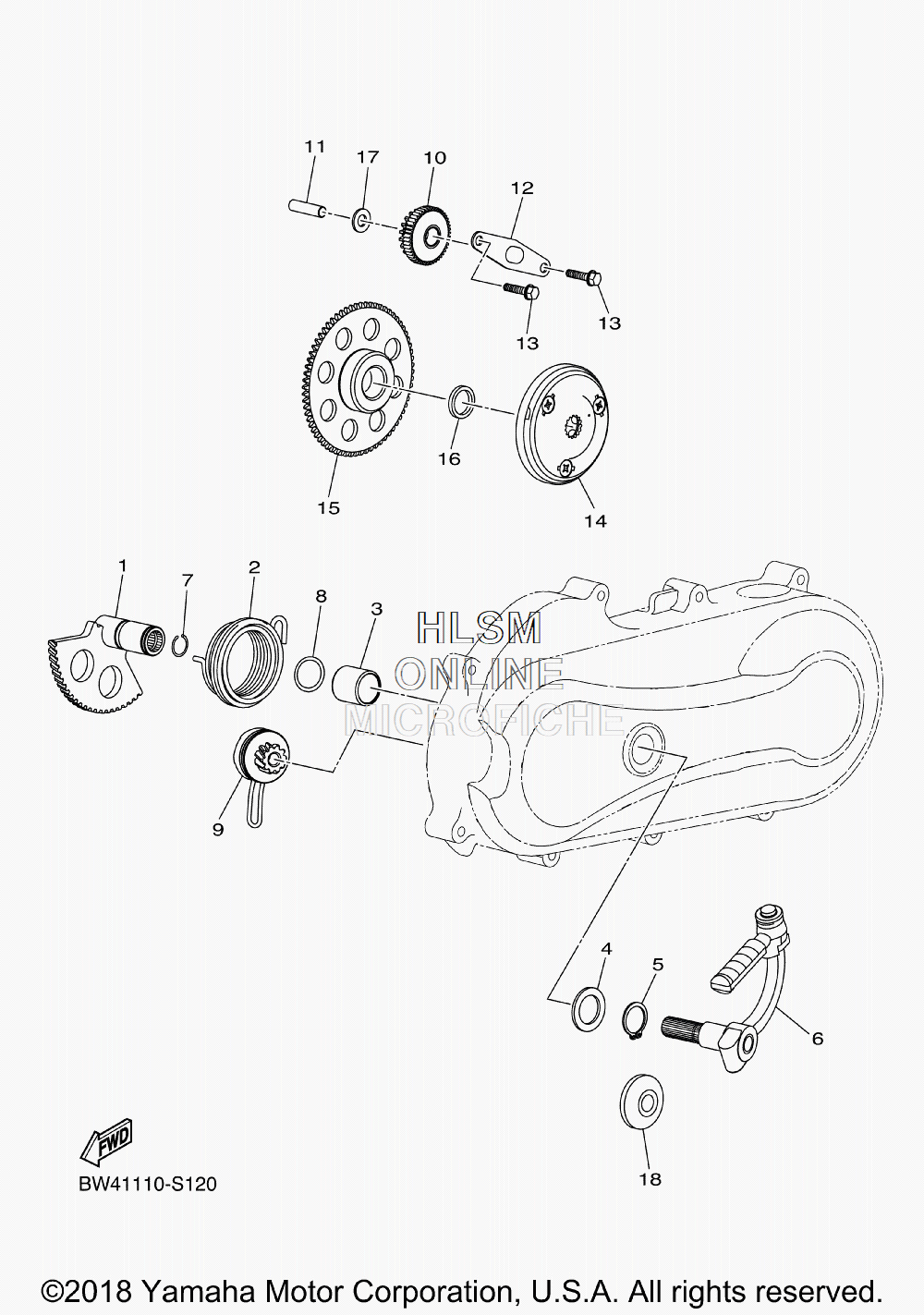

STARTER - RECOIL для Yamaha YFZ50 - 2019 года выпуска`
-
№АртикулНазвание
-
1BD3-E5600-10-00 KICK SHAFT UNIT ASSYKICK SHAFT UNIT ASSY
-
2BD3-E5665-00-00 SPRING, KICKSPRING, KICK
-
3BD3-E5677-00-00 BOSS, KICK AXLEBOSS, KICK AXLE
-
4BD3-E2456-10-00 WASHERWASHER
-
5BD3-E662A-00-00 CIRCLIPCIRCLIP
-
6BW4-E5620-00-00 KICK CRANK ASSYKICK CRANK ASSY
-
7BD3-E5597-00-00 CIRCLIP 2CIRCLIP 2
-
8BD3-E3016-00-00 O-RINGO-RING
-
9BD3-E5670-00-00 KICK PINION ASSY 2KICK PINION ASSY 2
-
10BD3-E5512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
11BD3-E5521-00-00 SHAFT 1SHAFT 1
-
12BD3-E5532-00-00 PLATE, IDLE GEARPLATE, IDLE GEAR
-
13BD3-G1228-10-00 BOLTBOLT
-
14BD3-E5524-10-00 WHEEL, STARTERWHEEL, STARTER
-
15BD3-E5570-00-00 STARTER CLUTCH ASSYSTARTER CLUTCH ASSY
-
16BD3-E5613-10-00 WASHERWASHER
-
17BD3-E5615-10-00 WASHERWASHER
-
18BD3-E5681-00-00 PLUG, BLINDPLUG, BLIND
