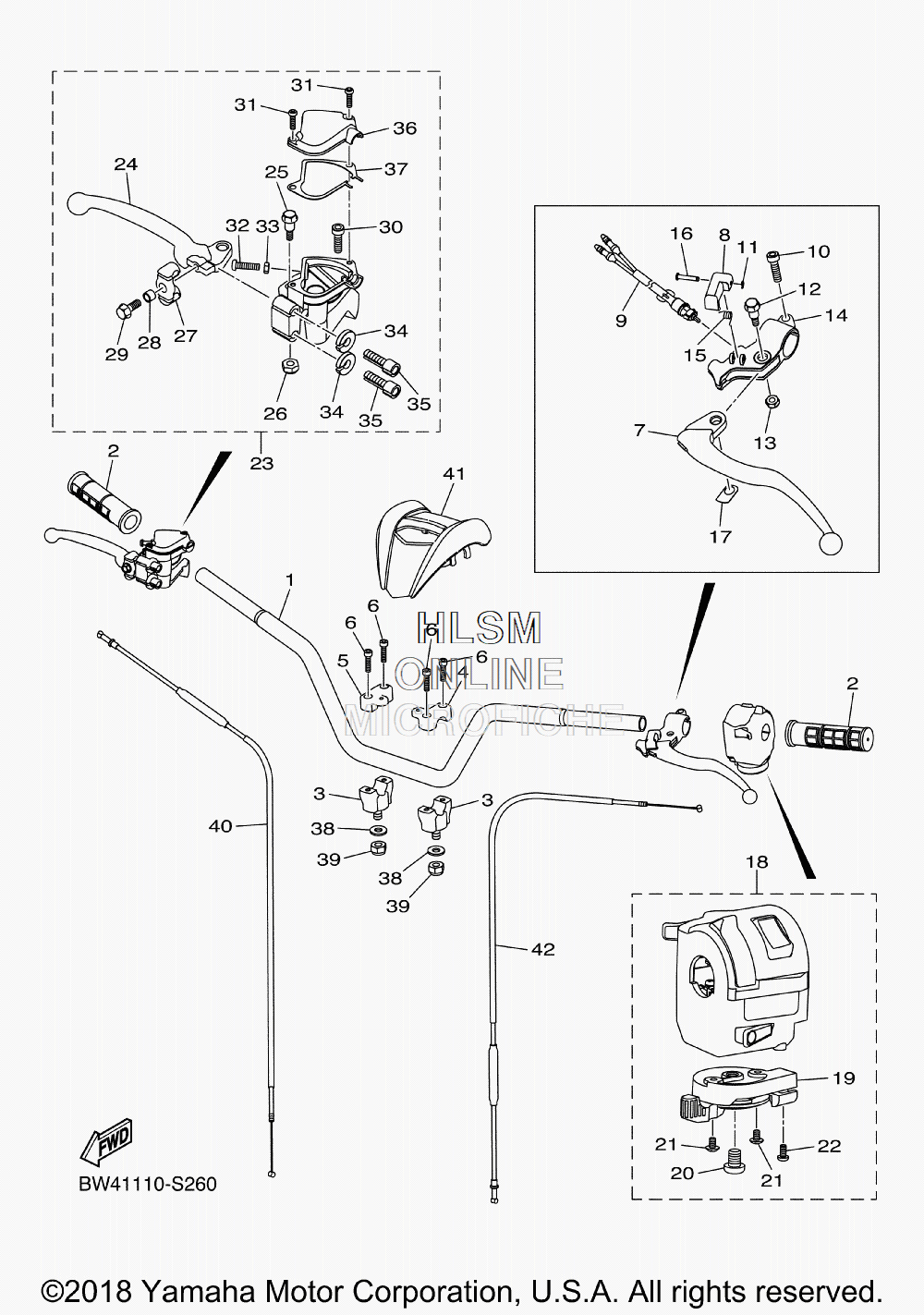

HANDLEBAR W/ CABLES для Yamaha YFZ50 - 2019 года выпуска`
-
№АртикулНазвание
-
1BW4-F6111-00-00 HANDLEBARHANDLEBAR
-
2BW4-F6241-00-00 GRIPGRIP
-
3BD3-F3442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
4BD3-F3441-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
5BD3-F344A-00-00 HOLDER, HANDLE UPPER 1HOLDER, HANDLE UPPER 1
-
6BD3-F7434-10-00 BOLTBOLT
-
7BW4-H3912-00-00 LEVER 1LEVER 1
-
8BW4-H3965-00-00 LEVER, LOCKLEVER, LOCK
-
9BW4-H2551-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
10BD3-F3471-00-00 BOLTBOLT
-
11BD3-F6466-00-00 RING, SNAPRING, SNAP
-
12BD3-F2277-00-00 BOLTBOLT
-
13BD3-F3833-00-00 NUT 1NUT 1
-
14BD3-H2911-00-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
15BD3-H3966-00-00 SPRING, RETURNSPRING, RETURN
-
16BD3-H3967-00-00 PIN, LOCK 1PIN, LOCK 1
-
17BD3-F3444-00-00 WASHERWASHER
-
18BW4-H3975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
19BD3-H3941-00-00 ...LEVER, STARTER...LEVER, STARTER
-
20BD3-F3753-00-00 ...BOLT...BOLT
-
21BW4-F1531-00-00 ...BOLT...BOLT
-
22BD3-F1532-00-00 ...BOLT 2...BOLT 2
-
23BW4-F6250-00-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
24BW4-H3922-00-00 ...LEVER 2...LEVER 2
-
25BD3-F1739-00-00 ...BOLT...BOLT
-
26BD3-F3833-00-00 ...NUT 1...NUT 1
-
27BD3-F6347-00-00 ...JOINT, CABLE...JOINT, CABLE
-
28BD3-F7213-00-00 ...COLLAR...COLLAR
-
29BD3-F6382-00-00 ...BOLT, AJUSTING...BOLT, AJUSTING
-
30BD3-F3471-00-00 ...BOLT...BOLT
-
31BD3-H1145-00-00 ...SCREW 1...SCREW 1
-
32BW4-F6337-10-00 ...BOLT, ADJUSTING...BOLT, ADJUSTING
-
33BD3-F3357-00-00 ...NUT...NUT
-
34BD3-F1968-00-00 ...NUT...NUT
-
35BD3-F3346-00-00 ...BOLT 1...BOLT 1
-
36BD3-F628F-00-00 ...CAP, GEAR...CAP, GEAR
-
37BD3-F628G-00-00 ...GASKET...GASKET
-
38BW4-F3779-00-00 WASHERWASHER
-
39BD3-F2252-10-00 NUTNUT
-
40BW4-F6311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
41BD3-F6124-10-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
42BW4-F6331-00-00 CABLE, STARTER 1CABLE, STARTER 1
