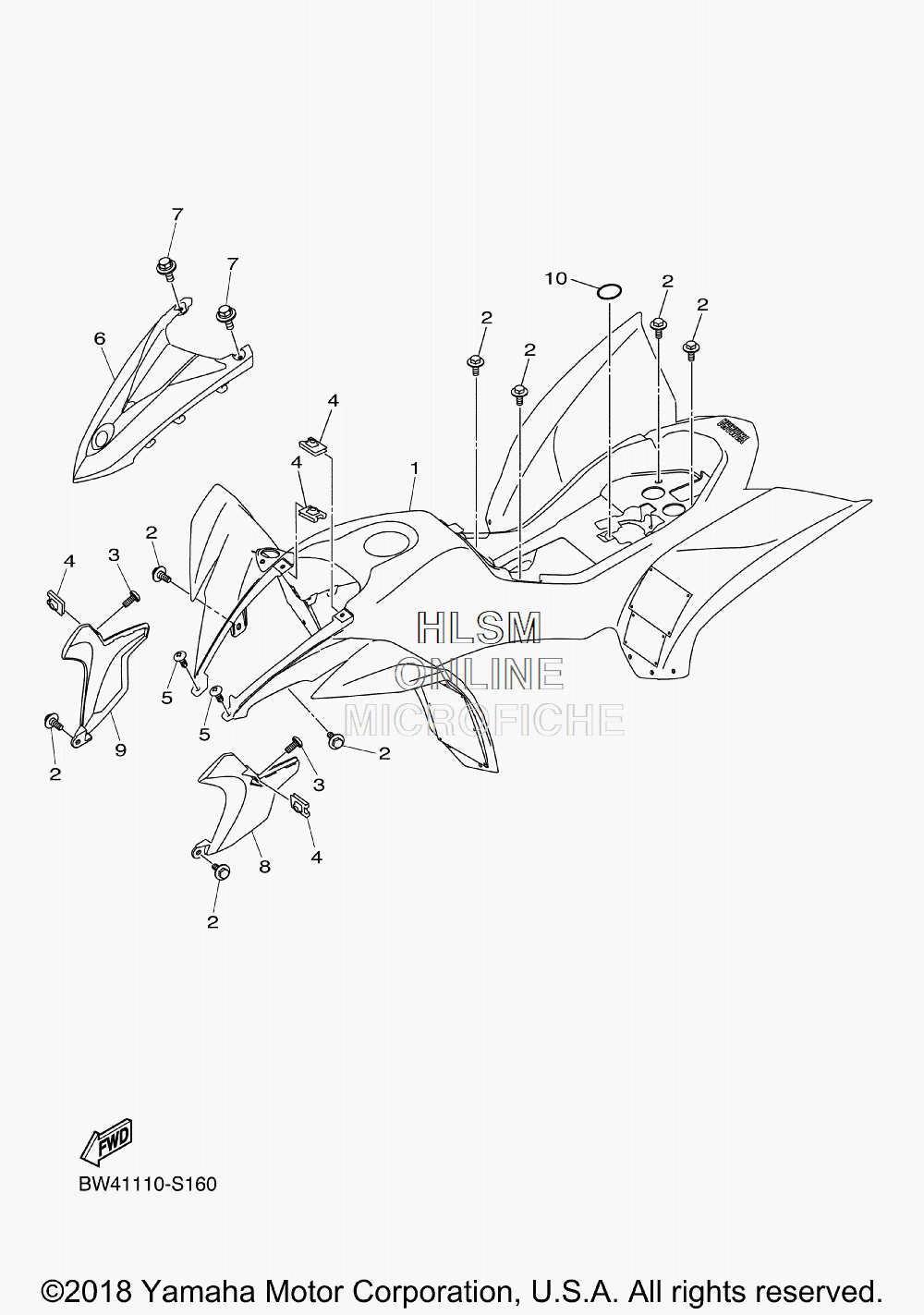

FENDERS - FRONT AND REAR для Yamaha YFZ50 - 2019 года выпуска`
-
№АртикулНазвание
-
1BW4-F1500-00-00 FRONT FENDER ASSY (BWS1 - BLUISH WHITE)FRONT FENDER ASSY (BWS1 - BLUISH WHITE)
-
1BW4-F1500-40-00 FRONT FENDER ASSY (DPBSE - PURPLISH BLUE)FRONT FENDER ASSY (DPBSE - PURPLISH BLUE)
-
2BD3-F1632-10-00 BOLT 2BOLT 2
-
3BW4-F1632-00-00 BOLT 2BOLT 2
-
4BD3-F4149-10-00 NUTNUT
-
5BW4-H4726-00-00 SCREWSCREW
-
6BW4-F3391-10-00 PANEL, FRONT (DPBSE - PURPLISH BLUE)PANEL, FRONT (DPBSE - PURPLISH BLUE)
-
6BW4-F3391-20-00 PANEL, FRONT (BWS1 - BLUISH WHITE)PANEL, FRONT (BWS1 - BLUISH WHITE)
-
7BD3-F3356-10-00 BOLT 2BOLT 2
-
8BW4-F1731-10-00 COVER, SIDE 3 (DPBSE - PURPLISH BLUE)COVER, SIDE 3 (DPBSE - PURPLISH BLUE)
-
8BW4-F1731-20-00 COVER, SIDE 3 (BWS1 - BLUISH WHITE)COVER, SIDE 3 (BWS1 - BLUISH WHITE)
-
9BW4-F1741-20-00 COVER, SIDE 4 (BWS1 - BLUISH WHITE)COVER, SIDE 4 (BWS1 - BLUISH WHITE)
-
9BW4-F1741-10-00 COVER, SIDE 4 (DPBSE - PURPLISH BLUE)COVER, SIDE 4 (DPBSE - PURPLISH BLUE)
-
10BD3-F4648-00-00 O-RINGO-RING
