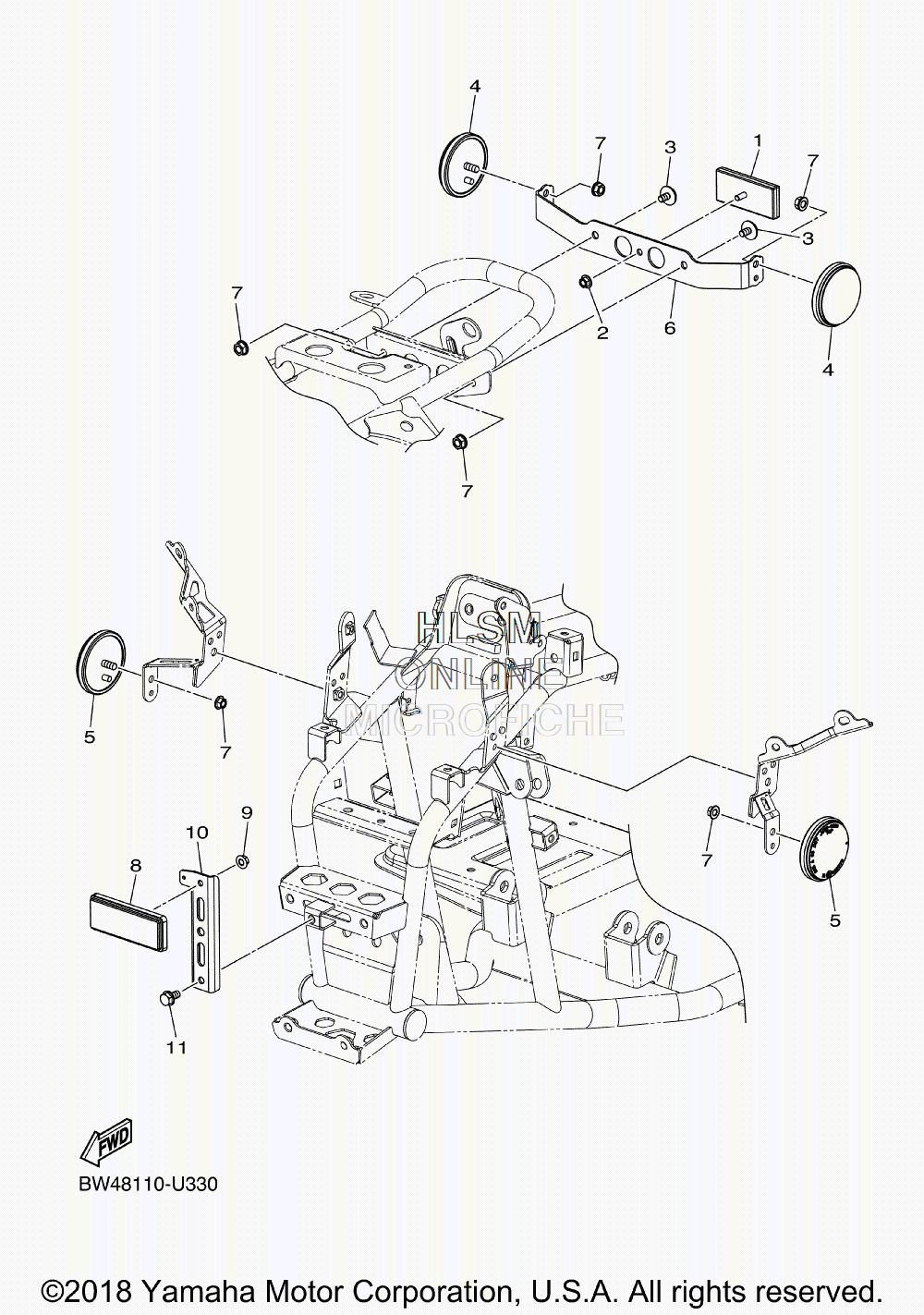

ELECTRICAL 2 для Yamaha YFZ50 - 2019 года выпуска`
-
№АртикулНазвание
-
1BD3-H5130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
2BD3-F1244-10-00 NUTNUT
-
3BD3-F8333-10-00 BOLTBOLT
-
4BD3-H5111-00-00 REFLECTOR, FRONT 1REFLECTOR, FRONT 1
-
5BD3-H5121-00-00 REFLECTOR, FRONT 2REFLECTOR, FRONT 2
-
6BD3-F8357-00-00 STAY 2STAY 2
-
7BD3-F1494-10-00 NUTNUT
-
8BD3-H5141-00-00 REFLECTOR, REAR 2REFLECTOR, REAR 2
-
9BD3-F1244-10-00 NUTNUT
-
10BW4-H454L-00-00 BRACKETBRACKET
-
11BD3-F8331-10-00 BOLT, LEG SHIELDBOLT, LEG SHIELD
