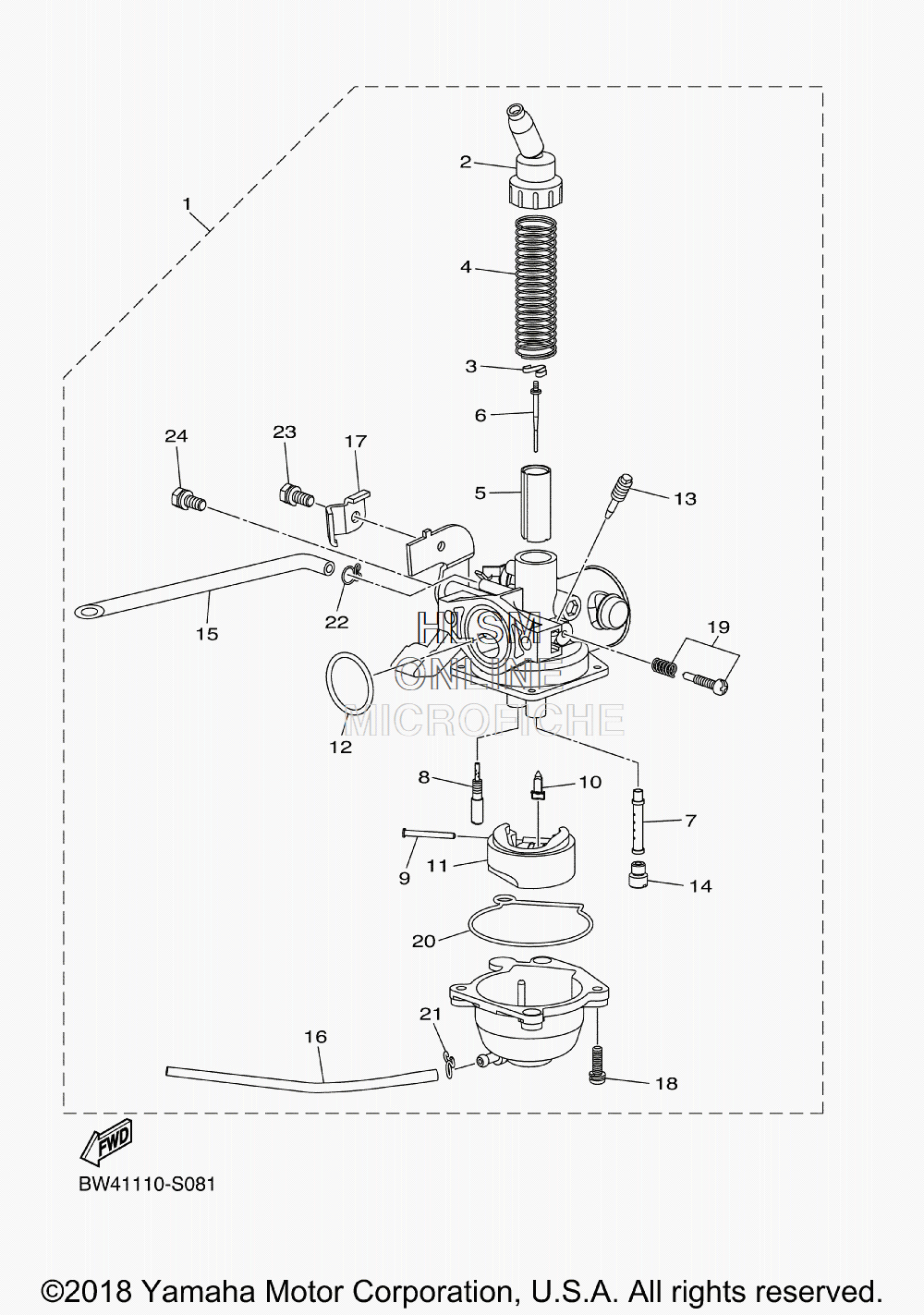

CARBURETOR для Yamaha YFZ50 - 2019 года выпуска`
-
№АртикулНазвание
-
1BW4-E4101-01-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
2BW4-E439D-00-00 ...CAP, MIXING CHAMBER...CAP, MIXING CHAMBER
-
3BW4-E439G-00-00 ...CLIP 1...CLIP 1
-
4BW4-E4331-00-00 ...SPRING, THROTTLE VALVE...SPRING, THROTTLE VALVE
-
5BW4-E3731-00-00 ...VALVE, THROTTLE...VALVE, THROTTLE
-
6BW4-E4150-00-00 ...NEEDLE ASSY...NEEDLE ASSY
-
7BW4-E414G-00-00 ...PIPE, MAIN BLEED...PIPE, MAIN BLEED
-
8BW4-E4942-00-00 ...JET, PILOT...JET, PILOT
-
9BW4-E4386-00-00 ...PIN, FLOAT...PIN, FLOAT
-
10BW4-E4392-00-00 ...VALVE, NEEDLE...VALVE, NEEDLE
-
11BW4-E4385-00-00 ...FLOAT...FLOAT
-
12BD3-E4397-00-00 ...O-RING...O-RING
-
13BW4-E4123-10-00 ...SCREW, AIR ADJUSTING...SCREW, AIR ADJUSTING
-
14BW4-E415A-00-00 ...JET, MAIN...JET, MAIN
-
15BW4-E4348-00-00 ...PIPE 1...PIPE 1
-
16BW4-E4349-00-00 ...PIPE...PIPE
-
17BW4-E4581-00-00 ...BRACKET...BRACKET
-
18BD3-E4325-00-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
19BW4-E4521-00-00 ...SCREW, ADJUST...SCREW, ADJUST
-
20BW4-E4384-00-00 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
21BD3-E439H-10-00 ...CLIP 2...CLIP 2
-
22BW4-E449C-00-00 ...CLIP 1...CLIP 1
-
23BW4-E4216-00-00 ...SCREW...SCREW
-
24BW4-E4592-00-00 ...SCREW...SCREW
