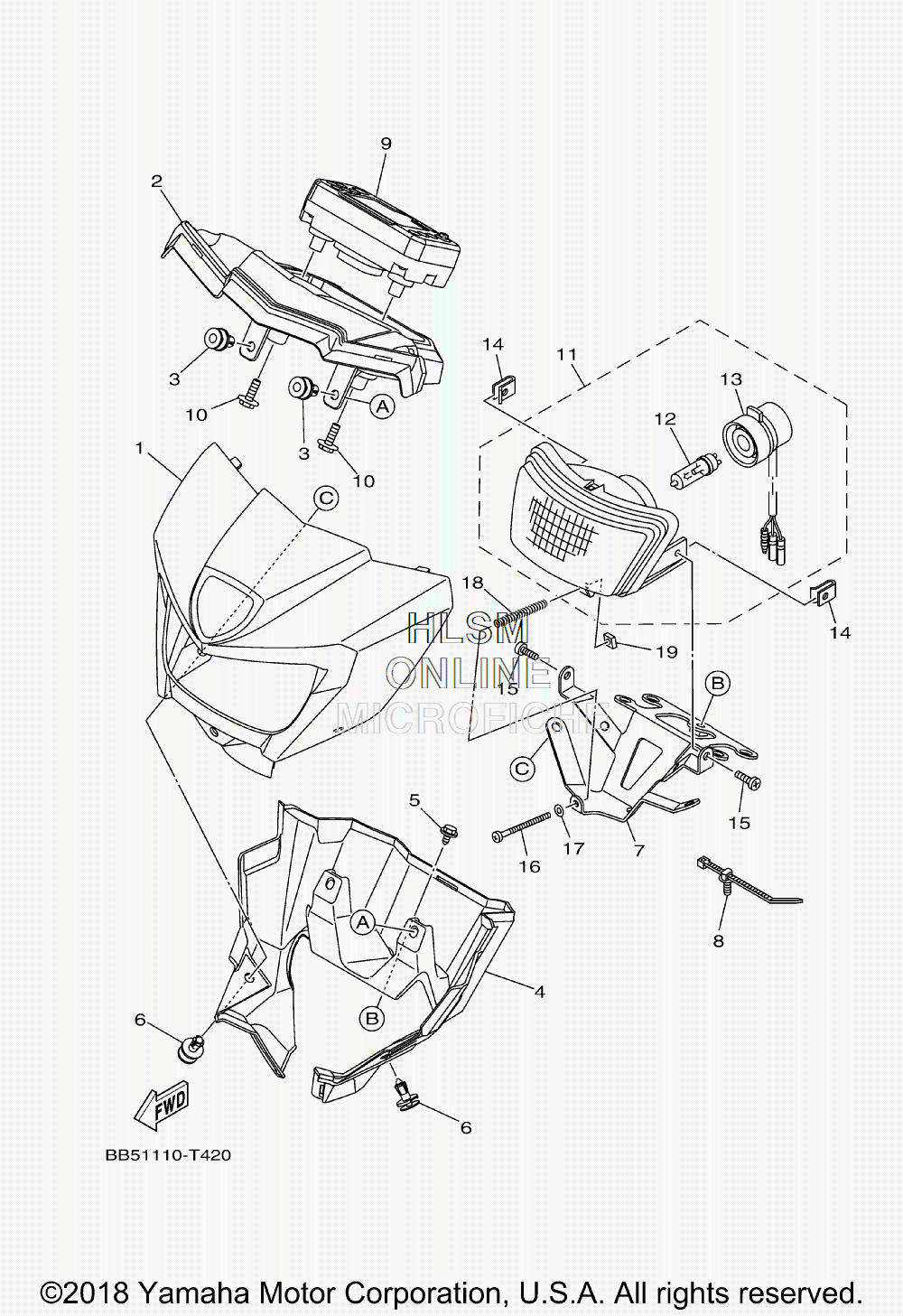

HEADLIGHT 2 для Yamaha KODIAK 450 EPS 4WD (DARK BLUE) - 2019 года выпуска`
-
№АртикулНазвание
-
1B4F-H252L-00-00 COVER COMP.COVER COMP.
-
2BB5-H3559-00-00 COVER, METERCOVER, METER
-
390269-07010-00 RIVETRIVET
-
4BB5-F6143-00-00 COVER, HANDLE UPPER 1COVER, HANDLE UPPER 1
-
590119-06079-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690269-07010-00 RIVETRIVET
-
72SM-F6292-00-00 STAYSTAY
-
81NS-F1338-00-00 CLAMPCLAMP
-
9BB5-83500-00-00 METER ASSYMETER ASSY
-
1090163-05006-00 SCREW, TAPPINGSCREW, TAPPING
-
112PA-84300-00-00 HEADLIGHT ASSYHEADLIGHT ASSY
-
125VM-84314-00-00 ...BULB, HEADLIGHT(12V-35/36.5W) (HALOGEN)...BULB, HEADLIGHT(12V-35/36.5W) (HALOGEN)
-
132PA-84340-00-00 ...SOCKET CORD ASSY 1...SOCKET CORD ASSY 1
-
145VM-84117-00-00 NUTNUT
-
1598502-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
165BF-8433E-00-00 SCREW, ADJUSTINGSCREW, ADJUSTING
-
1792902-04600-00 WASHER, PLATEWASHER, PLATE
-
1890501-100A3-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
195VM-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
