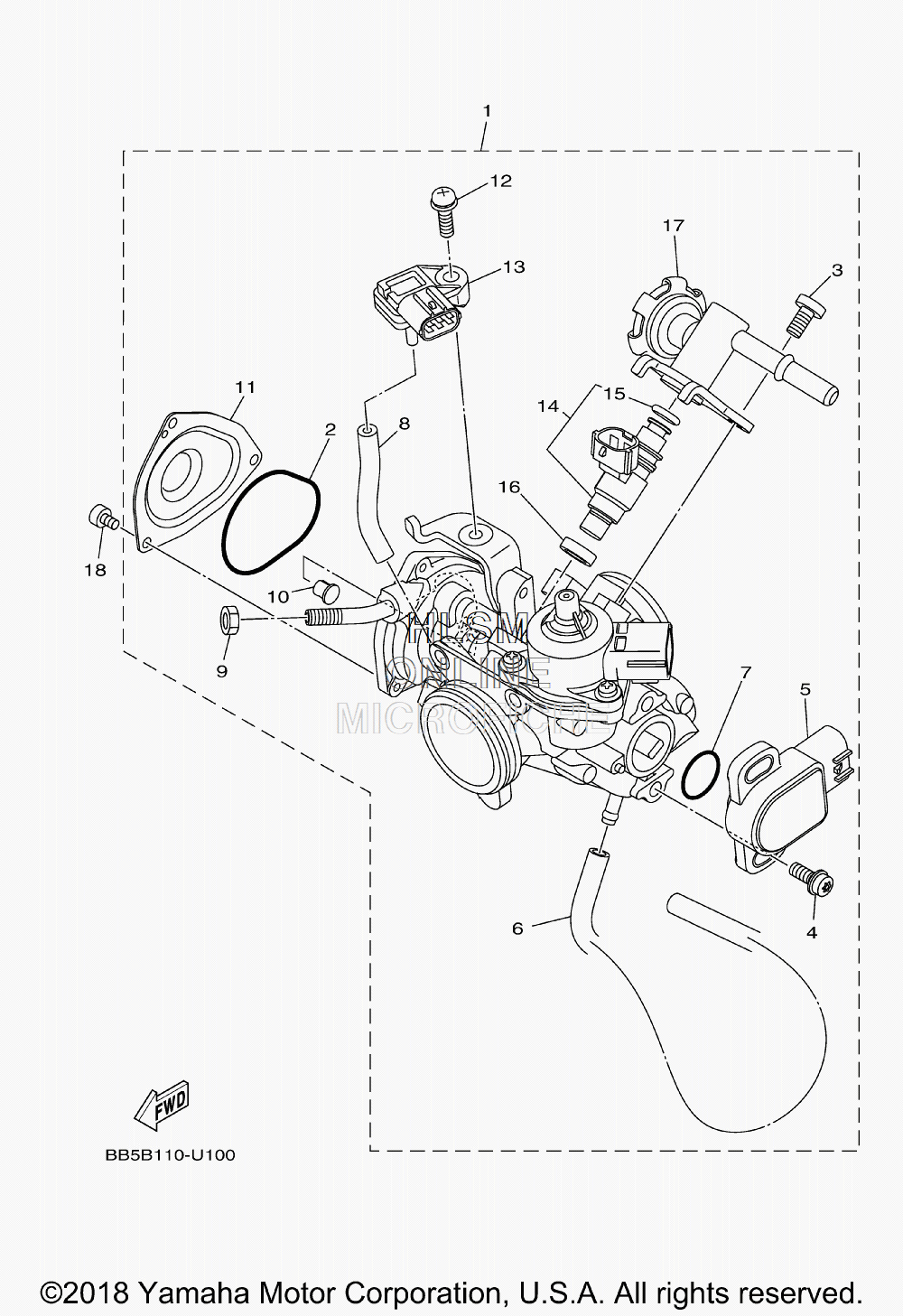

THROTTLE BODY ASSY. для Yamaha KODIAK 450 4WD HUNTER - 2019 года выпуска`
-
№АртикулНазвание
-
1BB5-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
25LP-14147-00-00 ...O-RING...O-RING
-
392502-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
48CC-14216-10-00 ...SCREW...SCREW
-
53B4-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
6BB5-13543-00-00 ...HOSE, AIR...HOSE, AIR
-
75YP-14562-00-00 ...O-RING...O-RING
-
85PS-14987-00-00 ...HOSE...HOSE
-
91S3-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
101UY-14155-00-00 ...GUIDE, CABLE...GUIDE, CABLE
-
111S3-14293-00-00 ...COVER 1...COVER 1
-
122C0-14216-00-00 ...SCREW...SCREW
-
131WS-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
14BB5-13761-00-00 ...INJECTOR...INJECTOR
-
155PS-14147-00-00 ......O-RING......O-RING
-
168FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
17BB5-13160-00-00 ...DELIVERY PIPE ASSY 1...DELIVERY PIPE ASSY 1
-
1891312-04006-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
