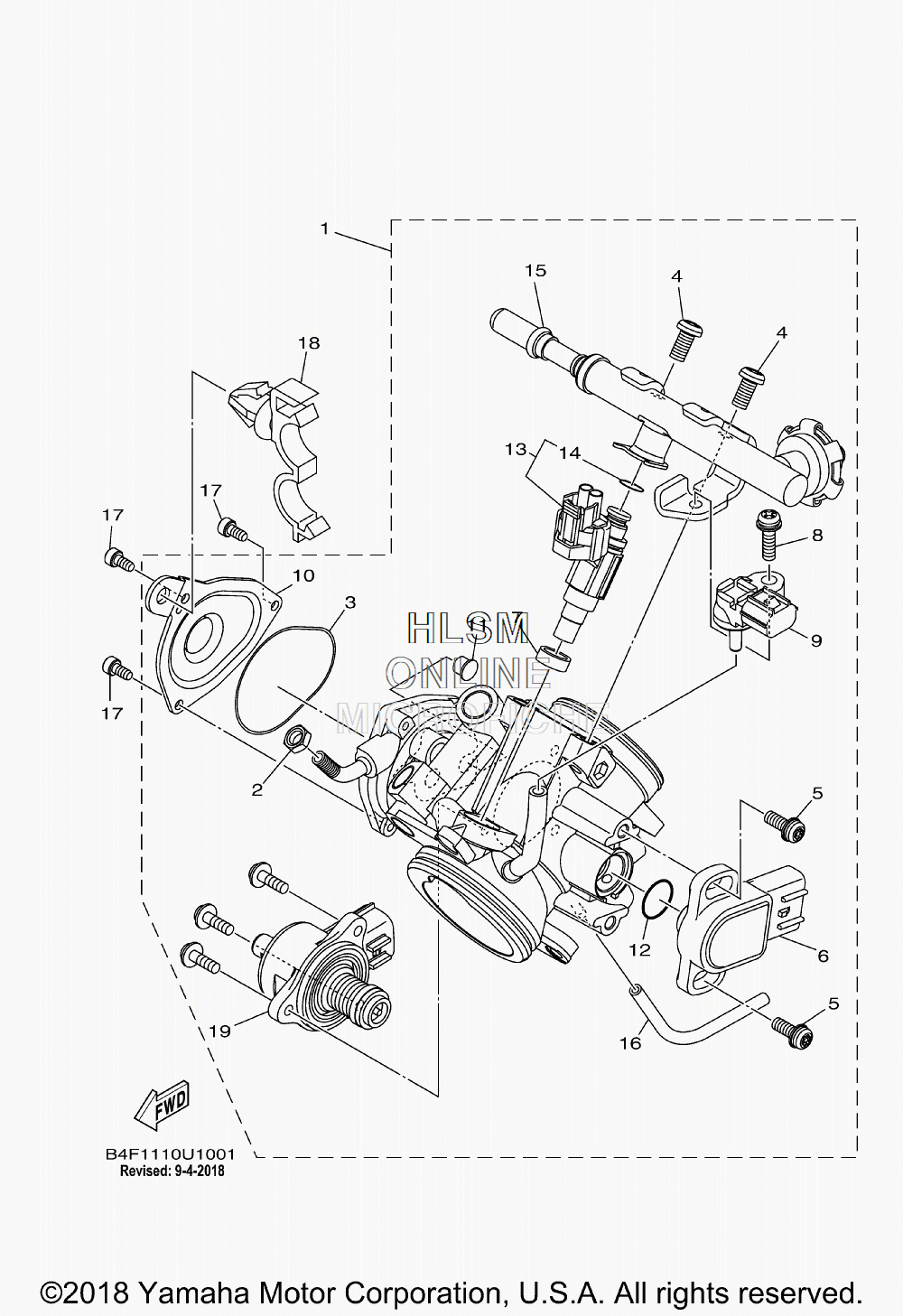

THROTTLE BODY ASSY. для Yamaha GRIZZLY EPS 4WD - 2019 года выпуска
-
№АртикулНазвание
-
1B4F-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
21S3-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
35LP-14147-00-00 ...O-RING...O-RING
-
492502-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
58CC-14216-10-00 ...SCREW...SCREW
-
63B4-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
78FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
82C0-14216-00-00 ...SCREW...SCREW
-
95S7-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
10B16-14293-00-00 ...COVER 1...COVER 1
-
111UY-14155-00-00 ...GUIDE, CABLE...GUIDE, CABLE
-
125YP-14562-00-00 ...O-RING...O-RING
-
131XD-13761-00-00 ...INJECTOR...INJECTOR
-
141XD-14147-00-00 ......O-RING......O-RING
-
15B16-13160-00-00 ...DELIVERY PIPE ASSY 1...DELIVERY PIPE ASSY 1
-
161XD-13543-00-00 ...HOSE, AIR...HOSE, AIR
-
1791312-04008-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1890464-20010-00 CLAMPCLAMP
-
1963P-1312A-01-00 VALVE, CONTROLVALVE, CONTROL
