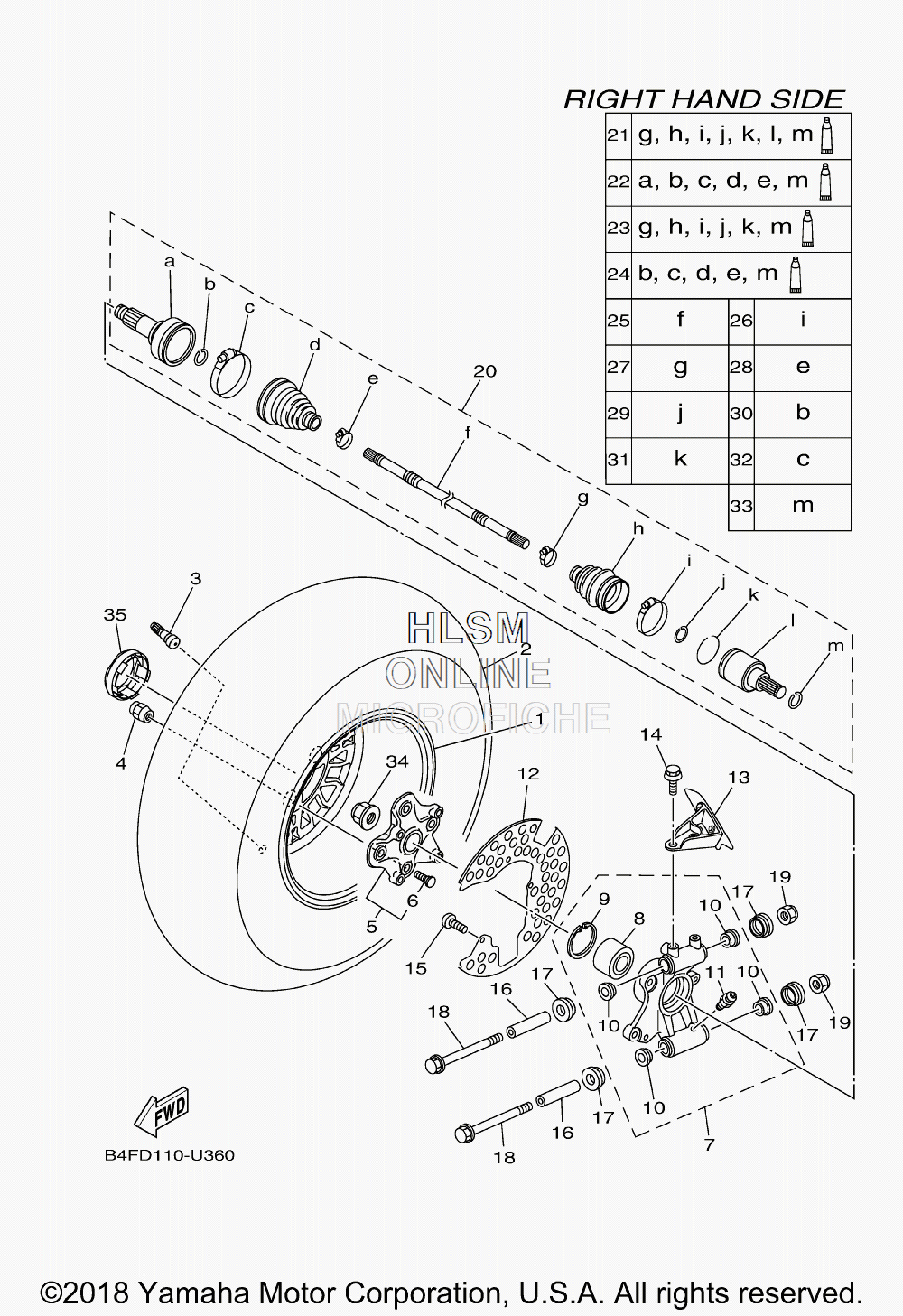

WHEEL - REAR RIGHT SIDE W/ AXLE ASSY для Yamaha GRIZZLY EPS 4WD HUNTER - 2019 года выпуска`
-
№АртикулНазвание
-
1B32-F5338-00-00 CAST WHEEL, REARCAST WHEEL, REAR
-
294110-12819-00 TIRE (AT26X10-12 MU06Y TL) (MAXXIS)TIRE (AT26X10-12 MU06Y TL) (MAXXIS)
-
393900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
490179-10032-00 NUTNUT
-
5B16-F510D-01-00 HUB ASSY 2HUB ASSY 2
-
690114-10014-00 ...BOLT, SERRATION...BOLT, SERRATION
-
72BG-F532F-01-00 REAR KNUCKLE ASSY 2REAR KNUCKLE ASSY 2
-
893305-00602-00 ...BEARING...BEARING
-
999009-55500-00 ...CIRCLIP...CIRCLIP
-
1090381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
1193700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
12BB5-F514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
131HP-F539G-00-00 PLATE 2PLATE 2
-
1490109-06840-00 BOLTBOLT
-
1598902-06010-00 SCREW, BINDSCREW, BIND
-
165KM-23448-00-00 SPACERSPACER
-
172NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1890105-10212-00 BOLT, FLANGEBOLT, FLANGE
-
1990185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
202UD-2531H-00-00 REAR DRIVE SHAFT ASSYREAR DRIVE SHAFT ASSY
-
21B16-2530V-00-00 ...DOUBLE OFF SET JOINT...DOUBLE OFF SET JOINT
-
2228P-2510F-03-00 ...BALL JOINT SET...BALL JOINT SET
-
23B16-2510H-00-00 ...BOOT SET(DOUBLE OFFSET JOINT)...BOOT SET(DOUBLE OFFSET JOINT)
-
2428P-2510G-01-00 ...BOOT SET (BALL JOINT)...BOOT SET (BALL JOINT)
-
252UD-2518E-10-00 ...SHAFT...SHAFT
-
26B16-2511H-00-00 ...BOOT BAND(DOUBLE OFFSET JOINT)...BOOT BAND(DOUBLE OFFSET JOINT)
-
27B16-2512G-00-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
2828P-2512G-00-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
29B16-2512J-00-00 ...SNAP RING...SNAP RING
-
303B4-2512H-00-00 ...CIRCLIP...CIRCLIP
-
31B16-25182-00-00 ...CIRCLIP...CIRCLIP
-
3228P-2511H-00-00 ...BOOT BAND(DOUBLE OFFSET JOINT)...BOOT BAND(DOUBLE OFFSET JOINT)
-
333B4-2536E-00-00 ...CLIP, SPRING...CLIP, SPRING
-
3490179-20016-00 NUTNUT
-
351RB-F530B-00-00 WHEEL CAP ASSYWHEEL CAP ASSY
