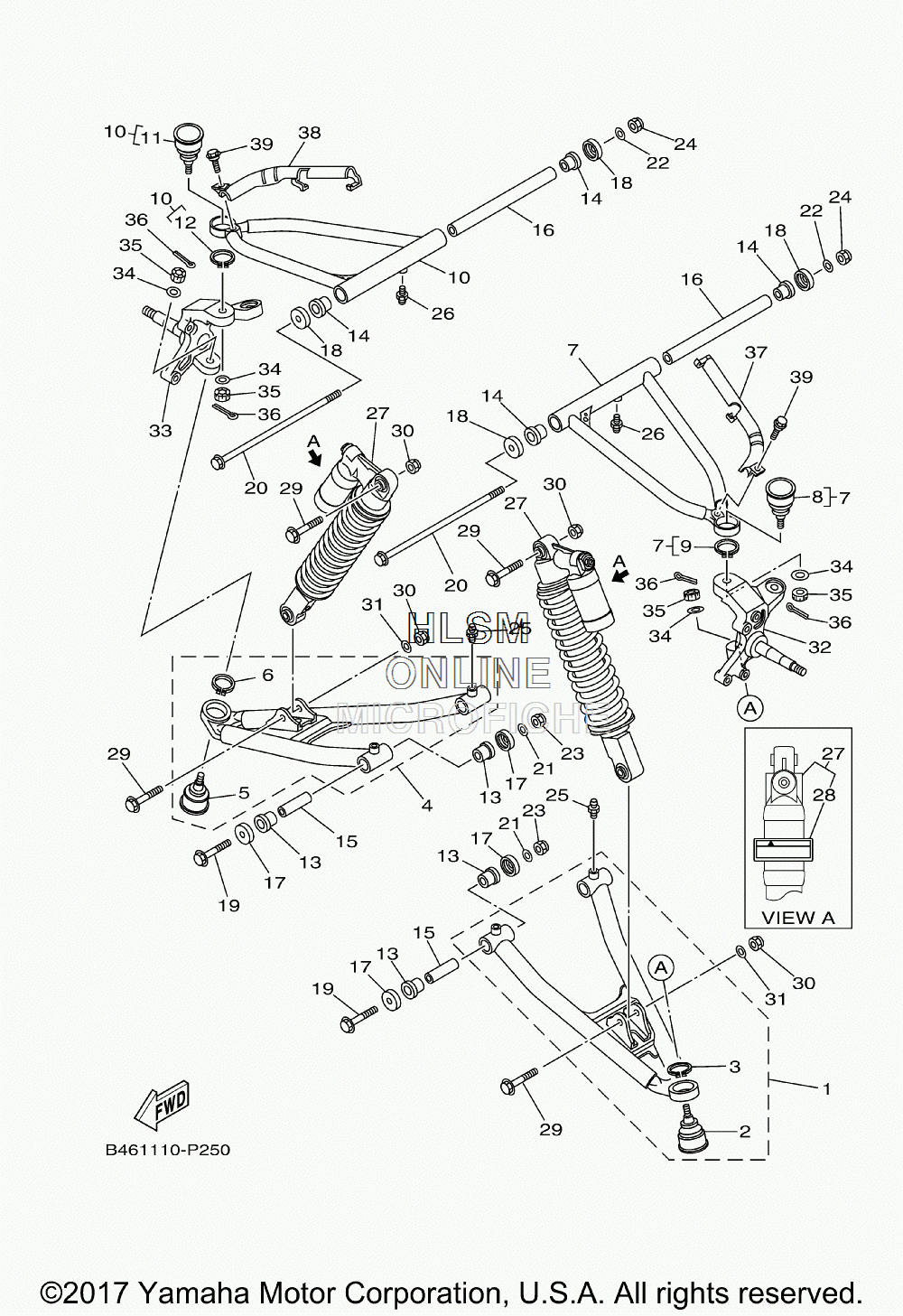

SUSPENSION - FRONT WHEEL для Yamaha RAPTOR 700R - 2018 года выпуска`
-
№АртикулНазвание
-
11PE-F3570-90-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
25LP-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
399009-30400-00 ...CIRCLIP...CIRCLIP
-
41PE-F3580-90-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
55LP-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
699009-30400-00 ...CIRCLIP...CIRCLIP
-
72LS-F3540-30-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
85LP-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
999009-30400-00 ...CIRCLIP...CIRCLIP
-
102LS-F3550-30-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
115LP-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
1299009-30400-00 ...CIRCLIP...CIRCLIP
-
1390381-15088-00 BUSH, SOLIDBUSH, SOLID
-
1490381-15088-00 BUSH, SOLIDBUSH, SOLID
-
1590387-101R3-00 COLLARCOLLAR
-
1690387-100Y6-00 COLLARCOLLAR
-
175YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
185YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1990105-10135-00 BOLT, FLANGEBOLT, FLANGE
-
2090105-10132-00 BOLT, FLANGEBOLT, FLANGE
-
2190201-10037-00 WASHER, PLATEWASHER, PLATE
-
2290201-10037-00 WASHER, PLATEWASHER, PLATE
-
2390185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2490185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2593700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
2693700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
27B46-F3390-30-00 SHOCK ABSORBER ASSY 2SHOCK ABSORBER ASSY 2
-
281HP-F2259-01-00 ...LABEL, WARNING...LABEL, WARNING
-
2990105-10131-00 BOLT, FLANGEBOLT, FLANGE
-
3090185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3190201-10035-00 WASHER, PLATEWASHER, PLATE
-
321S3-23501-01-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
331S3-23502-01-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
3490209-10229-00 WASHERWASHER
-
3590171-10001-00 NUT, CASTLENUT, CASTLE
-
3691402-20020-00 PIN, COTTERPIN, COTTER
-
372LS-F5875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
382LS-F5876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
3990109-06264-00 BOLTBOLT
