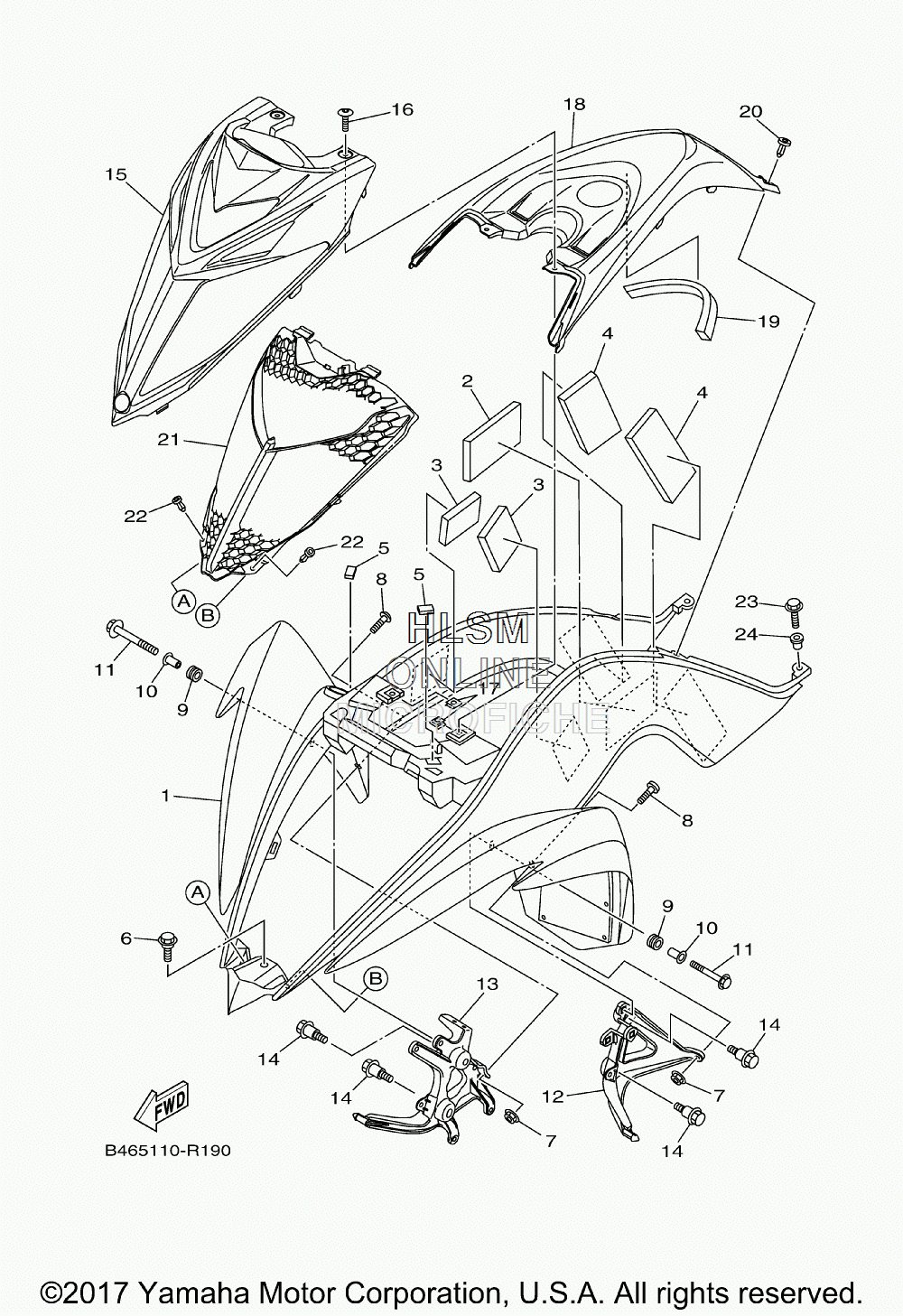

FENDER - FRONT для Yamaha RAPTOR 700 - 2018 года выпуска`
-
№АртикулНазвание
-
11PE-F1500-K0-00 FRONT FENDER ASSYFRONT FENDER ASSY
-
212R-21747-00-00 DAMPERDAMPER
-
31S3-21541-00-00 DAMPER 1DAMPER 1
-
43Y0-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
53B4-21541-00-00 DAMPER 1DAMPER 1
-
690109-06172-00 BOLTBOLT
-
795602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890111-06137-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
990480-14102-00 GROMMETGROMMET
-
1090387-06136-00 COLLARCOLLAR
-
1195812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
121PE-F1513-01-00 STAY, FENDER 1STAY, FENDER 1
-
131PE-F1514-01-00 STAY, FENDER 2STAY, FENDER 2
-
1490109-06214-00 BOLTBOLT
-
151PE-F3391-60-00 PANEL, FRONTPANEL, FRONT
-
1690111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1790183-06053-00 NUT, SPRINGNUT, SPRING
-
181PE-F171A-60-00 COVER, TOPCOVER, TOP
-
1990520-20001-00 DAMPER, PLATEDAMPER, PLATE
-
2090269-06002-00 RIVETRIVET
-
211PE-E2467-00-00 COVER, RADIATORCOVER, RADIATOR
-
2290269-06002-00 RIVETRIVET
-
2390105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
2490387-06146-00 COLLARCOLLAR
