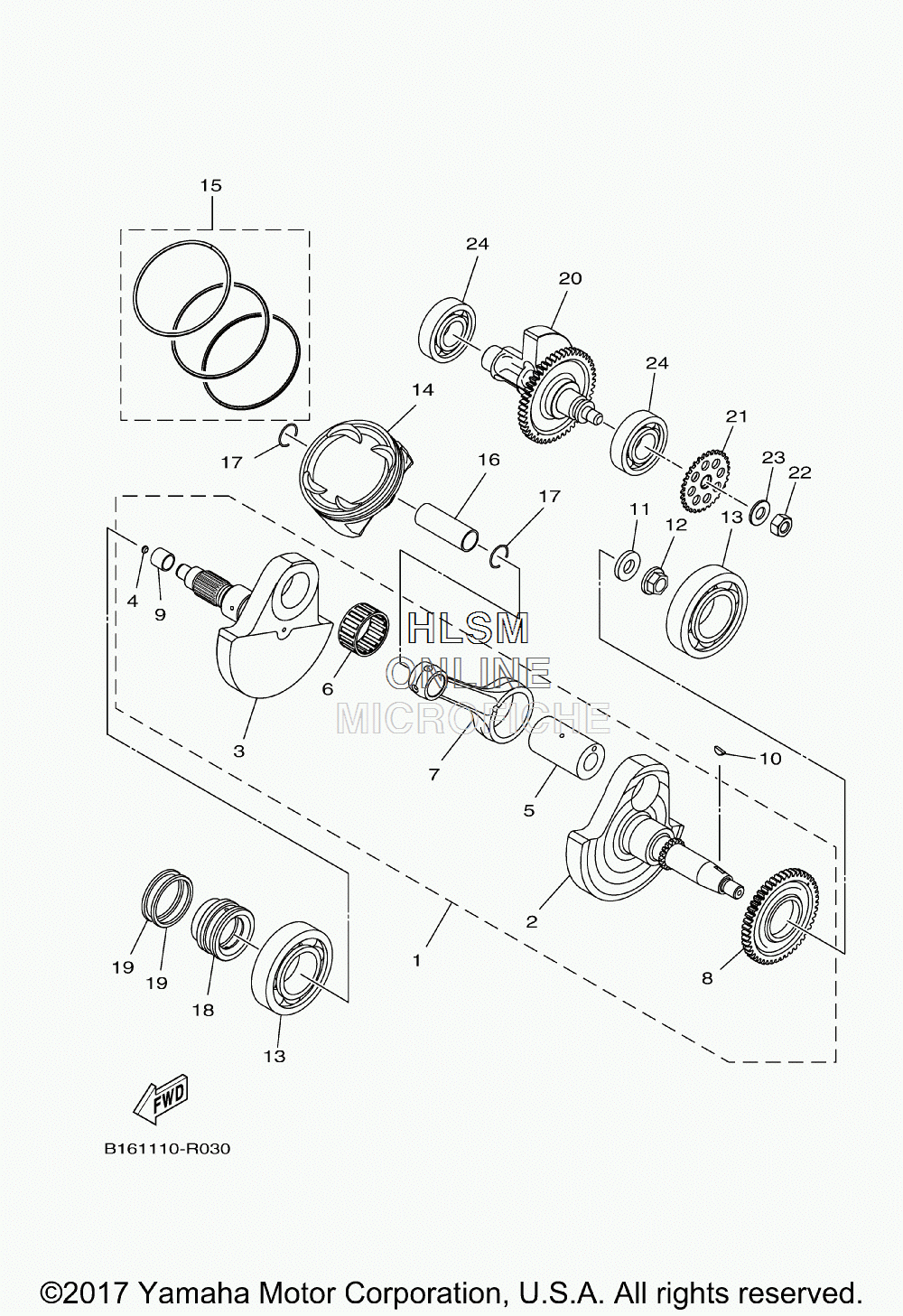

CRANKSHAFT - PISTON для Yamaha KODIAK 700 4WD HUNTER - 2018 года выпуска`
-
№АртикулНазвание
-
12MB-E1400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
22MB-E1412-10-00 ...CRANK 1...CRANK 1
-
32MB-E1422-10-00 ...CRANK 2...CRANK 2
-
42MB-E1446-00-00 ...PLUG, CRANK...PLUG, CRANK
-
52MB-E1681-10-00 ...PIN, CRANK 1...PIN, CRANK 1
-
62MB-E1415-00-00 ...BEARING ASSY 1...BEARING ASSY 1
-
72MB-E1651-10-00 ...ROD, CONNECTING...ROD, CONNECTING
-
82MB-E1536-00-00 ...GEAR, DRIVE...GEAR, DRIVE
-
92MB-G6122-00-00 ...RACE, INNER...RACE, INNER
-
102MB-E1545-00-00 KEY, WOODRUFFKEY, WOODRUFF
-
112MB-E1557-00-00 WASHER 1WASHER 1
-
122MB-E1555-00-00 NUT, CRANKSHAFT 1NUT, CRANKSHAFT 1
-
132MB-E1425-00-00 BEARING ASSY 2BEARING ASSY 2
-
142MB-E1631-00-00 PISTON (STD)PISTON (STD)
-
142MB-E1635-00-00 PISTON (0.25MM O/S) (OPT)PISTON (0.25MM O/S) (OPT)
-
142MB-E1636-00-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
152MB-E1603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
152MB-E1604-00-00 PISTON RING SET (0.25MM O/S) (OPT)PISTON RING SET (0.25MM O/S) (OPT)
-
152MB-E1605-00-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
162MB-E1633-00-00 PIN, PISTONPIN, PISTON
-
172MB-E1634-00-00 CLIP, PISTON PINCLIP, PISTON PIN
-
182MB-E6181-00-00 SPACER 1SPACER 1
-
192MB-E1447-00-00 SEAL, CRANKSEAL, CRANK
-
202MB-E1500-00-00 BALANCER ASSYBALANCER ASSY
-
212MB-E3354-00-00 SPROCKET, DRIVESPROCKET, DRIVE
-
222MB-E1459-00-00 NUT, SPECIALNUT, SPECIAL
-
232MB-E1483-00-00 WASHER, WEIGHT 1WASHER, WEIGHT 1
-
242MB-E1436-00-00 BEARING ASSY 3BEARING ASSY 3
