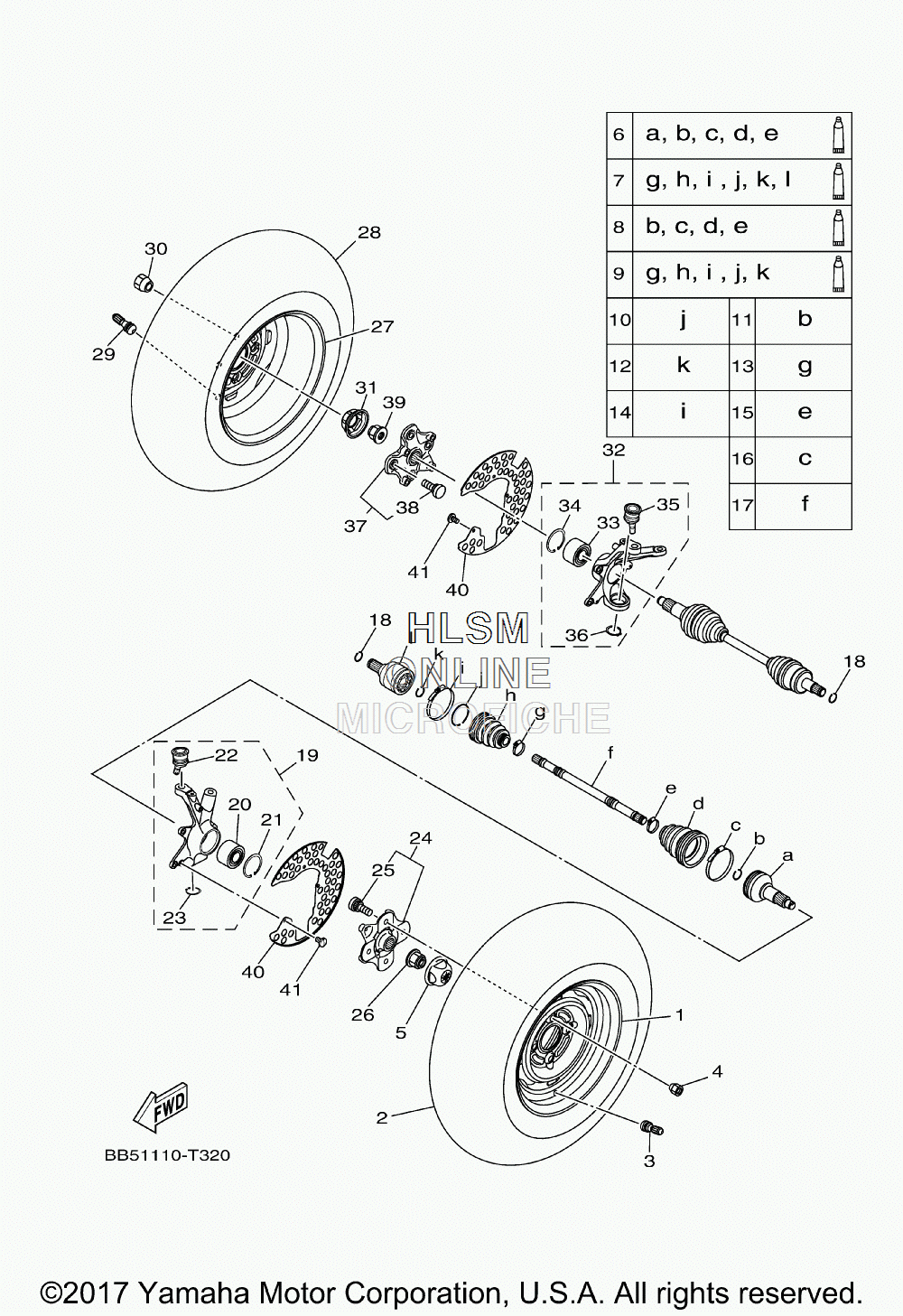

WHEEL - FRONT W/ AXLE ASSY для Yamaha KODIAK 450 EPS (DEEP GREEN) - 2018 года выпуска`
-
№АртикулНазвание
-
1B16-F5180-00-00 WHEEL COMP.WHEEL COMP.
-
294108-12823-00 TIRE (AT25X8-12 CU905 4PR TL) (CHENG SHIN)TIRE (AT25X8-12 CU905 4PR TL) (CHENG SHIN)
-
393900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
490179-10022-00 NUTNUT
-
51HP-F512A-00-00 CAP, WHEELCAP, WHEEL
-
628P-2510F-04-00 BALL JOINT SETBALL JOINT SET
-
7BB5-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
828P-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
9BB5-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
104S1-2512H-00-00 CIRCLIPCIRCLIP
-
113B4-2512H-00-00 CIRCLIPCIRCLIP
-
122HR-2512J-00-00 SNAP RINGSNAP RING
-
133HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
144S1-2511G-00-00 BOOT BANDBOOT BAND
-
1528P-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
1628P-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
17BB5-2518E-00-00 SHAFTSHAFT
-
1893450-22119-00 CIRCLIPCIRCLIP
-
19BB5-F3501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
2093305-00602-00 ...BEARING...BEARING
-
2199009-55500-00 ...CIRCLIP...CIRCLIP
-
223B4-23579-01-00 ...BALL JOINT 2...BALL JOINT 2
-
2399009-30400-00 ...CIRCLIP...CIRCLIP
-
24B16-F510D-01-00 HUB ASSY 2HUB ASSY 2
-
2590114-10014-00 ...BOLT, SERRATION...BOLT, SERRATION
-
2690179-20016-00 NUTNUT
-
27B16-F5180-00-00 WHEEL COMP.WHEEL COMP.
-
2894108-12823-00 TIRE (AT25X8-12 CU905 4PR TL) (CHENG SHIN)TIRE (AT25X8-12 CU905 4PR TL) (CHENG SHIN)
-
2993900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
3090179-10022-00 NUTNUT
-
311HP-F512A-00-00 CAP, WHEELCAP, WHEEL
-
32BB5-F3502-00-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
3393305-00602-00 ...BEARING...BEARING
-
3499009-55500-00 ...CIRCLIP...CIRCLIP
-
353B4-23579-01-00 ...BALL JOINT 2...BALL JOINT 2
-
3699009-30400-00 ...CIRCLIP...CIRCLIP
-
37B16-F510D-01-00 HUB ASSY 2HUB ASSY 2
-
3890114-10014-00 ...BOLT, SERRATION...BOLT, SERRATION
-
3990179-20016-00 NUTNUT
-
40BB5-F514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
4198902-06010-00 SCREW, BINDSCREW, BIND
