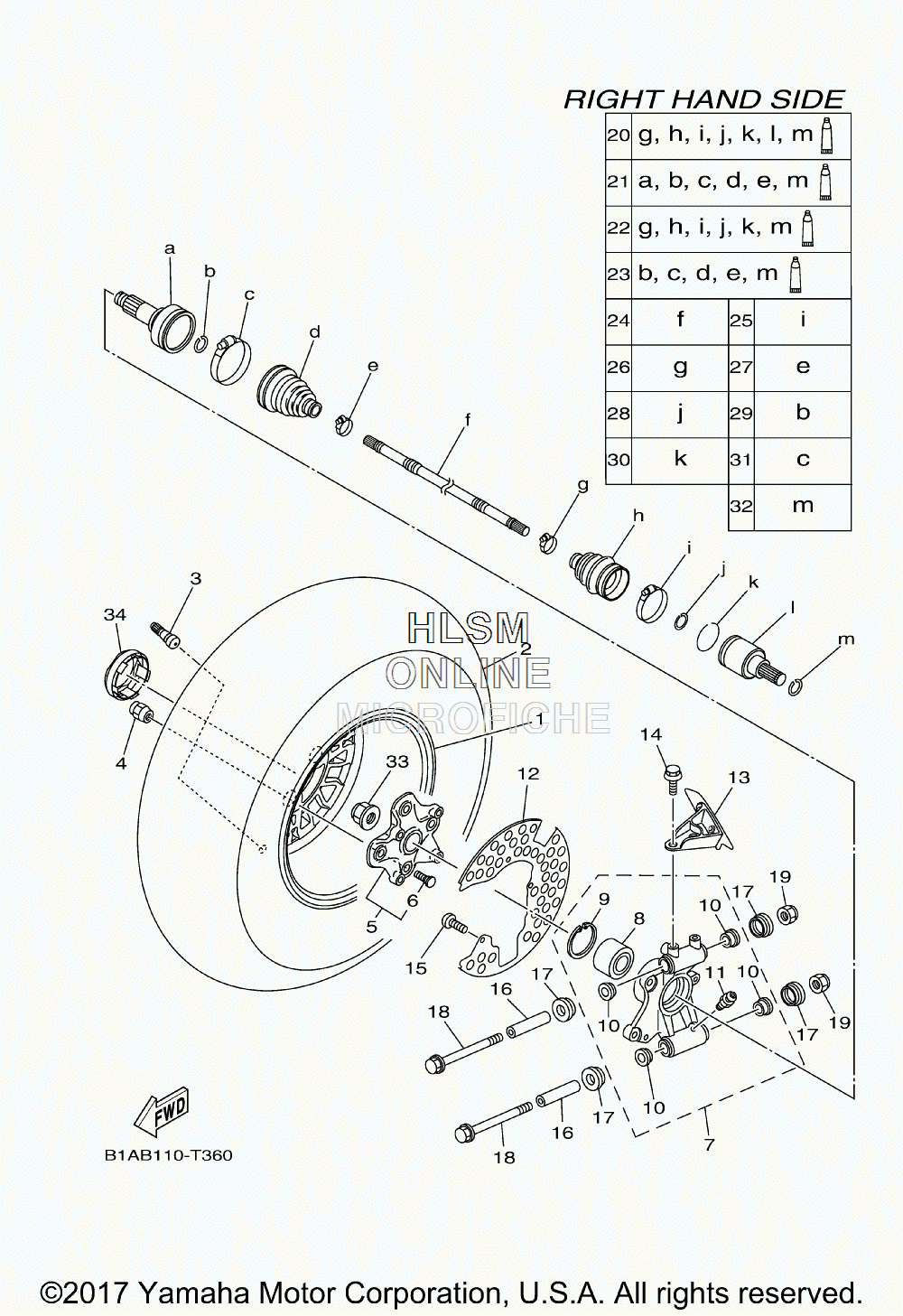

WHEEL - REAR RIGHT SIDE W/ AXLE ASSY для Yamaha GRIZZLY EPS 4WD LE - 2018 года выпуска`
-
№АртикулНазвание
-
1B32-F5338-10-00 CAST WHEEL, REARCAST WHEEL, REAR
-
294110-12819-00 TIRE (AT26X10-12 MU06YTL) (MAXXIS)TIRE (AT26X10-12 MU06YTL) (MAXXIS)
-
393900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
490179-10032-00 NUTNUT
-
5B16-F510D-01-00 HUB ASSY 2HUB ASSY 2
-
690114-10014-00 ...BOLT, SERRATION...BOLT, SERRATION
-
72BG-F532F-00-00 REAR KNUCKLE ASSY.,2REAR KNUCKLE ASSY.,2
-
893305-00602-00 ...BEARING...BEARING
-
999009-55500-00 ...CIRCLIP...CIRCLIP
-
1090381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
1193700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
12BB5-F514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
131HP-F539G-00-00 PLATE 2PLATE 2
-
1490109-06840-00 BOLTBOLT
-
1598902-06010-00 SCREW, BINDSCREW, BIND
-
165KM-23448-00-00 SPACERSPACER
-
172NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1890105-10212-00 BOLT, FLANGEBOLT, FLANGE
-
1990185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
20B16-2530V-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
2128P-2510F-03-00 BALL JOINT SETBALL JOINT SET
-
22B16-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
2328P-2510G-01-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
242UD-2518E-10-00 SHAFTSHAFT
-
25B16-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
26B16-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
2728P-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
28B16-2512J-00-00 SNAP RINGSNAP RING
-
293B4-2512H-00-00 CIRCLIPCIRCLIP
-
30B16-25182-00-00 CIRCLIPCIRCLIP
-
3128P-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
323B4-2536E-00-00 CLIP, SPRINGCLIP, SPRING
-
3390179-20016-00 NUTNUT
-
341RB-F530B-10-00 WHEEL CAP ASSY.WHEEL CAP ASSY.
