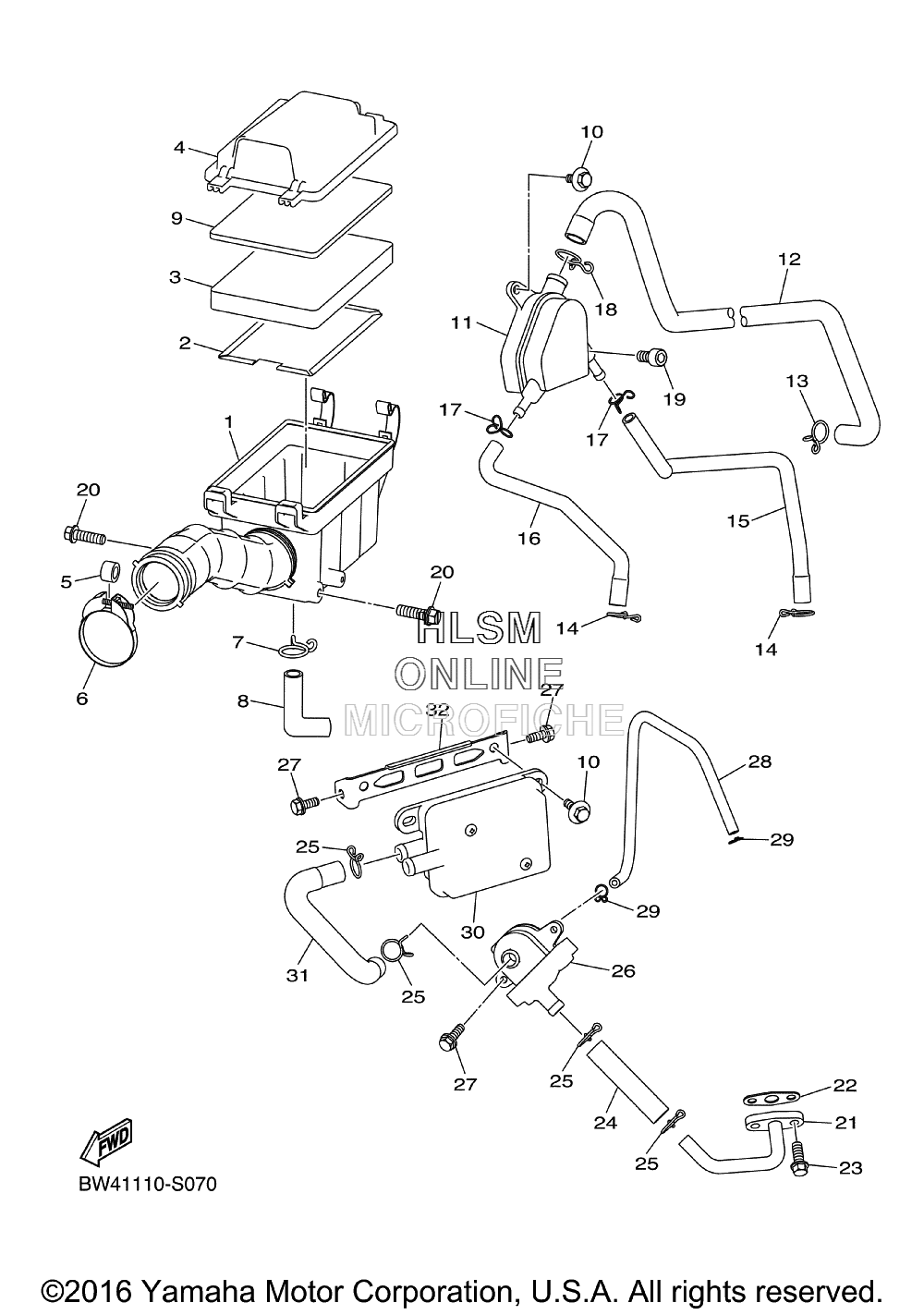

AIR CLEANER W/ INTAKE для Yamaha YFZ 250 [YFZ05YYXHL] (BW41) - 2017 года выпуска
-
№АртикулНазвание
-
1BW4-E4408-00-00 AIR FILTER CASE COMP.AIR FILTER CASE COMP.
-
2BW4-E4472-00-00 PLATE, ELEMENTPLATE, ELEMENT
-
3BW4-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
4BW4-E4412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
5BW4-E4449-00-00 COLLARCOLLAR
-
6BW4-E2491-00-00 CLAMP 1CLAMP 1
-
7BD3-E3577-10-00 CLIPCLIP
-
8BW4-E443E-00-00 PIPE, DRAINPIPE, DRAIN
-
9BW4-E4457-00-00 SEALSEAL
-
10BD3-E4446-10-00 BOLTBOLT
-
11BD3-E1164-00-00 SEPERATOR, OILSEPERATOR, OIL
-
12BW4-E1166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
13BD3-E3577-10-00 CLIPCLIP
-
14BD3-E4137-10-00 CLIPCLIP
-
15BW4-E1126-00-00 PIPE, BREATHER 3PIPE, BREATHER 3
-
16BW4-E1125-00-00 PIPE, BREATHER 4PIPE, BREATHER 4
-
17BW4-E4159-00-00 CLIPCLIP
-
18BD3-E4919-10-00 CLIPCLIP
-
19BD3-E4777-10-00 BOLTBOLT
-
20BW4-E4428-00-00 BOLTBOLT
-
21BW4-E4871-00-00 PIPE 1PIPE 1
-
22BW4-E4815-00-00 GASKETGASKET
-
23BD3-E3573-10-00 BOLT 1BOLT 1
-
24BW4-E4881-00-00 HOSE, BEND 1HOSE, BEND 1
-
25BW4-E4937-00-00 CLIPCLIP
-
26BW4-E4803-00-00 AIR INDUCTION SYSTEM ASSYAIR INDUCTION SYSTEM ASSY
-
27BD3-E2228-10-00 BOLTBOLT
-
28BW4-E3542-00-00 HOSE, VACUUM SENSING 1HOSE, VACUUM SENSING 1
-
29BD3-E4937-00-00 CLIPCLIP
-
30BW4-E4827-00-00 FILTERFILTER
-
31BW4-E4882-00-00 HOSE, BEND 2HOSE, BEND 2
-
32BW4-E4867-00-00 BRACKETBRACKET
