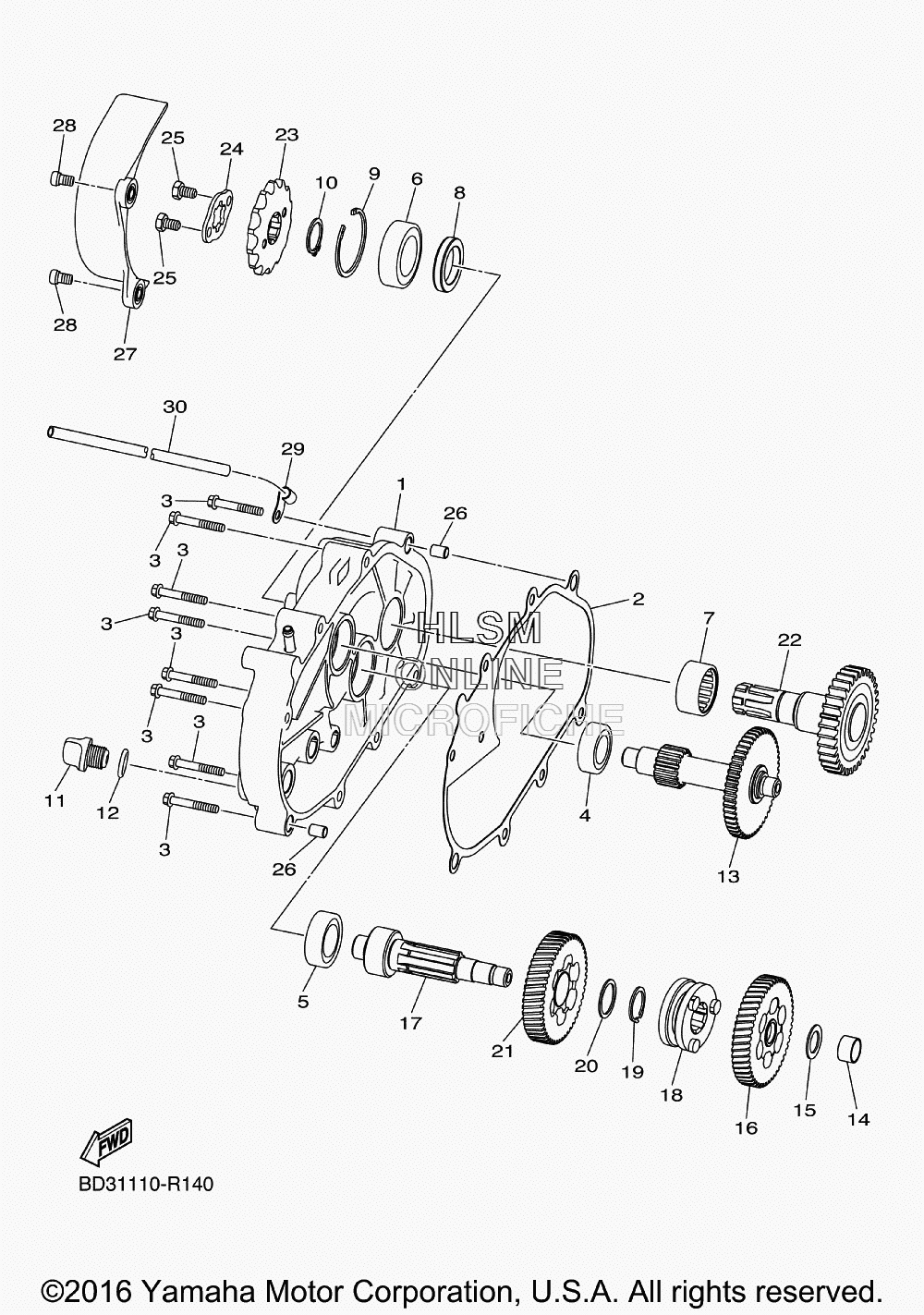

TRANSMISSION для Yamaha RAPTOR 90 [YFM09RYXHL] - 2017 года выпуска`
-
№АртикулНазвание
-
1BD3-E5420-10-00 CRANKCASE COVER ASSY 2CRANKCASE COVER ASSY 2
-
2BD3-E5461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
3BD3-G1148-10-00 BOLTBOLT
-
4BD3-E1429-00-00 BEARING 2BEARING 2
-
5BD3-E4814-00-00 BEARINGBEARING
-
6BD3-E5693-00-00 BEARINGBEARING
-
7BD3-E7678-00-00 BEARINGBEARING
-
8BD3-E4005-00-00 RING, SEALRING, SEAL
-
9BD3-E2842-00-00 CIRCLIPCIRCLIP
-
10BD3-E662A-00-00 CIRCLIPCIRCLIP
-
11BD3-E5363-00-00 PLUG, OILPLUG, OIL
-
12BD3-E4561-00-00 O-RINGO-RING
-
13BD3-E7430-00-00 COUNTER AXLE ASSYCOUNTER AXLE ASSY
-
14BD3-E1478-00-00 COLLARCOLLAR
-
15BD3-E3578-00-00 WASHERWASHER
-
16BD3-E6151-00-00 GEAR, PRIMARY DRIVENGEAR, PRIMARY DRIVEN
-
17BD3-E7421-00-00 AXLE, DRIVEAXLE, DRIVE
-
18BD3-E7285-00-00 CLUTCH, DOGCLUTCH, DOG
-
19BD3-E551A-00-00 CIRCLIP 1CIRCLIP 1
-
20BD3-E3995-00-00 WASHERWASHER
-
21BD3-E7253-00-00 GEAR, REVERSE WHEEL 2GEAR, REVERSE WHEEL 2
-
22BD3-E7520-00-00 DRIVE PINION ASSYDRIVE PINION ASSY
-
23BD3-E7451-00-00 SPROCKET, DRIVESPROCKET, DRIVE
-
24BD3-E7446-10-00 PLATEPLATE
-
25BD3-E2299-10-00 BOLT, STOPPERBOLT, STOPPER
-
26BD3-E7498-00-00 PIN, DOWELPIN, DOWEL
-
27BD3-E5418-00-00 COVER, CHAIN CASECOVER, CHAIN CASE
-
28BD3-E4429-10-00 SCREWSCREW
-
29BD3-E5689-00-00 RETAINERRETAINER
-
30BD3-E531A-00-00 HOSE, BREATHER 1HOSE, BREATHER 1
