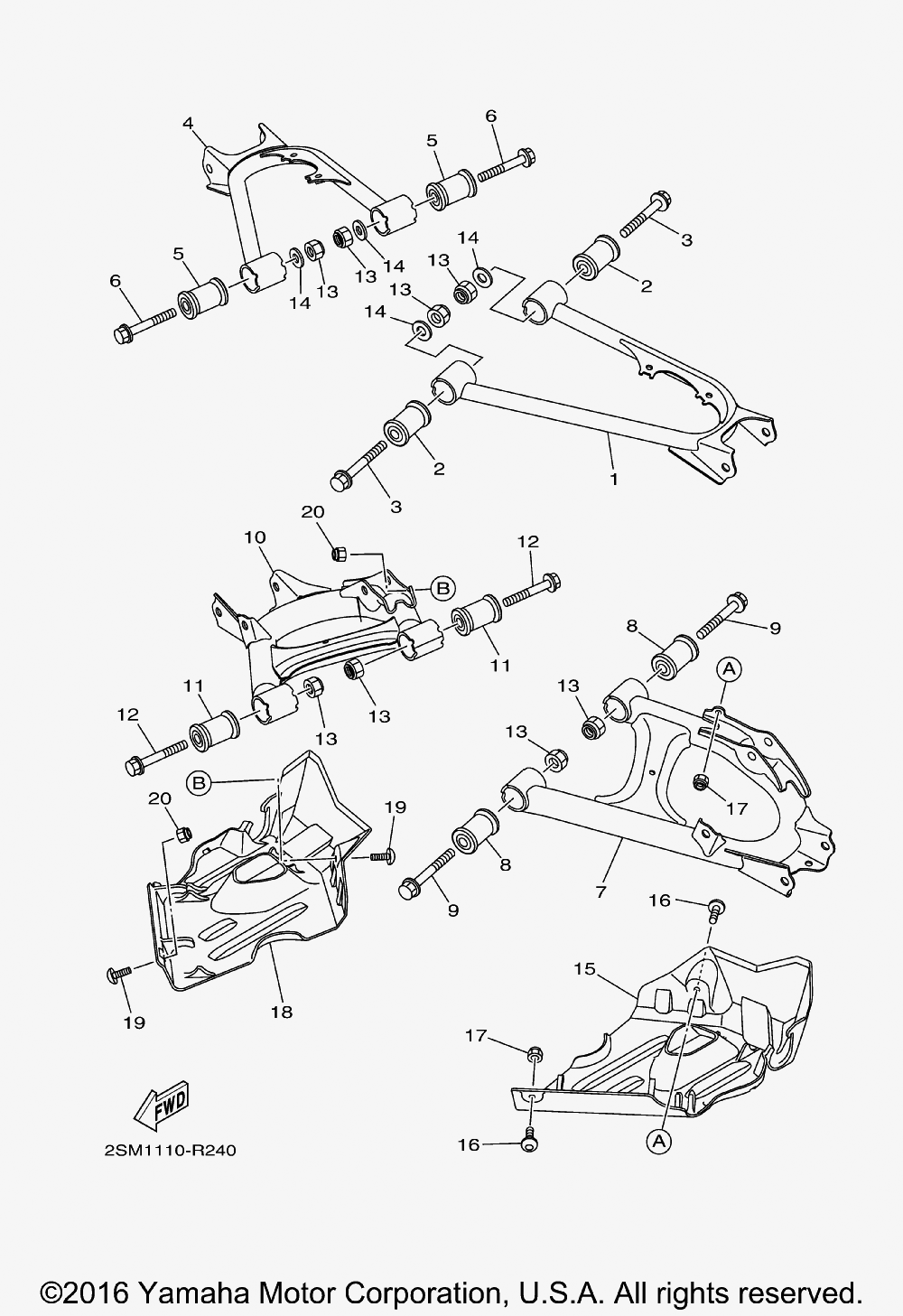

SUSPENSION - REAR ARM для Yamaha KODIAK 700 EPS 4WD SE [YFM70KPSHL] - 2017 года выпуска`
-
№АртикулНазвание
-
11HP-F2171-00-00 ARM, REAR 1ARM, REAR 1
-
21HP-F3526-00-00 BUSHBUSH
-
390105-10011-00 BOLT, FLANGEBOLT, FLANGE
-
41HP-F2172-00-00 ARM, REAR 2ARM, REAR 2
-
51HP-F3526-00-00 BUSHBUSH
-
690105-10011-00 BOLT, FLANGEBOLT, FLANGE
-
71HP-F217M-00-00 ARM 1ARM 1
-
81HP-F3526-00-00 BUSHBUSH
-
990105-10011-00 BOLT, FLANGEBOLT, FLANGE
-
101HP-F217N-00-00 ARM 2ARM 2
-
111HP-F3526-00-00 BUSHBUSH
-
1290105-10011-00 BOLT, FLANGEBOLT, FLANGE
-
1390185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1490201-10035-00 WASHER, PLATEWASHER, PLATE
-
151HP-F2128-00-00 COVER, THRUST 1COVER, THRUST 1
-
1690111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1795702-06300-00 NUT, NYLONNUT, NYLON
-
181HP-F2129-00-00 COVER, THRUST 2COVER, THRUST 2
-
1990111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
2095702-06300-00 NUT, NYLONNUT, NYLON
