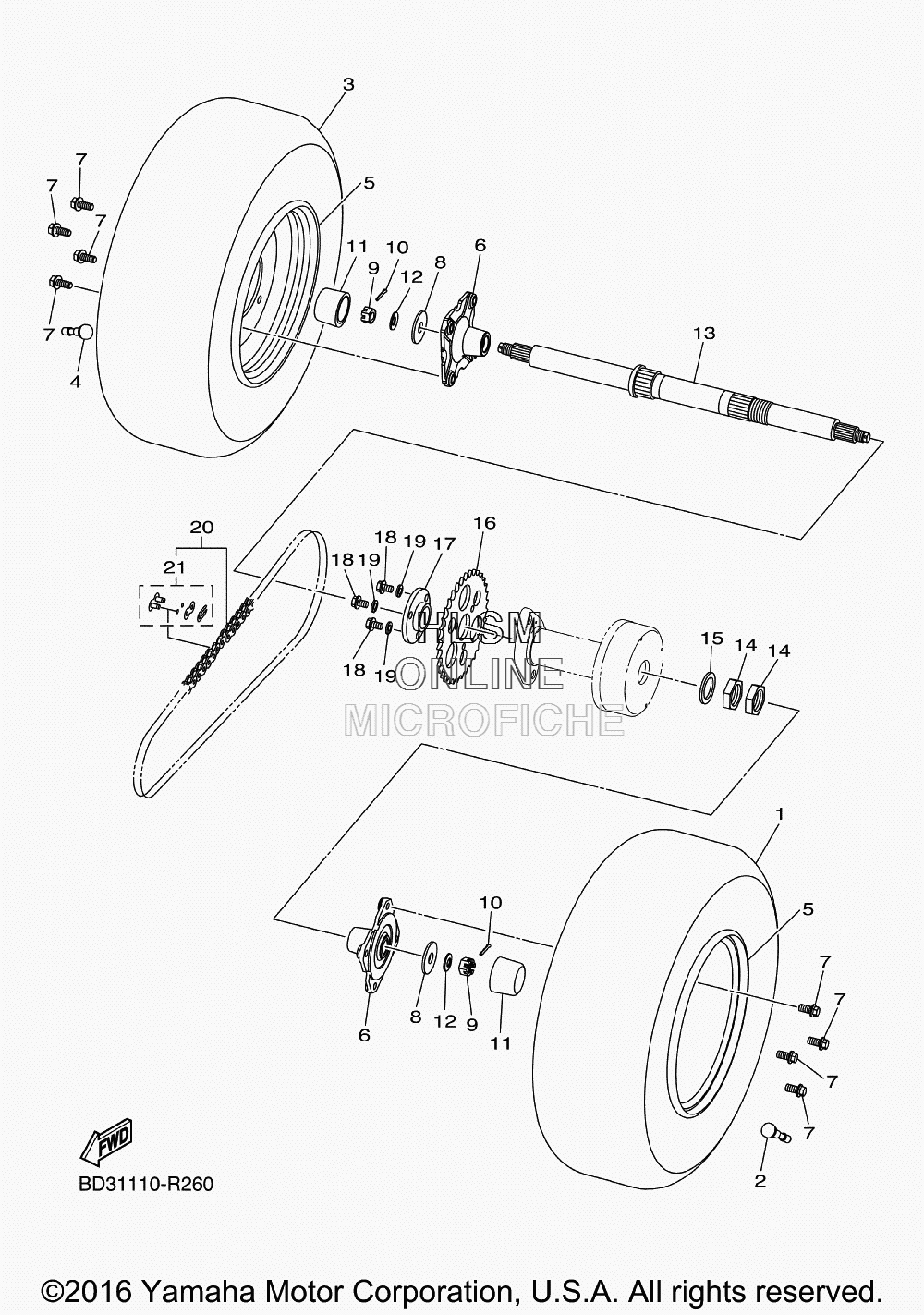

WHEEL - REAR W/ AXLE ASSY для Yamaha RAPTOR 90 - 2016 года выпуска`
-
№АртикулНазвание
-
1BD3-F53P3-00-00 TIRETIRE
-
2BD3-F5170-00-00 AIR VALVE ASSYAIR VALVE ASSY
-
3BD3-F53P3-00-00 TIRETIRE
-
4BD3-F5170-00-00 AIR VALVE ASSYAIR VALVE ASSY
-
5BD3-F5180-00-00 WHEEL COMP.WHEEL COMP.
-
6BD3-F5377-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
7BD3-F4592-00-00 BOLTBOLT
-
8BD3-F2243-00-00 WASHER 1WASHER 1
-
9BD3-F5382-00-00 NUT, AXLENUT, AXLE
-
10BD3-F112N-00-00 PINPIN
-
11BD3-F512A-00-00 CAP, WHEELCAP, WHEEL
-
12BD3-F2159-00-00 WASHER, SPRING LOWERWASHER, SPRING LOWER
-
13BD3-F5381-00-00 AXLE, WHEELAXLE, WHEEL
-
14BD3-F1636-00-00 NUTNUT
-
15BD3-F3737-00-00 WASHER 1WASHER 1
-
16BD3-F5438-00-00 SPROCKET, DRIVEN (38T)SPROCKET, DRIVEN (38T)
-
17BD3-F5386-00-00 COLLAR, SPROCKET AXLECOLLAR, SPROCKET AXLE
-
18BD3-F3459-00-00 BOLTBOLT
-
19BD3-F2156-00-00 WASHER, PLATEWASHER, PLATE
-
20BD3-F53C0-00-00 CHAINCHAIN
-
21BD3-E6548-00-00 ...JOINT, CHAIN...JOINT, CHAIN
