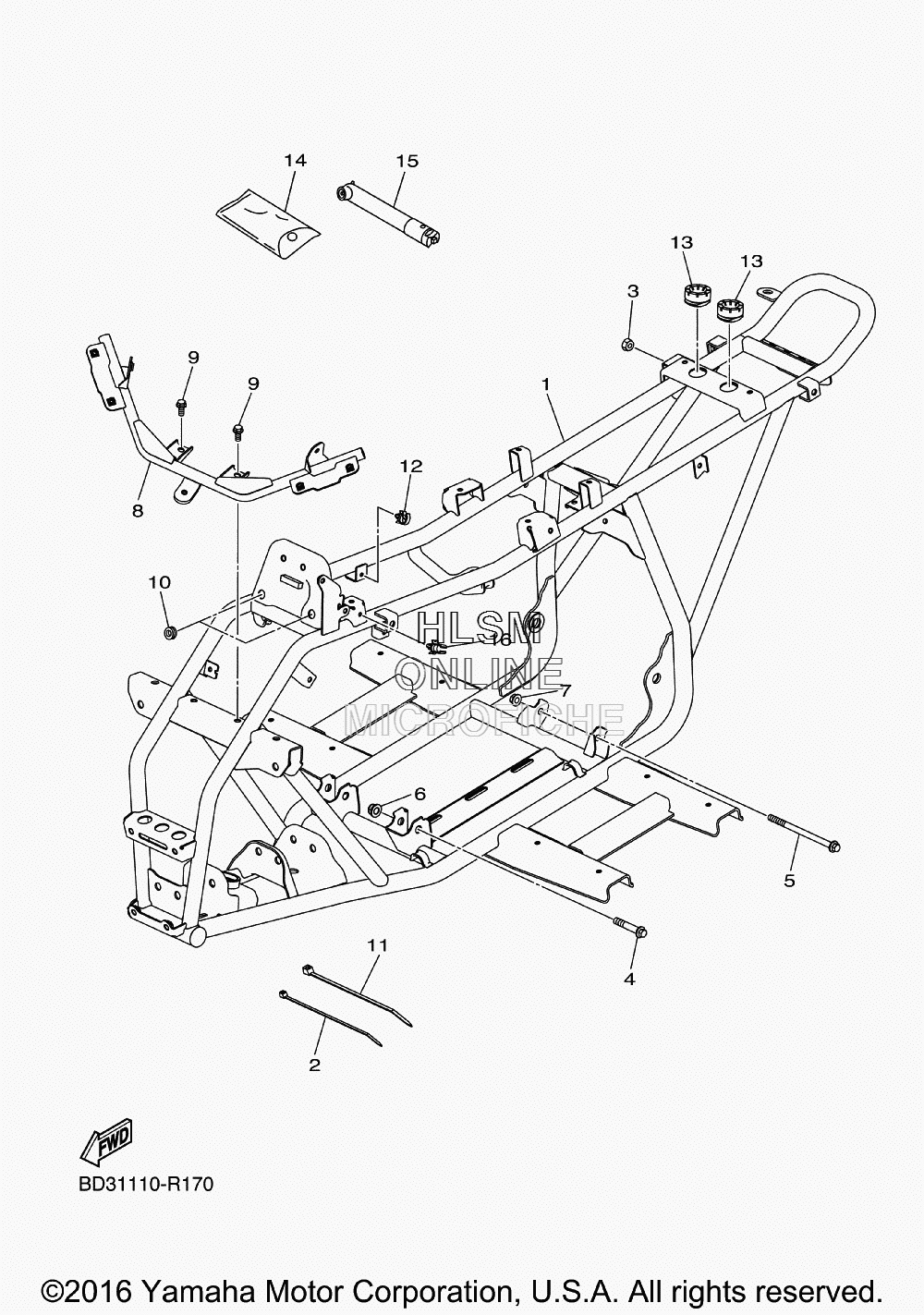

FRAME для Yamaha RAPTOR 90 - 2016 года выпуска`
-
№АртикулНазвание
-
1BD3-F1110-00-00 FRAME COMP.FRAME COMP.
-
2BD3-F1646-00-00 BANDBAND
-
3BD3-F2251-00-00 NUT 1NUT 1
-
4BD3-F6332-00-00 BOLTBOLT
-
5BD3-F4178-00-00 BOLT 3BOLT 3
-
6BD3-F1839-00-00 NUTNUT
-
7BD3-F1635-00-00 NUT, REAR FENDERNUT, REAR FENDER
-
8BD3-F1513-00-00 STAY, FENDER 1STAY, FENDER 1
-
9BD3-F4176-00-00 BOLT 1BOLT 1
-
10BD3-F1719-00-00 GROMMETGROMMET
-
11BD3-F1647-00-00 BANDBAND
-
12BD3-F1338-00-00 CLAMPCLAMP
-
13BD3-F113B-00-00 DAMPERDAMPER
-
14BD3-F8100-00-00 TOOL KITTOOL KIT
-
15BD3-F811A-00-00 GAUGE, AIRGAUGE, AIR
-
16BD3-F15A3-00-00 CLAMPCLAMP
