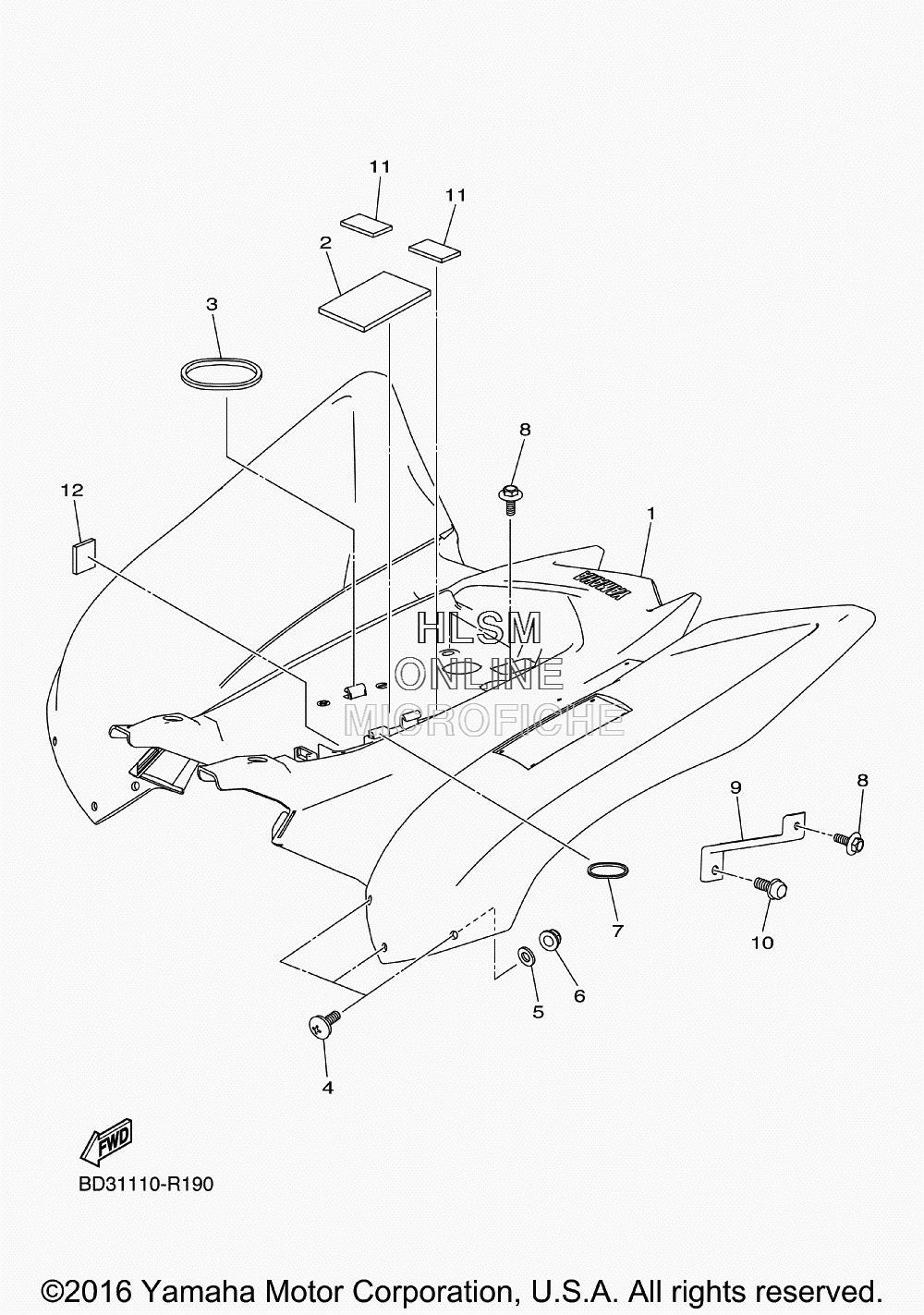

FENDER - REAR для Yamaha RAPTOR 90 - 2016 года выпуска`
-
№АртикулНазвание
-
1BD3-F1600-00-00 REAR FENDER ASSYREAR FENDER ASSY
-
2BD3-H2122-00-00 SEAT, BATTERYSEAT, BATTERY
-
3BD3-H2131-00-00 BAND, BATTERYBAND, BATTERY
-
4BD3-F11C8-00-00 SCREW 4SCREW 4
-
5BD3-F2149-00-00 WASHERWASHER
-
6BD3-F4148-00-00 NUT, SPEED 3NUT, SPEED 3
-
7BD3-F1376-00-00 BAND, TOOLBAND, TOOL
-
8BD3-F1632-00-00 BOLT 2BOLT 2
-
9BD3-F1613-00-00 STAY, FENDER 1STAY, FENDER 1
-
10BD3-F4176-00-00 BOLT 1BOLT 1
-
11BD3-F1639-00-00 DAMPER 2DAMPER 2
-
12BD3-F1649-00-00 DAMPERDAMPER
