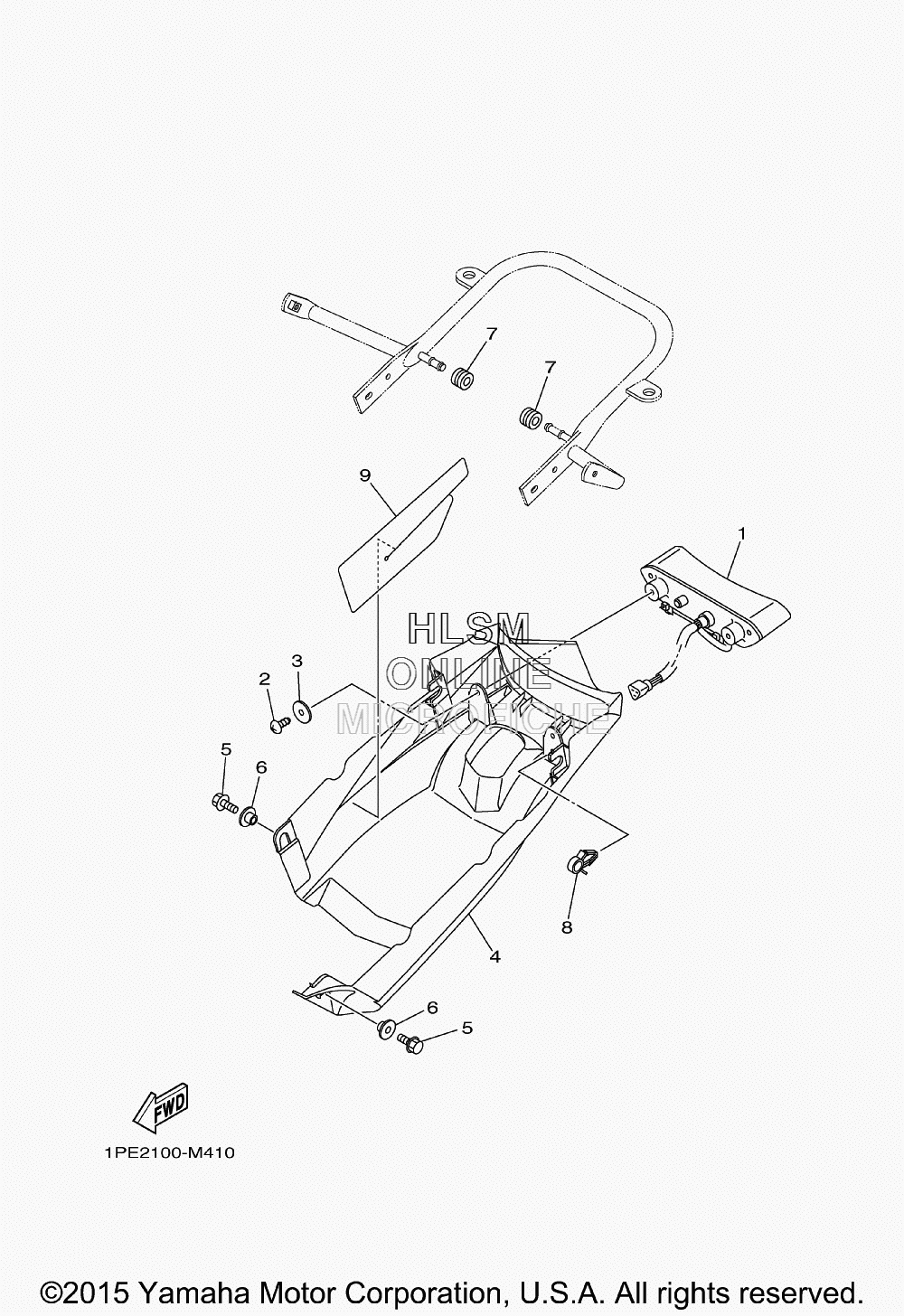

TAILLIGHT для Yamaha RAPTOR 700R - 2016 года выпуска
-
№АртикулНазвание
-
11S3-84710-10-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
297702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
390201-05025-00 WASHER, PLATEWASHER, PLATE
-
41PE-H4716-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
595802-06010-00 BOLT, FLANGEBOLT, FLANGE
-
690387-06153-00 COLLARCOLLAR
-
790480-14101-00 GROMMETGROMMET
-
890464-15157-00 CLAMPCLAMP
-
91S3-84736-00-00 DAMPER, TAIL 1DAMPER, TAIL 1
