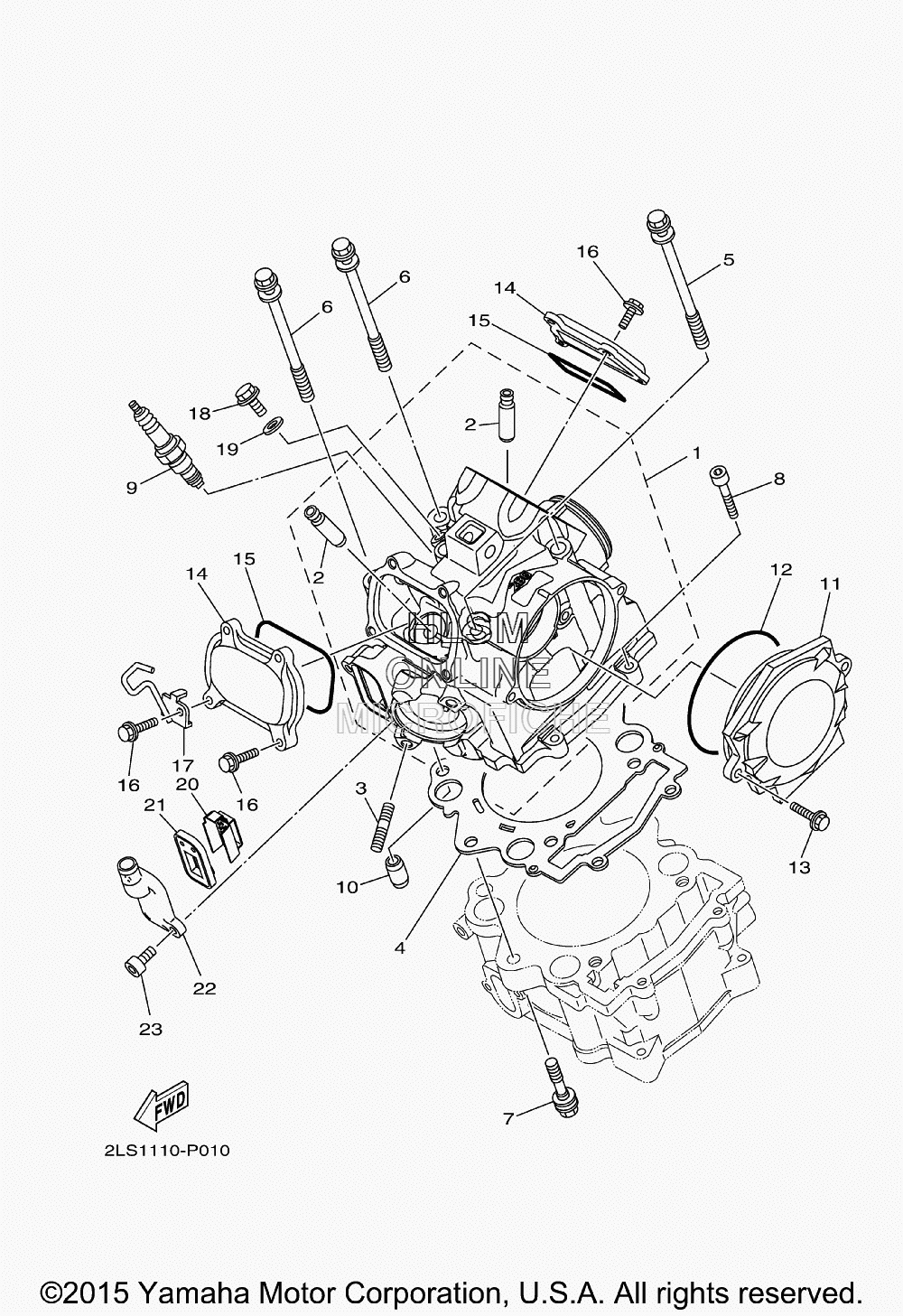

CYLINDER HEAD для Yamaha RAPTOR 700R SE - 2016 года выпуска`
-
№АртикулНазвание
-
12LS-11101-09-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
24G0-11133-11-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
395612-08625-00 BOLT, STUDBOLT, STUD
-
43B4-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
590109-09003-00 BOLTBOLT
-
690109-09002-00 BOLTBOLT
-
790109-09005-00 BOLTBOLT
-
891312-06030-00 BOLTBOLT
-
9CR8-E0000-00-00 PLUG, SPARK (NGK CR8E)PLUG, SPARK (NGK CR8E)
-
1093612-16254-00 PIN, DOWELPIN, DOWEL
-
111S3-11185-10-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
1293210-96601-00 O-RINGO-RING
-
1395022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
141S3-11186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
1593210-78544-00 O-RINGO-RING
-
1695022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
171S3-1131E-00-00 HOLDER 1HOLDER 1
-
1890401-08004-00 BOLT, UNIONBOLT, UNION
-
1990430-08119-00 GASKETGASKET
-
202BG-1482K-00-00 PLATEPLATE
-
215JW-14890-00-00 REED VALVE ASSYREED VALVE ASSY
-
225JW-14889-00-00 CAP, CASECAP, CASE
-
2390110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
