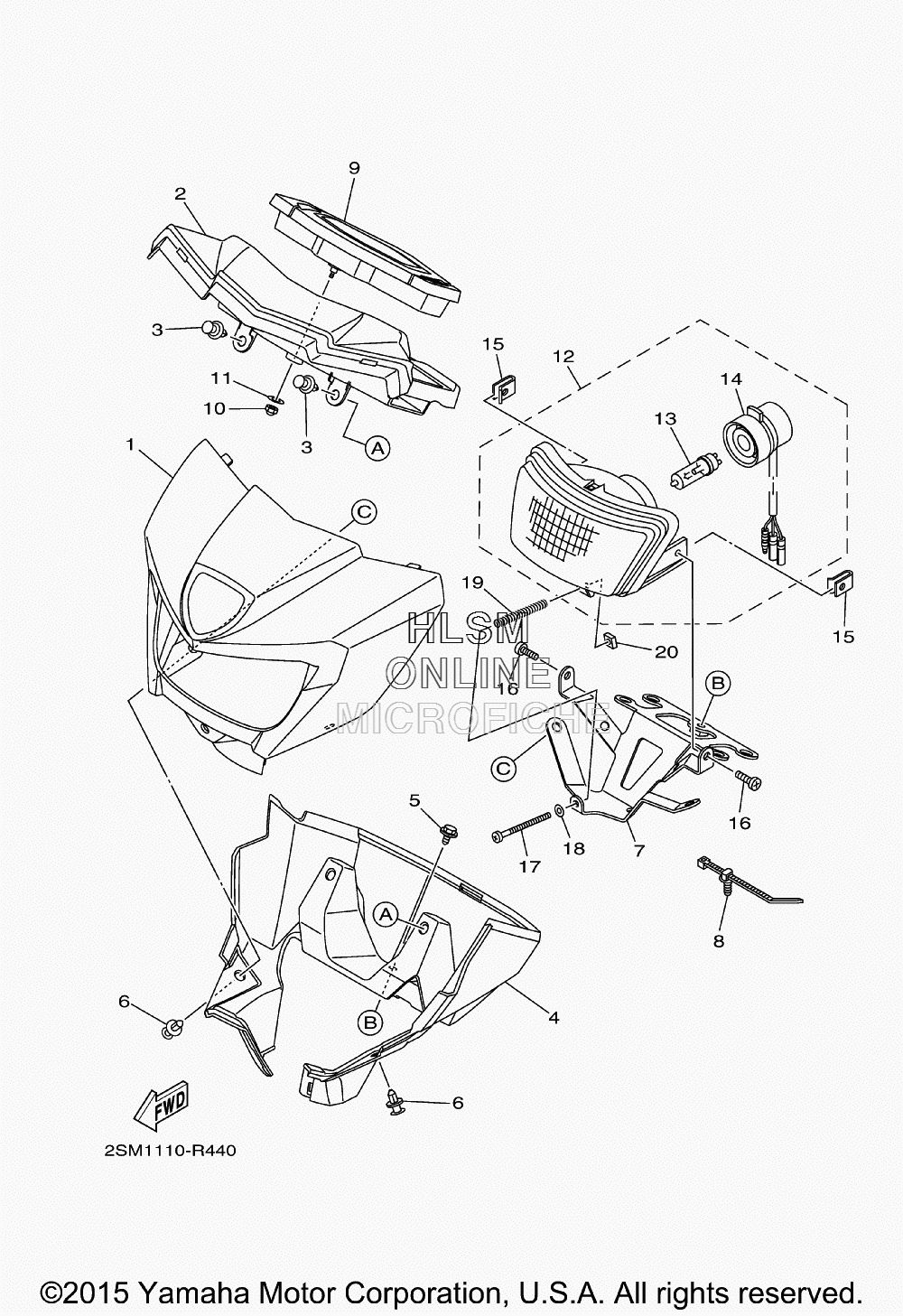

HEADLIGHT W/ METER ASSY. для Yamaha KODIAK 700 EPS 4WD HUNTER - 2016 года выпуска`
-
№АртикулНазвание
-
12SM-H252L-00-00 COVER COMP.COVER COMP.
-
22SM-H3559-00-00 COVER, METERCOVER, METER
-
390269-07010-00 RIVETRIVET
-
42SM-F6143-00-00 COVER, HANDLE UPPER 1COVER, HANDLE UPPER 1
-
590119-06079-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690269-07010-00 RIVETRIVET
-
72SM-F6292-00-00 STAYSTAY
-
81NS-F1338-00-00 CLAMPCLAMP
-
92SM-83500-00-00 METER ASSYMETER ASSY
-
1095302-05800-00 NUT, CROWNNUT, CROWN
-
1190201-05039-00 WASHER, PLATEWASHER, PLATE
-
122PA-84300-00-00 HEADLIGHT ASSYHEADLIGHT ASSY
-
135VM-84314-00-00 ...BULB, HEADLIGHT(12V-35/36.5W)...BULB, HEADLIGHT(12V-35/36.5W)
-
142PA-84340-00-00 ...SOCKET CORD ASSY 1...SOCKET CORD ASSY 1
-
155VM-84117-00-00 NUTNUT
-
1698502-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
175BF-8433E-00-00 SCREW, ADJUSTINGSCREW, ADJUSTING
-
1892902-04600-00 WASHER, PLATEWASHER, PLATE
-
1990501-100A3-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
205VM-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
