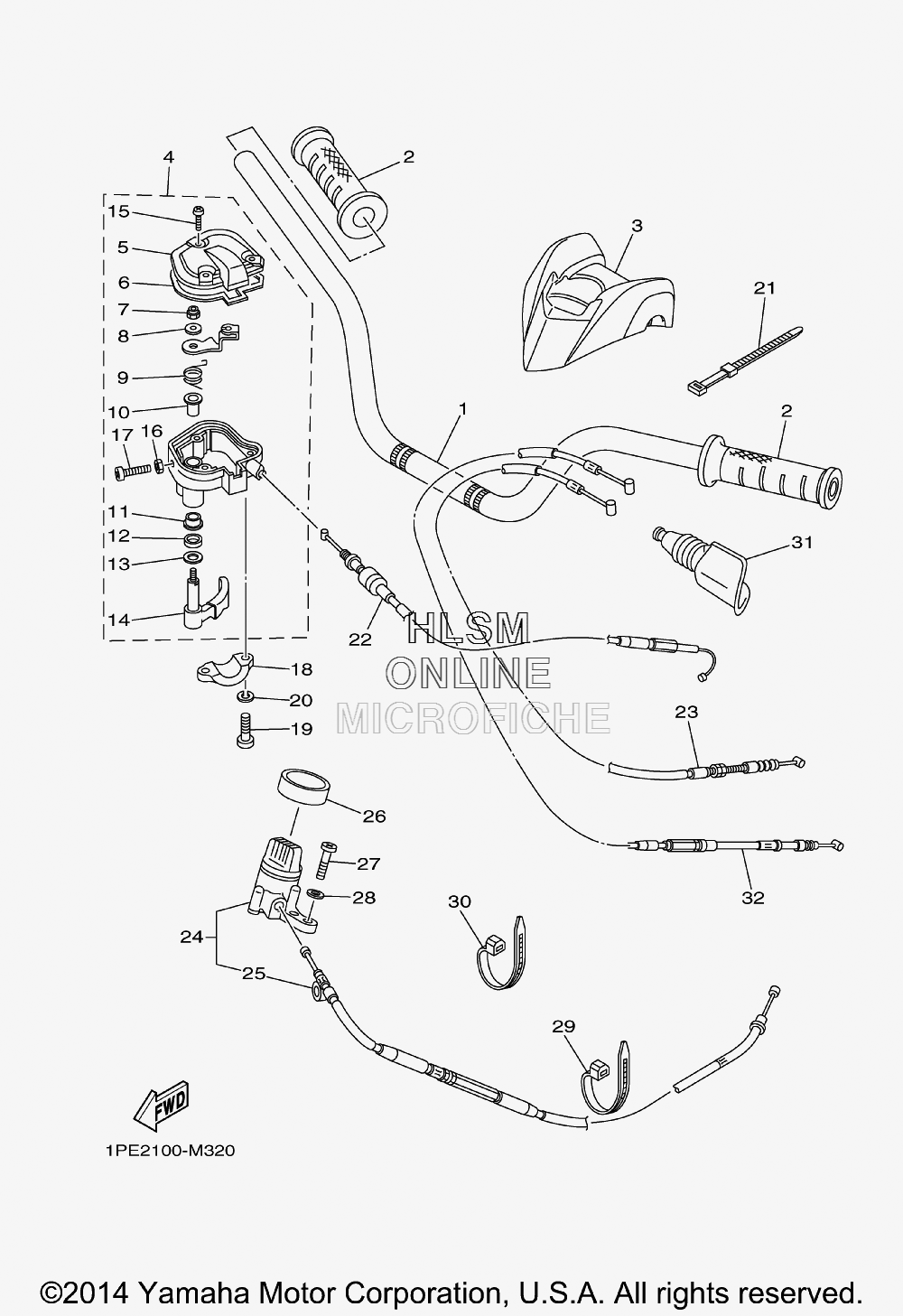

HANDLEBAR W/ CABLES для Yamaha RAPTOR 700 - 2015 года выпуска`
-
№АртикулНазвание
-
11PE-F6111-00-00 HANDLEBARHANDLEBAR
-
25FU-F6241-10-00 GRIPGRIP
-
31PE-F6124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
41S3-26250-00-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
51S3-2628F-00-00 ...CAP, GEAR...CAP, GEAR
-
61S3-2628G-00-00 ...GASKET...GASKET
-
795602-05100-00 ...NUT, U...NUT, U
-
81NV-26398-00-00 ...WASHER...WASHER
-
91NV-26304-00-00 ...SPRING...SPRING
-
101NV-26259-01-00 ...COLLAR...COLLAR
-
111NV-2625K-00-00 ...COLLAR...COLLAR
-
1293104-09025-00 ...OIL SEAL...OIL SEAL
-
131NV-26129-00-00 ...WASHER...WASHER
-
141S3-2625G-00-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
1590149-04278-00 ...SCREW...SCREW
-
1695302-05700-00 ...NUT...NUT
-
1798502-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
181S3-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
1998502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2092902-05100-00 WASHER, SPRINGWASHER, SPRING
-
21437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
221S3-26311-10-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
231S3-26335-01-00 CABLE, CLUTCHCABLE, CLUTCH
-
241S3-26150-10-00 REV. LEVER ASSY.REV. LEVER ASSY.
-
251S3-2637E-10-00 ...CABLE, CONTROL 1...CABLE, CONTROL 1
-
261S3-26113-00-00 DAMPERDAMPER
-
2798502-05018-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2892902-05600-00 WASHER, PLATEWASHER, PLATE
-
2990464-13073-00 CLAMPCLAMP
-
3090464-12045-00 CLAMPCLAMP
-
3131A-26372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
321PE-26341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
