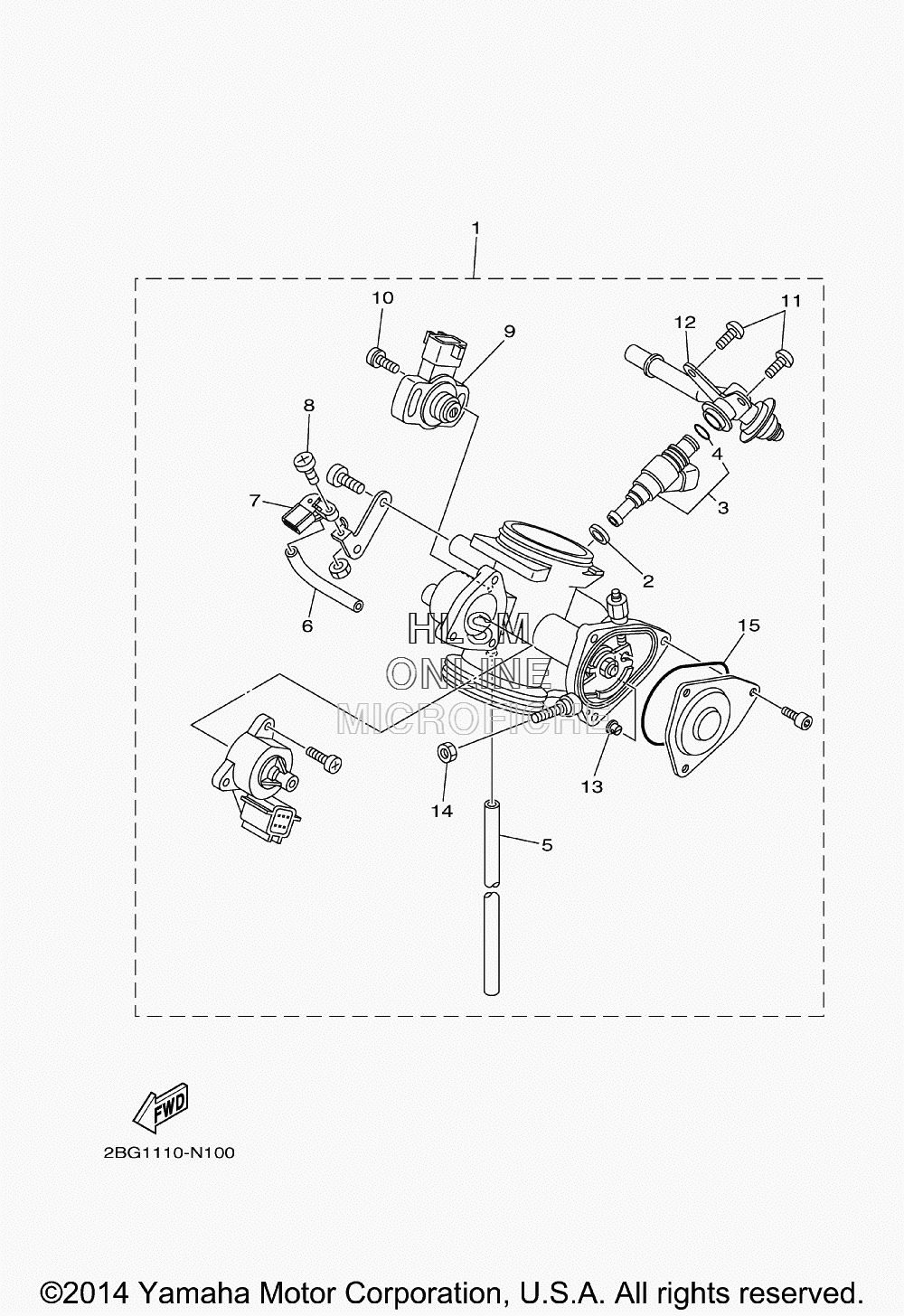

THROTTLE BODY ASSY. для Yamaha GRIZZLY 700 EPS 4WD - 2015 года выпуска`
-
№АртикулНазвание
-
12BG-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
33B4-13761-00-00 ...INJECTOR...INJECTOR
-
45PS-14147-00-00 ......O-RING......O-RING
-
528P-13543-00-00 ...HOSE, AIR...HOSE, AIR
-
65JW-14348-00-00 ...PIPE 1...PIPE 1
-
75S7-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
82C0-14216-00-00 ...SCREW...SCREW
-
93B4-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
108CC-14216-10-00 ...SCREW...SCREW
-
1198502-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
122BG-13160-00-00 ...DELIVERY PIPE ASSY 1...DELIVERY PIPE ASSY 1
-
131UY-14155-00-00 ...GUIDE, CABLE...GUIDE, CABLE
-
141S3-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
155LP-14147-00-00 ...O-RING...O-RING
