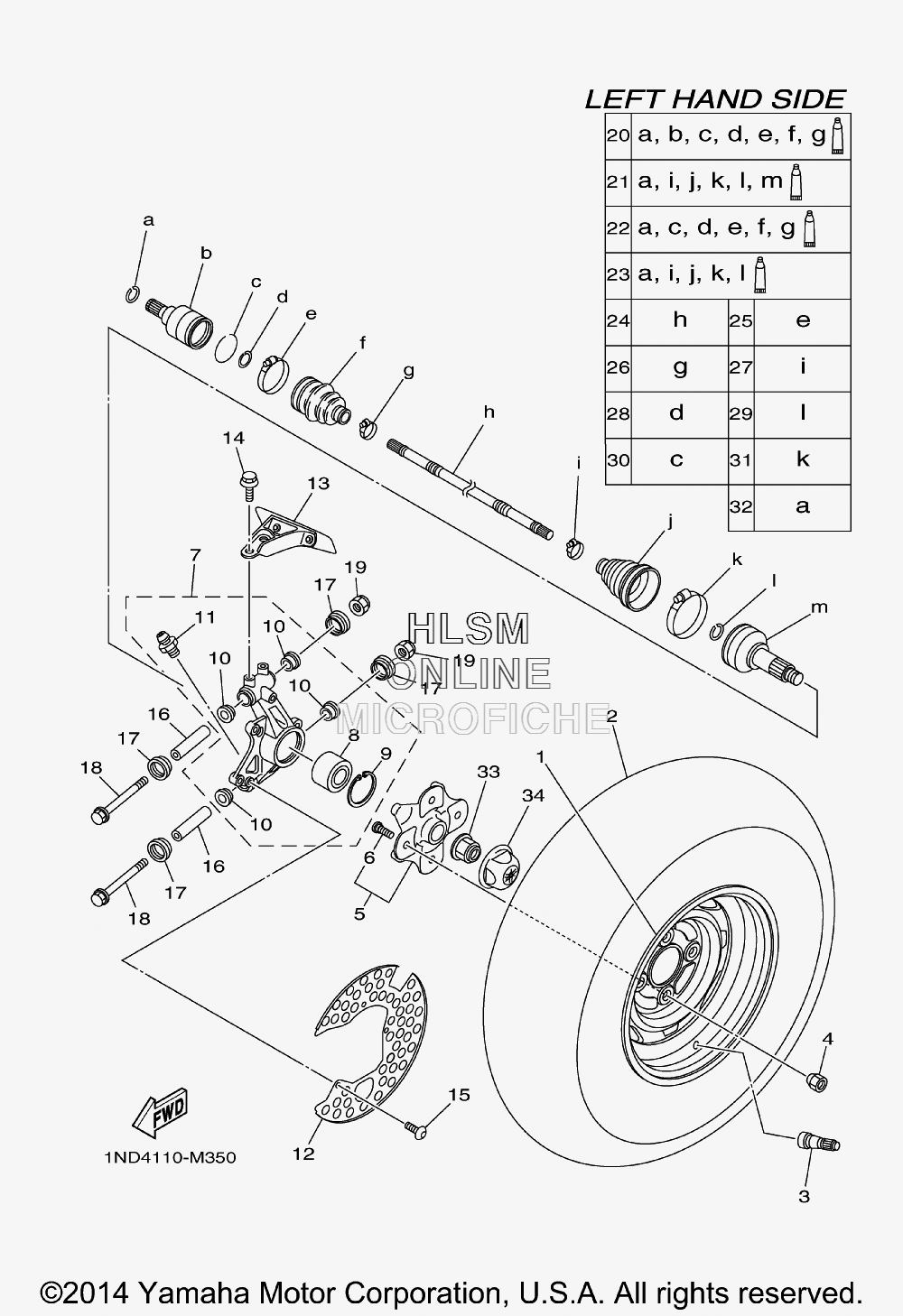

WHEEL - REAR W/ AXLE ASSY для Yamaha GRIZZLY 700 4WD HUNTER - 2015 года выпуска`
-
№АртикулНазвание
-
11ND-F5390-10-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-12816-00 TIRE (AT25X10-12 MU20**TL)TIRE (AT25X10-12 MU20**TL)
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
490179-10020-00 NUTNUT
-
53B4-25111-11-00 HUB, FRONTHUB, FRONT
-
690114-10014-00 ...BOLT, SERRATION...BOLT, SERRATION
-
72BG-F530F-00-00 REAR KNUCKLE ASSYREAR KNUCKLE ASSY
-
893305-00602-00 ...BEARING...BEARING
-
999009-55500-00 ...CIRCLIP...CIRCLIP
-
1090381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
1193700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
121HP-F514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
131HP-F539F-00-00 PLATE 1PLATE 1
-
1490109-06840-00 BOLTBOLT
-
1598902-06010-00 SCREW, BINDSCREW, BIND
-
165KM-23448-00-00 SPACERSPACER
-
172NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1890105-10212-00 BOLT, FLANGEBOLT, FLANGE
-
1990185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2028P-2530V-01-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
2128P-2510F-03-00 BALL JOINT SETBALL JOINT SET
-
2228P-2510H-02-00 BOOT SET(DOUBLE OFFSET JOINT)BOOT SET(DOUBLE OFFSET JOINT)
-
2328P-2510G-01-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
242BG-2518E-10-00 SHAFTSHAFT
-
253B4-2511H-00-00 BOOT BAND(DOUBLE OFFSET JOINT)BOOT BAND(DOUBLE OFFSET JOINT)
-
263B4-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
2728P-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
283B4-2512J-00-00 SNAP RINGSNAP RING
-
293B4-2512H-00-00 CIRCLIPCIRCLIP
-
303B4-25182-00-00 CIRCLIPCIRCLIP
-
3128P-2511H-00-00 BOOT BAND(DOUBLE OFFSET JOINT)BOOT BAND(DOUBLE OFFSET JOINT)
-
323B4-2536E-00-00 CLIP, SPRINGCLIP, SPRING
-
3390179-20016-00 NUTNUT
-
341HP-F512A-00-00 CAP, WHEELCAP, WHEEL
