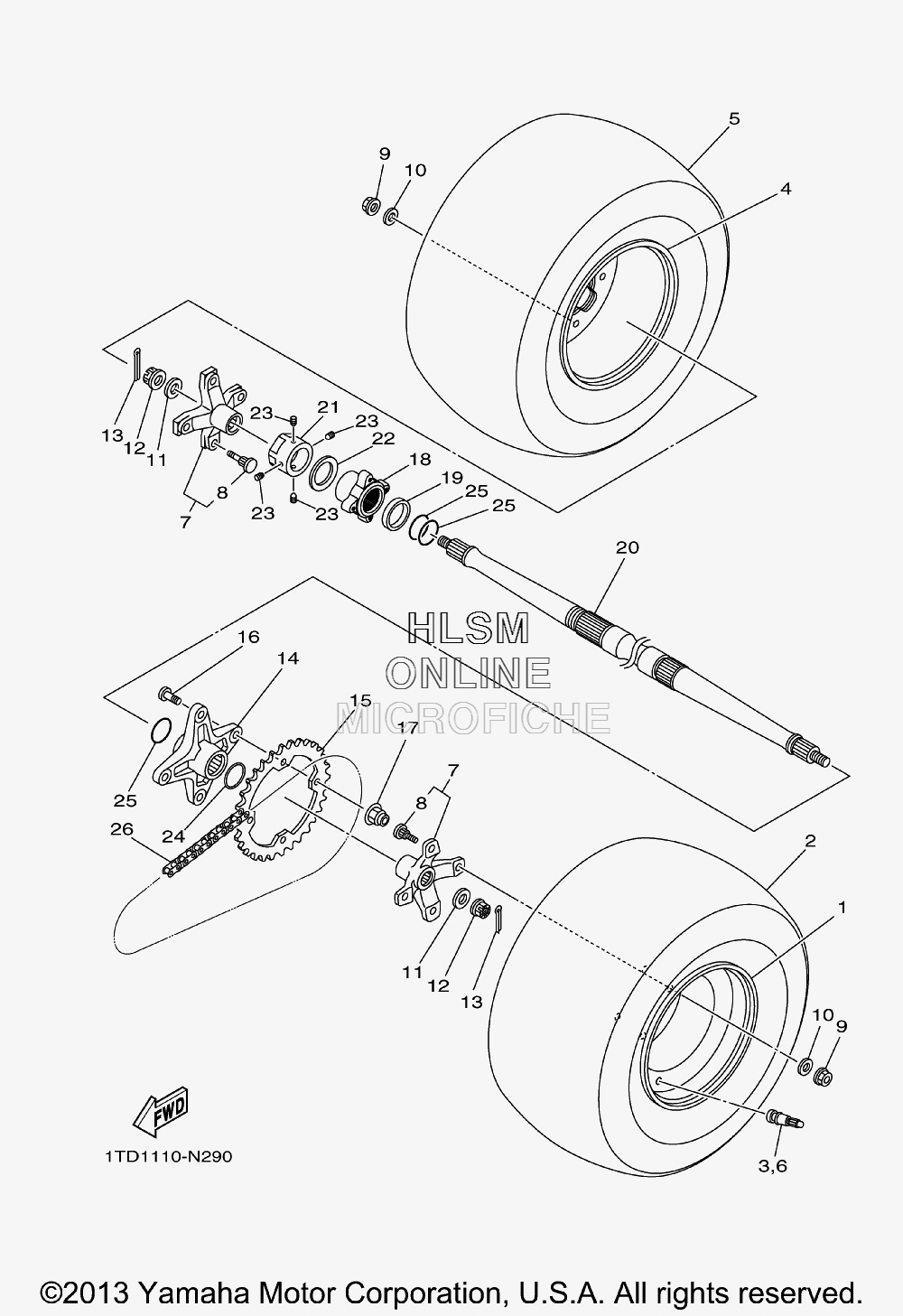

WHEEL - REAR W/ AXLE ASSY для Yamaha YFZ 450R (CARMINE RED) - 2014 года выпуска`
-
№АртикулНазвание
-
11TD-F5390-10-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-09802-00 TIRE (AT20X10R9 MS22**TL) MAXXISTIRE (AT20X10R9 MS22**TL) MAXXIS
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
41TD-F5390-10-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
594110-09802-00 TIRE (AT20X10R9 MS22**TL) MAXXISTIRE (AT20X10R9 MS22**TL) MAXXIS
-
693900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
718P-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
890114-10013-00 ...BOLT, SERRATION...BOLT, SERRATION
-
995702-10500-00 NUT, FLANGENUT, FLANGE
-
1092902-10200-00 WASHERWASHER
-
1190201-16023-00 WASHER, PLATEWASHER, PLATE
-
1290171-16002-00 NUT, CASTLENUT, CASTLE
-
1390252-03001-00 PIN, COTTERPIN, COTTER
-
1418P-25386-00-00 COLLAR, SPROCKET AXLECOLLAR, SPROCKET AXLE
-
155TG-25438-10-00 SPROCKET, DRIVEN (38T)SPROCKET, DRIVEN (38T)
-
1690109-10013-00 BOLTBOLT
-
1790185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
181TD-F5712-00-00 BRACKET, DISCBRACKET, DISC
-
1990387-40001-00 COLLARCOLLAR
-
2018P-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
2190179-38001-00 NUTNUT
-
2290208-39001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2390113-06055-00 BOLT, SETBOLT, SET
-
2418P-25415-00-00 CIRCLIPCIRCLIP
-
2593210-37003-00 O-RINGO-RING
-
2694582-38098-00 CHAIN (DID520MXV4-98LE)CHAIN (DID520MXV4-98LE)
