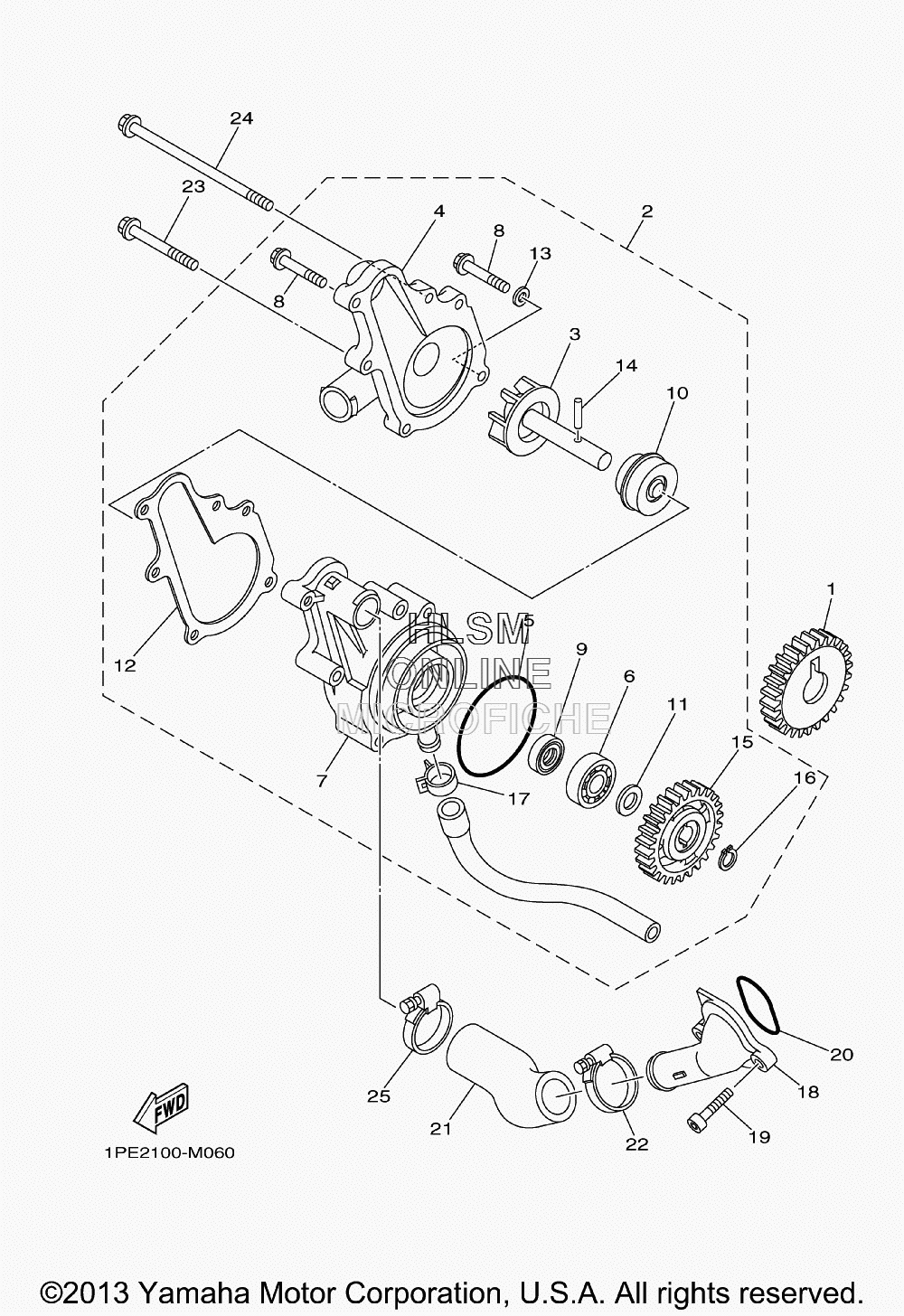

WATER PUMP ASSY для Yamaha RAPTOR 700R SE - 2014 года выпуска`
-
№АртикулНазвание
-
11S3-12436-00-00 GEAR, DRIVEGEAR, DRIVE
-
21S3-12420-00-00 WATER PUMP ASSYWATER PUMP ASSY
-
31S3-12450-00-00 ...IMPELLER SHAFT ASSY...IMPELLER SHAFT ASSY
-
41S3-12422-00-00 ...COVER, HOUSING...COVER, HOUSING
-
593210-61750-00 ...O-RING...O-RING
-
693306-00106-00 ...BEARING...BEARING
-
71S3-12421-00-00 ...HOUSING, WATER PUMP...HOUSING, WATER PUMP
-
895022-06025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
993101-12173-00 ...OIL SEAL S-TYPE...OIL SEAL S-TYPE
-
104C8-12438-00-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
1190201-12541-00 ...WASHER, PLATE...WASHER, PLATE
-
121S3-12428-00-00 ...GASKET, HOUSING COVER 2...GASKET, HOUSING COVER 2
-
1390430-06014-00 ...GASKET...GASKET
-
1493603-16219-00 ...PIN, DOWEL...PIN, DOWEL
-
155VK-12459-00-00 ...GEAR, IMPELLER SHAFT...GEAR, IMPELLER SHAFT
-
1699009-12400-00 ...CIRCLIP...CIRCLIP
-
1790467-13062-00 ...CLIP...CLIP
-
181S3-12469-00-00 JOINT 1JOINT 1
-
1991312-06020-00 BOLTBOLT
-
2093210-33786-00 O-RINGO-RING
-
211S3-12577-00-00 HOSE 2HOSE 2
-
2290450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2395022-06050-00 BOLT, FLANGEBOLT, FLANGE
-
2495022-06110-00 BOLT, FLANGEBOLT, FLANGE
-
2590450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
