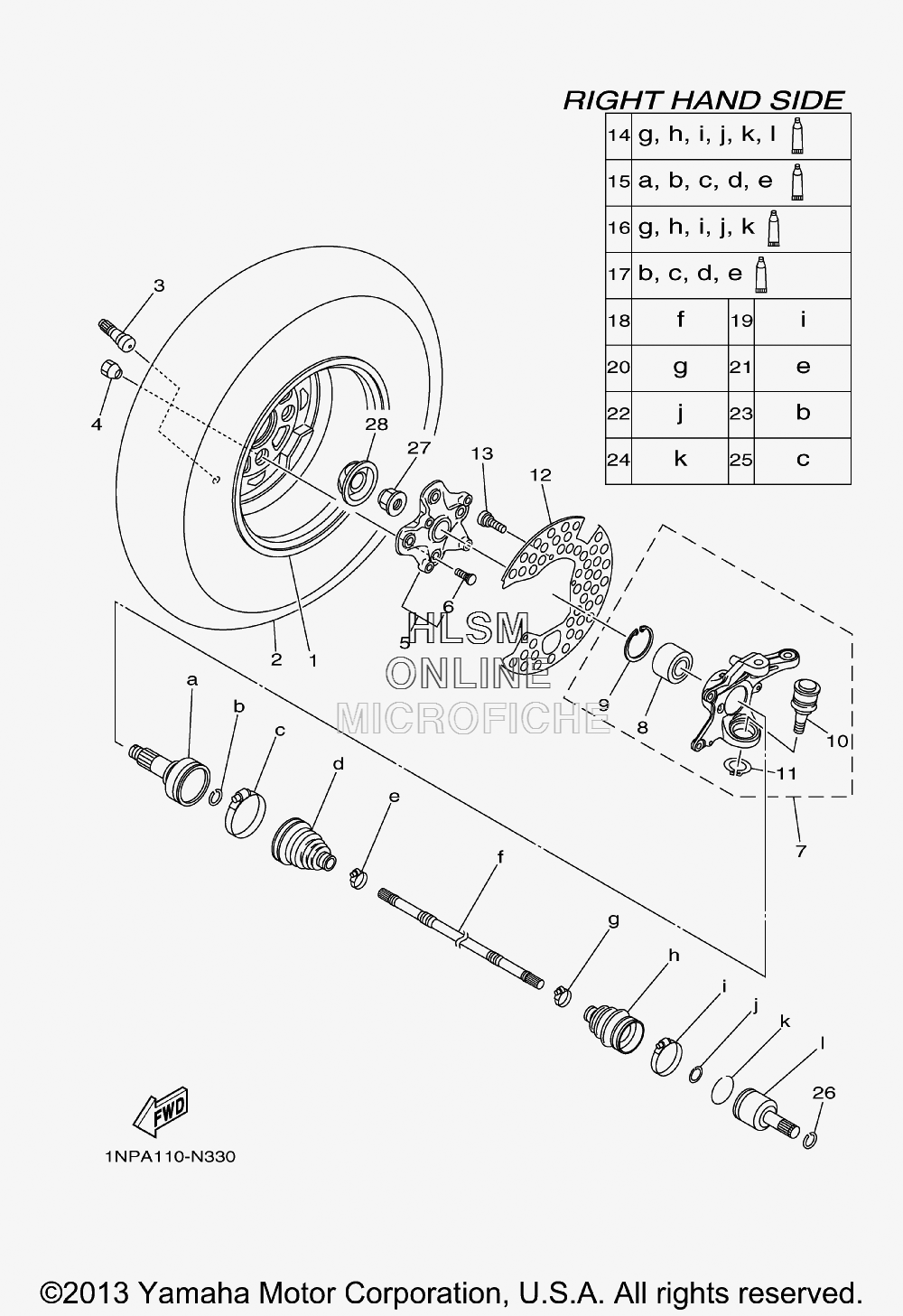

WHEEL - FRONT RIGHT SIDE W/ AXLE ASSY для Yamaha GRIZZLY 550 FI - 2014 года выпуска`
-
№АртикулНазвание
-
11ND-F5180-11-00 WHEEL COMP.WHEEL COMP.
-
294108-12817-00 TIRE (AT25X8-12 MU19**TL) MAXXISTIRE (AT25X8-12 MU19**TL) MAXXIS
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
490179-10020-00 NUTNUT
-
53B4-25111-11-00 HUB, FRONTHUB, FRONT
-
690114-10014-00 ...BOLT, SERRATION...BOLT, SERRATION
-
72BG-F3502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
893305-00602-00 ...BEARING...BEARING
-
999009-55500-00 ...CIRCLIP...CIRCLIP
-
103B4-23579-01-00 ...BALL JOINT 2...BALL JOINT 2
-
1199009-30400-00 ...CIRCLIP...CIRCLIP
-
121HP-F514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
1398902-06010-00 SCREW, BINDSCREW, BIND
-
1428P-2510J-01-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
1528P-2510F-04-00 BALL JOINT SETBALL JOINT SET
-
1628P-2510H-01-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
1728P-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
1828P-2518E-00-00 SHAFTSHAFT
-
193B4-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
203B4-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
2128P-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
223B4-2512J-00-00 SNAP RINGSNAP RING
-
233B4-2512H-00-00 CIRCLIPCIRCLIP
-
243B4-25182-00-00 CIRCLIPCIRCLIP
-
2528P-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
2693450-22119-00 CIRCLIPCIRCLIP
-
2790179-20016-00 NUTNUT
-
281HP-F512A-00-00 CAP, WHEELCAP, WHEEL
