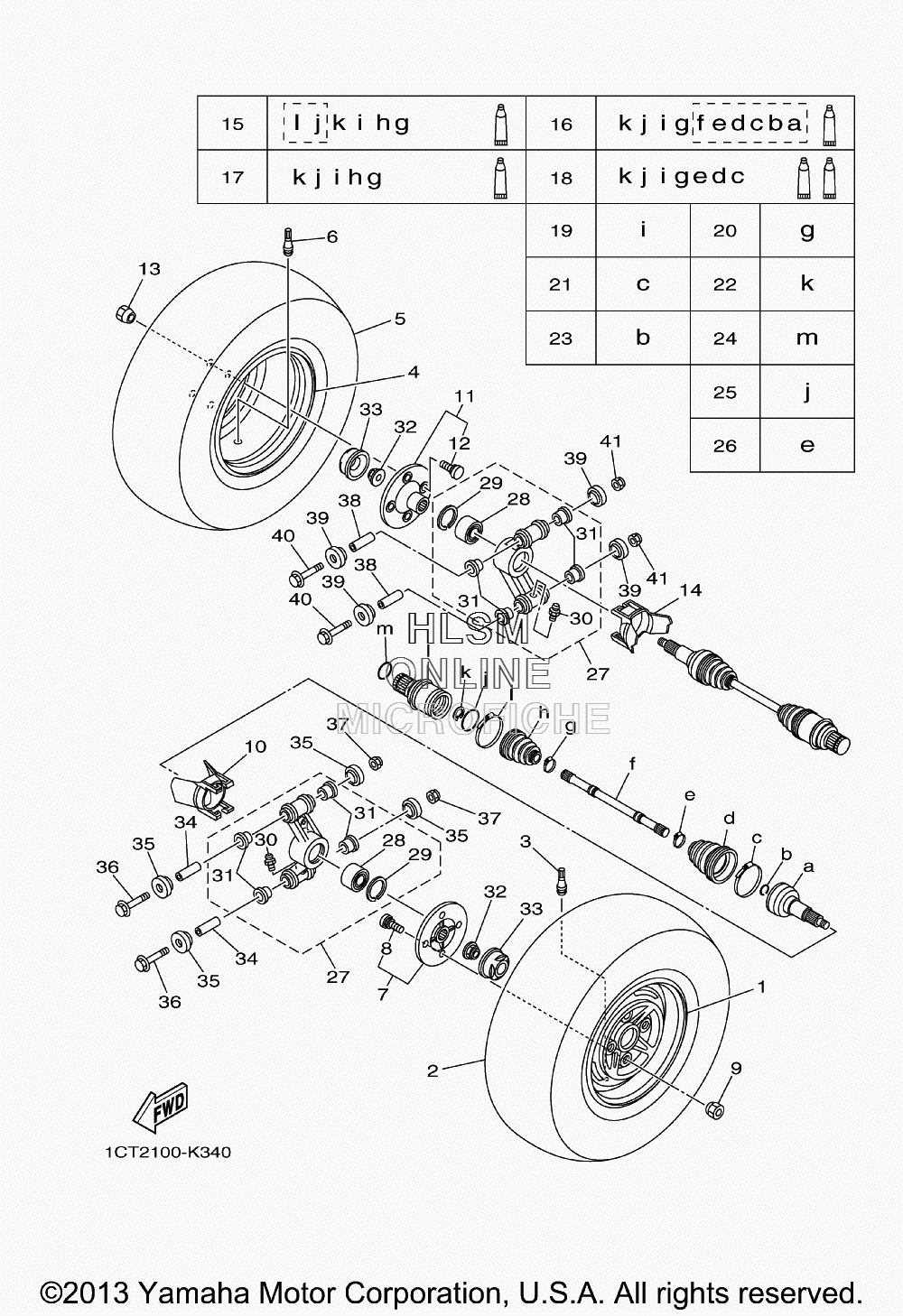

WHEEL - REAR W/ AXLE ASSY для Yamaha GRIZZLY 450 EPS HUNTING - 2014 года выпуска`
-
№АртикулНазвание
-
11D9-F5390-10-00 REAR RIM (BLACK) 12REAR RIM (BLACK) 12
-
294110-12813-00 TIRE (AT25X10-12 MU14TL) CHENG SHINTIRE (AT25X10-12 MU14TL) CHENG SHIN
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
41D9-F5390-10-00 REAR RIM (BLACK) 12REAR RIM (BLACK) 12
-
594110-12813-00 TIRE (AT25X10-12 MU14TL) CHENG SHINTIRE (AT25X10-12 MU14TL) CHENG SHIN
-
693900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
71D9-F532E-01-00 HUB SUB-ASSYHUB SUB-ASSY
-
890114-10014-00 ...BOLT, SERRATION...BOLT, SERRATION
-
990179-10022-00 NUTNUT
-
1017S-F1629-00-00 GUARD, MUDGUARD, MUD
-
111D9-F532E-01-00 HUB SUB-ASSYHUB SUB-ASSY
-
1290114-10014-00 ...BOLT, SERRATION...BOLT, SERRATION
-
1390179-10022-00 NUTNUT
-
1417S-F1629-00-00 GUARD, MUDGUARD, MUD
-
151CT-2530V-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
161CT-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
171CT-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
181CT-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
193B4-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
203B4-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
213HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
223B4-2512J-00-00 SNAP RINGSNAP RING
-
234KB-2512H-00-00 CIRCLIPCIRCLIP
-
243B4-2536E-00-00 CLIP, SPRINGCLIP, SPRING
-
253B4-25182-00-00 CIRCLIPCIRCLIP
-
263HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
271D9-F532F-01-00 REAR KNUCKLE ASSY.,2REAR KNUCKLE ASSY.,2
-
2893305-00602-00 ...BEARING...BEARING
-
2999009-55500-00 ...CIRCLIP...CIRCLIP
-
3093700-06009-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
3190381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
3290179-20016-00 NUTNUT
-
332P5-F512A-00-00 CAP, WHEELCAP, WHEEL
-
345KM-23448-00-00 SPACERSPACER
-
352NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
3690105-10185-00 BOLT, FLANGEBOLT, FLANGE
-
3790185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
385KM-23448-00-00 SPACERSPACER
-
392NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
4090105-10185-00 BOLT, FLANGEBOLT, FLANGE
-
4190185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
