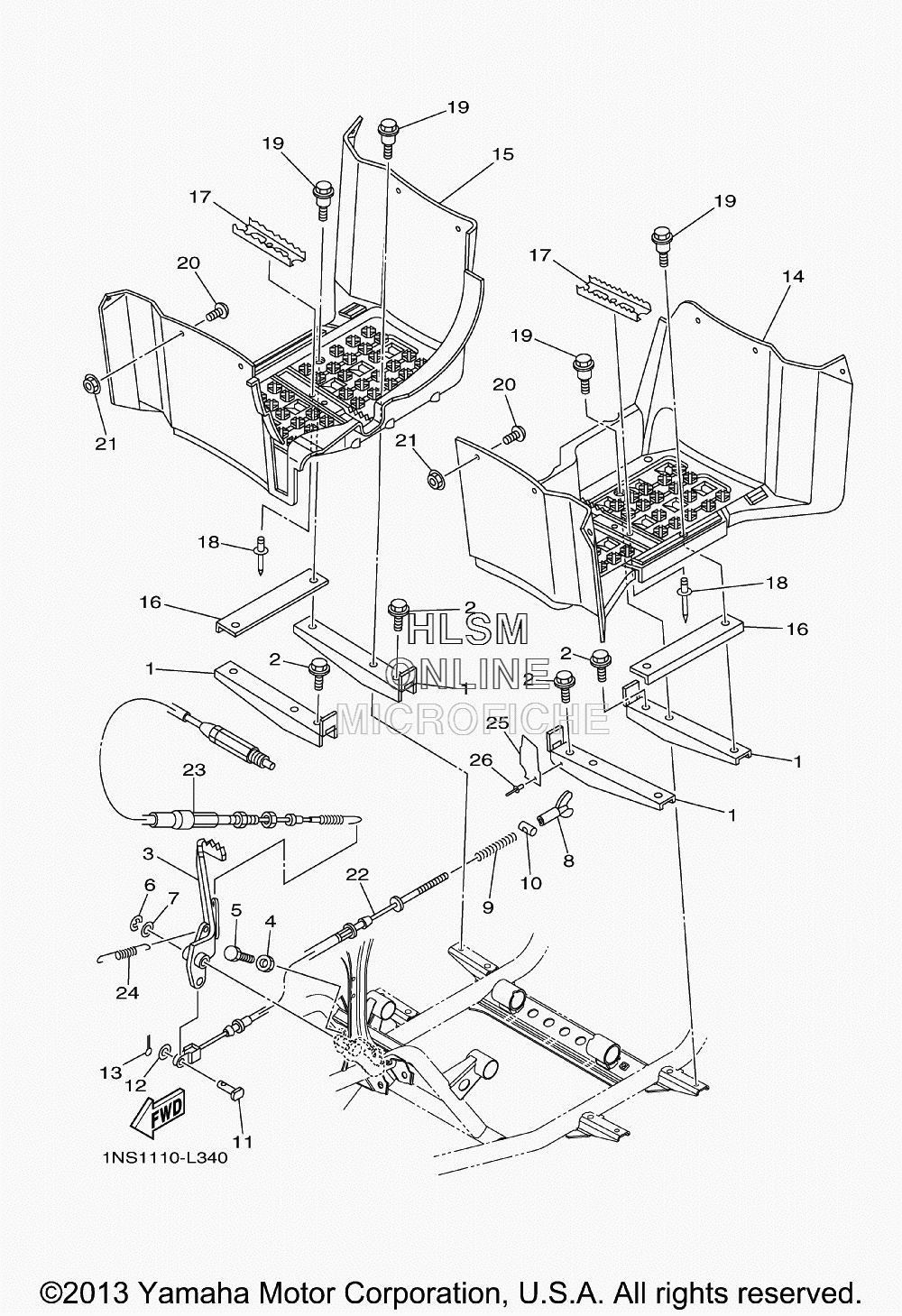

FOOTREST W/ BRAKE PEDAL для Yamaha GRIZZLY 350 HUNTING - 2014 года выпуска`
-
№АртикулНазвание
-
15ND-F7471-01-00 BAR, FOOTREST 1BAR, FOOTREST 1
-
295812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
35TE-F7211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
495312-06700-00 NUTNUT
-
597012-06020-00 BOLTBOLT
-
693430-10015-00 CIRCLIP E-TYPECIRCLIP E-TYPE
-
790201-14023-00 WASHER, PLATEWASHER, PLATE
-
820E-26343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
990501-10782-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1090249-12008-00 PIN SPEC'L SHAPEPIN SPEC'L SHAPE
-
1190240-08005-00 PIN, CLEVISPIN, CLEVIS
-
1290201-08066-00 WASHER, PLATEWASHER, PLATE
-
1391402-20020-00 PIN, COTTERPIN, COTTER
-
145ND-F7453-01-00 COVER 1COVER 1
-
155ND-F7463-01-00 COVER 2COVER 2
-
165ND-F7445-00-00 PLATE 1PLATE 1
-
175UH-F741A-10-00 ARM 1ARM 1
-
1890267-489U9-00 RIVET, BLINDRIVET, BLIND
-
1990109-06262-00 BOLTBOLT
-
2090149-05034-00 SCREWSCREW
-
2195602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
221NS-26361-00-00 CABLE, BRAKECABLE, BRAKE
-
235GH-2637F-10-00 CABLE, CONTROL 2CABLE, CONTROL 2
-
2490506-12403-00 SPRING, TENSIONSPRING, TENSION
-
255UH-F7445-01-00 PLATE 1PLATE 1
-
2690267-489U1-00 RIVET,BLINDRIVET,BLIND
