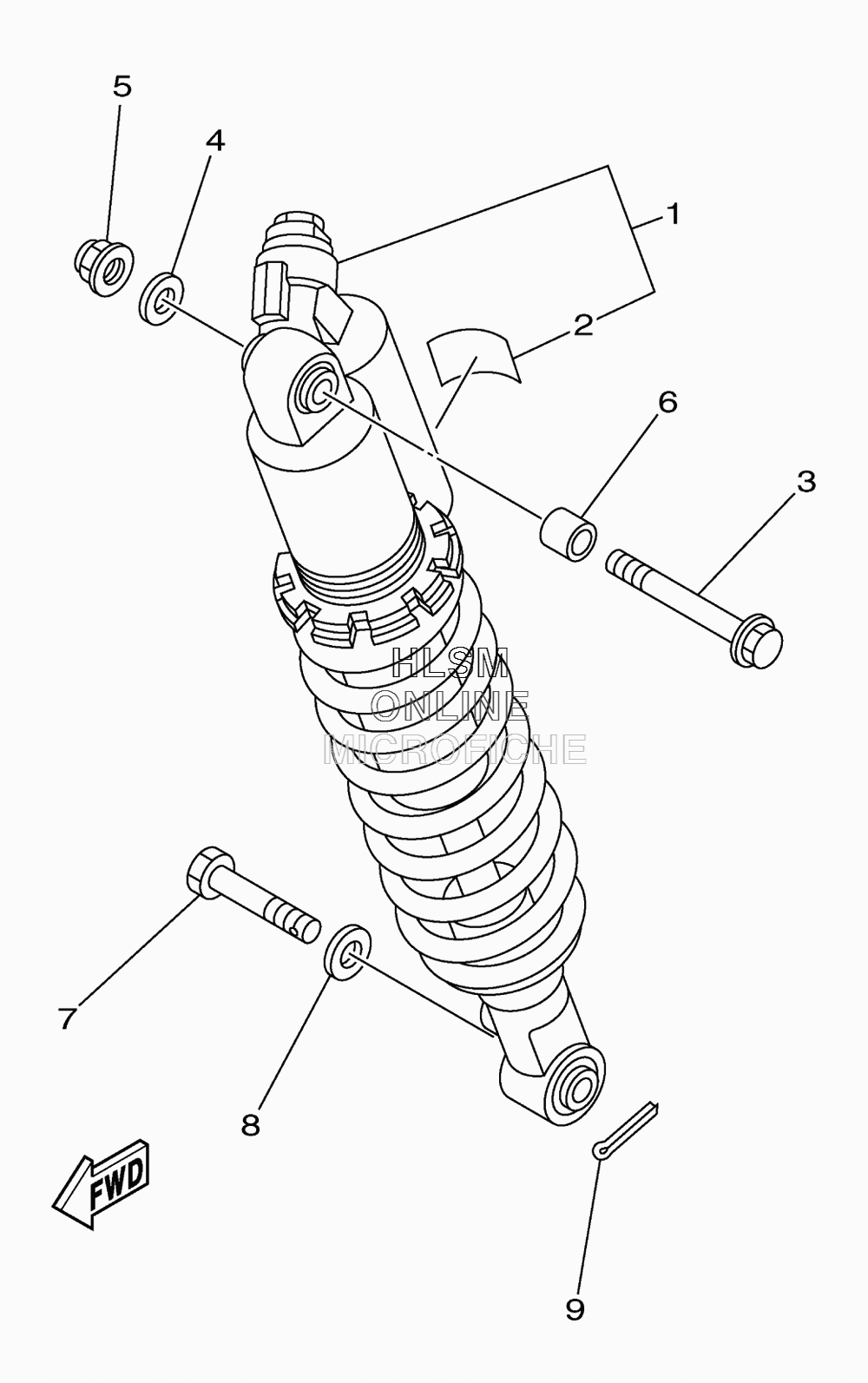

SUSPENSION - REAR SHOCK ABSORBER для Yamaha YFZ 450R SPECIAL EDITION - 2013 года выпуска`
-
№АртикулНазвание
-
118P-22210-H0-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
24AA-22259-80-00 ...LABEL, WARNING...LABEL, WARNING
-
390105-12038-00 BOLT, FLANGEBOLT, FLANGE
-
490201-12032-00 WASHER, PLATEWASHER, PLATE
-
590185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
690387-12046-00 COLLARCOLLAR
-
790102-12005-00 BOLT, PIN HOLE HEX.BOLT, PIN HOLE HEX.
-
890201-12034-00 WASHER, PLATEWASHER, PLATE
-
991402-30025-00 PIN, COTTERPIN, COTTER
