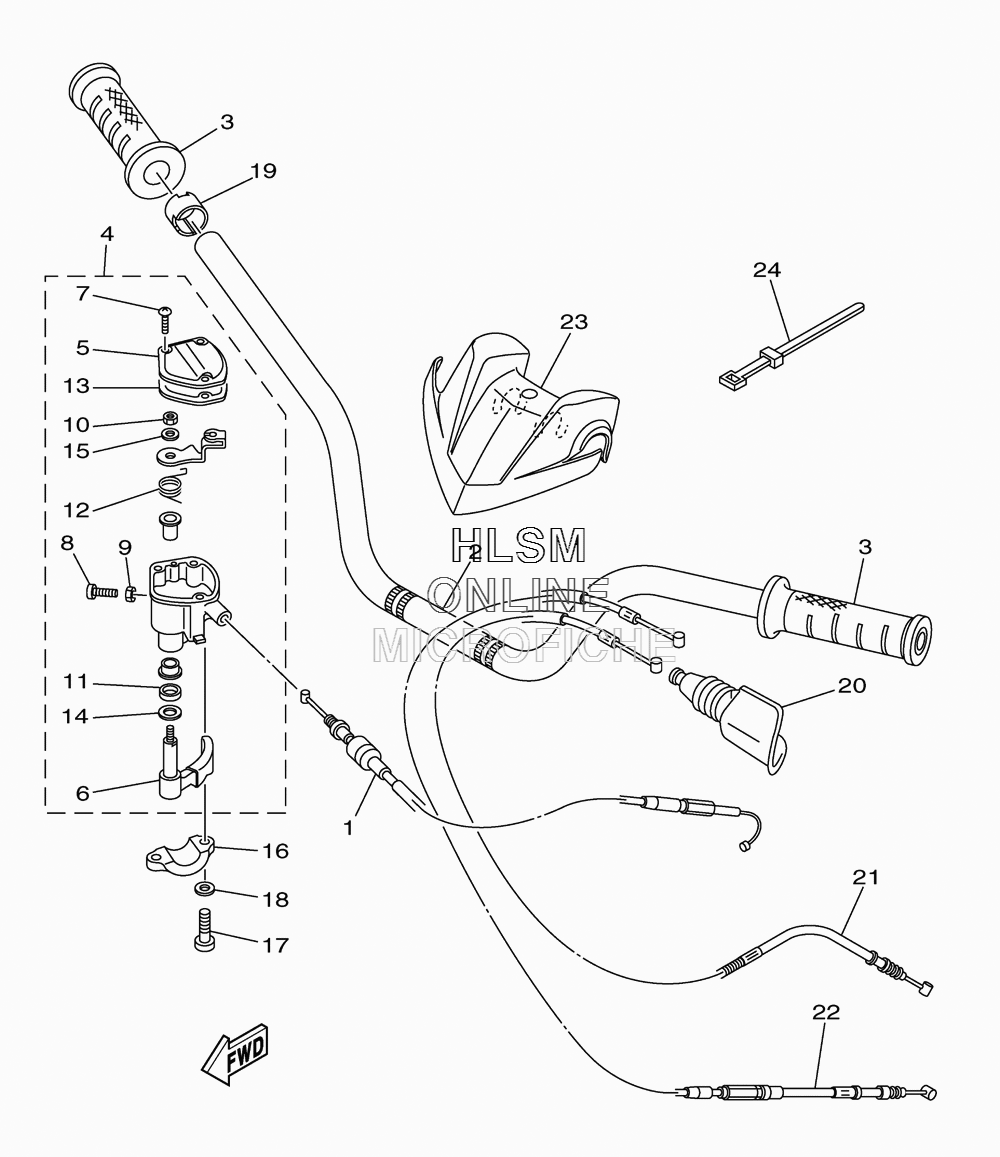

HANDLEBAR W/ CABLES для Yamaha YFZ 450 - 2013 года выпуска`
-
№АртикулНазвание
-
11PD-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
25TG-26111-30-00 HANDLEBARHANDLEBAR
-
35LP-26241-00-00 GRIPGRIP
-
44KB-26250-21-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
54KB-2628F-20-00 ...CAP, GEAR...CAP, GEAR
-
61NV-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
74KB-2632G-00-00 ...SCREW...SCREW
-
84KB-26256-00-00 ...SCREW, GRIP END...SCREW, GRIP END
-
995602-05100-00 ...NUT, U...NUT, U
-
104KB-26258-00-00 ...NUT, LOCK...NUT, LOCK
-
1193104-09025-00 ...OIL SEAL, SO-TYPE...OIL SEAL, SO-TYPE
-
121NV-26304-00-00 ...SPRING...SPRING
-
134KB-2628G-00-00 ...GASKET...GASKET
-
141NV-26129-00-00 ...WASHER...WASHER
-
151NV-26398-00-00 ...WASHER...WASHER
-
161S3-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
1798502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1892902-05100-00 WASHER, SPRINGWASHER, SPRING
-
191UY-26259-00-00 COLLARCOLLAR
-
2031A-26372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
211PD-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
225TG-26341-20-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
234D3-26124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
24437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
