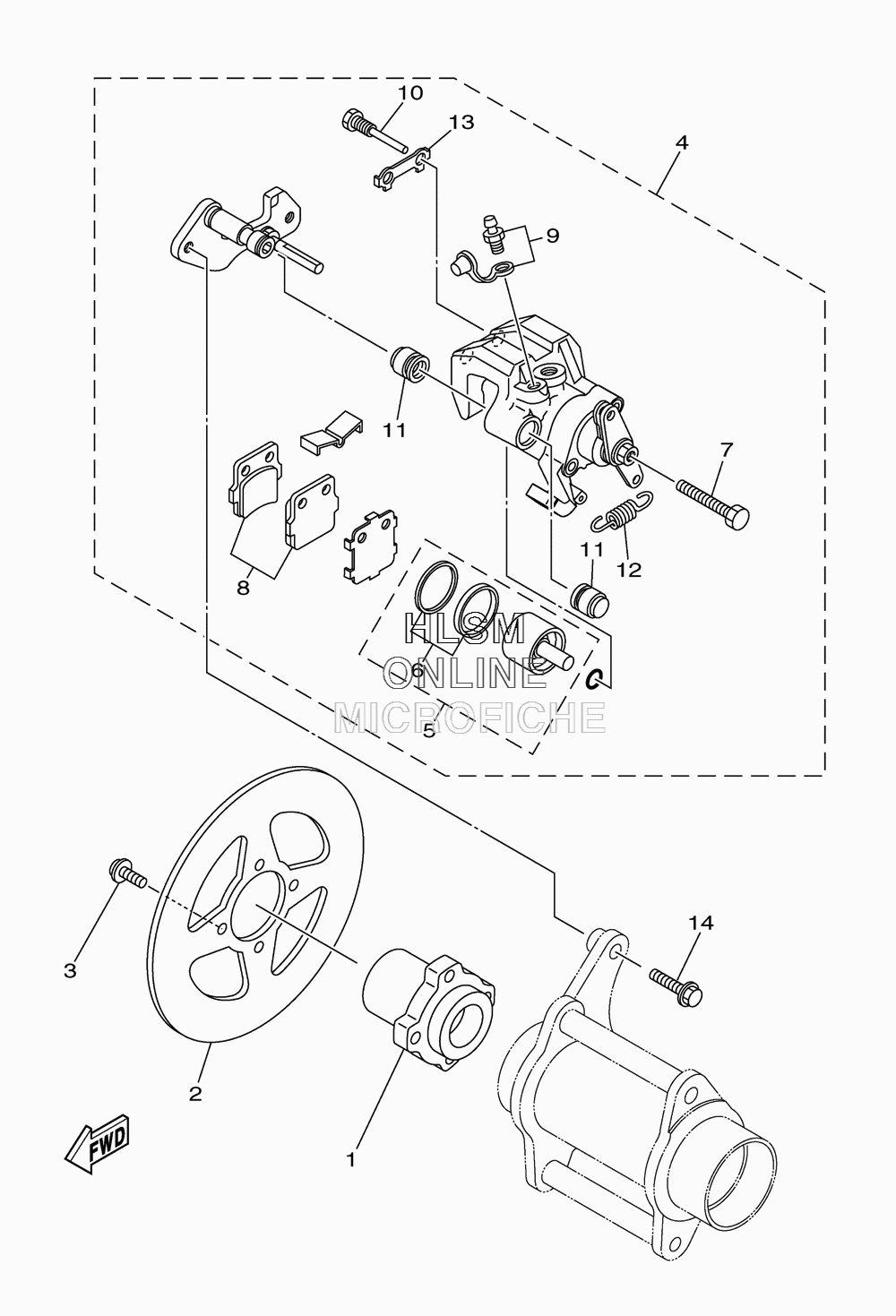

BRAKE - REAR CALIPER для Yamaha RAPTOR 350 - 2013 года выпуска`
-
№АртикулНазвание
-
15YT-25712-00-00 BRACKET, DISCBRACKET, DISC
-
25TG-2582W-00-00 DISK, REAR BRAKE 2DISK, REAR BRAKE 2
-
390109-081F0-00 BOLTBOLT
-
45YT-2580W-00-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
55LP-W0057-50-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
65LP-W0047-50-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
71UY-25972-51-00 ...ADJUST BOLT...ADJUST BOLT
-
85LP-W0046-50-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
91UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
101UY-25924-51-00 ...PIN, PAD...PIN, PAD
-
111UY-25917-51-00 ...BOOT, CALIPER...BOOT, CALIPER
-
125YT-25977-50-00 ...SPRING, RETURN...SPRING, RETURN
-
131UY-25933-51-00 ...LOCK WASHER - BRAKE...LOCK WASHER - BRAKE
-
1490105-08182-00 BOLT, FLANGEBOLT, FLANGE
