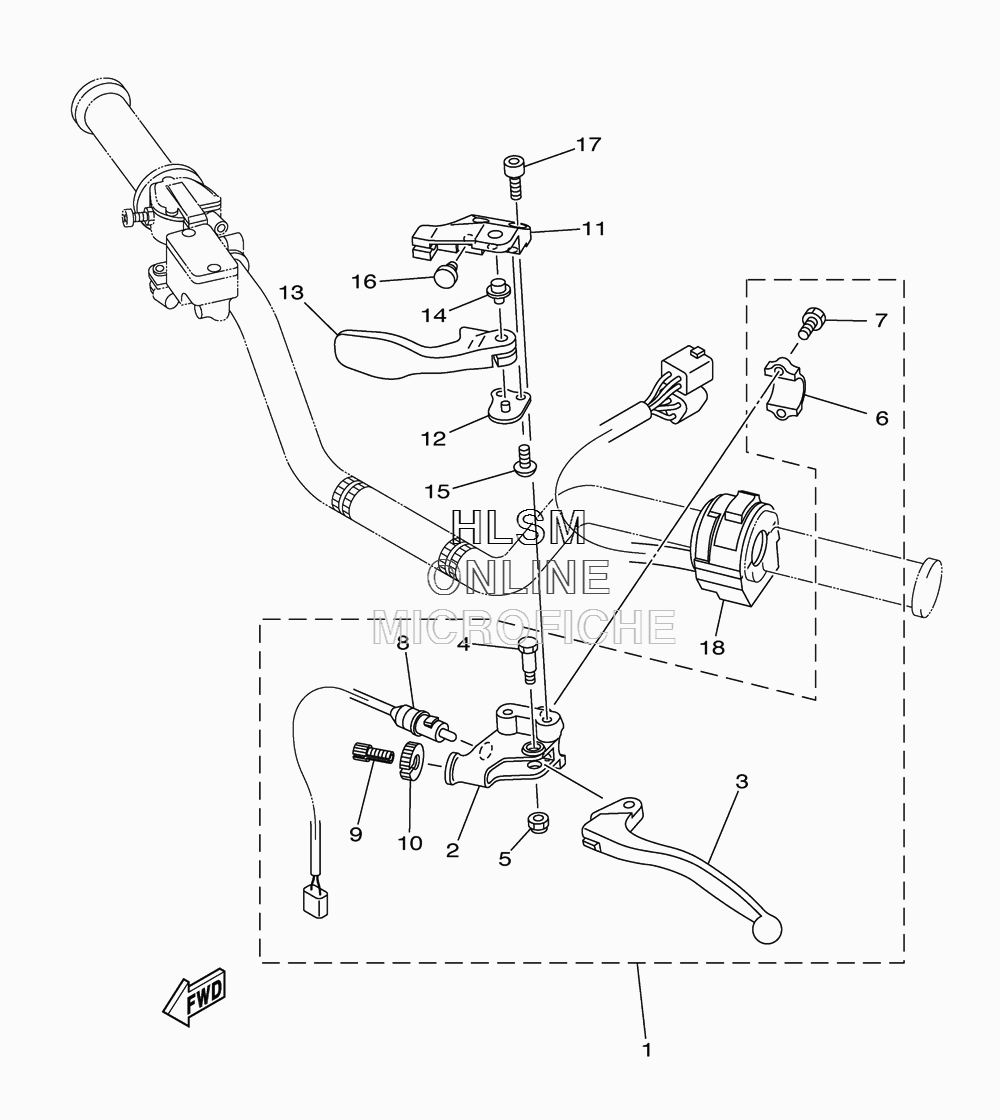

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha RAPTOR 250 - 2013 года выпуска`
-
№АртикулНазвание
-
14D3-82910-00-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
25YT-82911-10-00 ...HOLDER, LEVER 1...HOLDER, LEVER 1
-
33RN-83912-00-00 ...LEVER 1...LEVER 1
-
490109-06798-00 ...BOLT...BOLT
-
595602-06100-00 ...NUT, U...NUT, U
-
65TG-82913-00-00 ...HOLDER, LEVER LOWER 1...HOLDER, LEVER LOWER 1
-
797002-05016-00 ...BOLT...BOLT
-
85KM-82917-00-00 ...SWITCH...SWITCH
-
990123-08046-00 ...BOLT...BOLT
-
1090179-08148-00 ...NUT, SPEC'L SHAPE...NUT, SPEC'L SHAPE
-
115TG-25727-01-00 BRACKET, LEVERBRACKET, LEVER
-
125D3-25689-00-00 PLATE, GUIDEPLATE, GUIDE
-
135TG-25726-01-00 LEVER, BRAKELEVER, BRAKE
-
145TG-83923-00-00 COLLAR, LEVER 2COLLAR, LEVER 2
-
1592012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1690338-07007-00 PLUGPLUG
-
1792012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
184KB-83973-21-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
