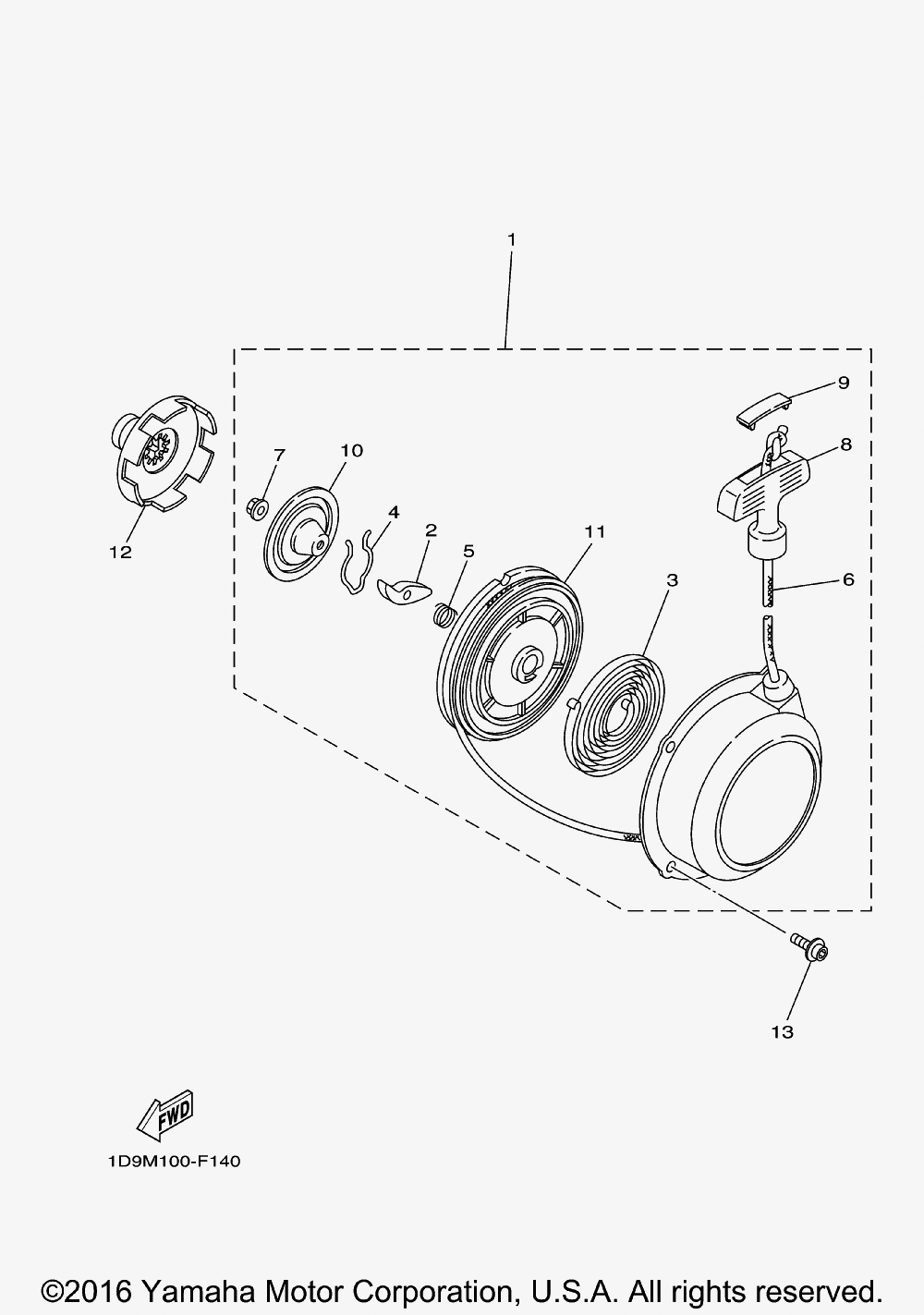

ENGINE, ALTERNATE для Yamaha GRIZZLY 450 4WD - 2013 года выпуска`
-
№АртикулНазвание
-
15UH-15710-00-00 STARTER ASSY (OPT)STARTER ASSY (OPT)
-
221V-15741-00-00 ...PAWL, DRIVE...PAWL, DRIVE
-
35UH-15713-00-00 ...SPRING, STARTER...SPRING, STARTER
-
421V-15715-01-00 ...SPRING, FRICTION...SPRING, FRICTION
-
521V-15767-00-00 ...SPRING...SPRING
-
621V-15751-00-00 ...WIRE, STARTER...WIRE, STARTER
-
795702-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
83X3-15755-00-00 ...HANDLE, STARTER...HANDLE, STARTER
-
921V-15779-00-00 ...COVER...COVER
-
105UH-15716-00-00 ...PLATE, DRIVE...PLATE, DRIVE
-
1124W-15714-00-00 ...DRUM, SHEAVE...DRUM, SHEAVE
-
121UY-15723-00-00 PULLEY, STARTER (OPT)PULLEY, STARTER (OPT)
-
1390110-06285-00 BOLT, HEXAGON SOCKET HEAD (OPT)BOLT, HEXAGON SOCKET HEAD (OPT)
