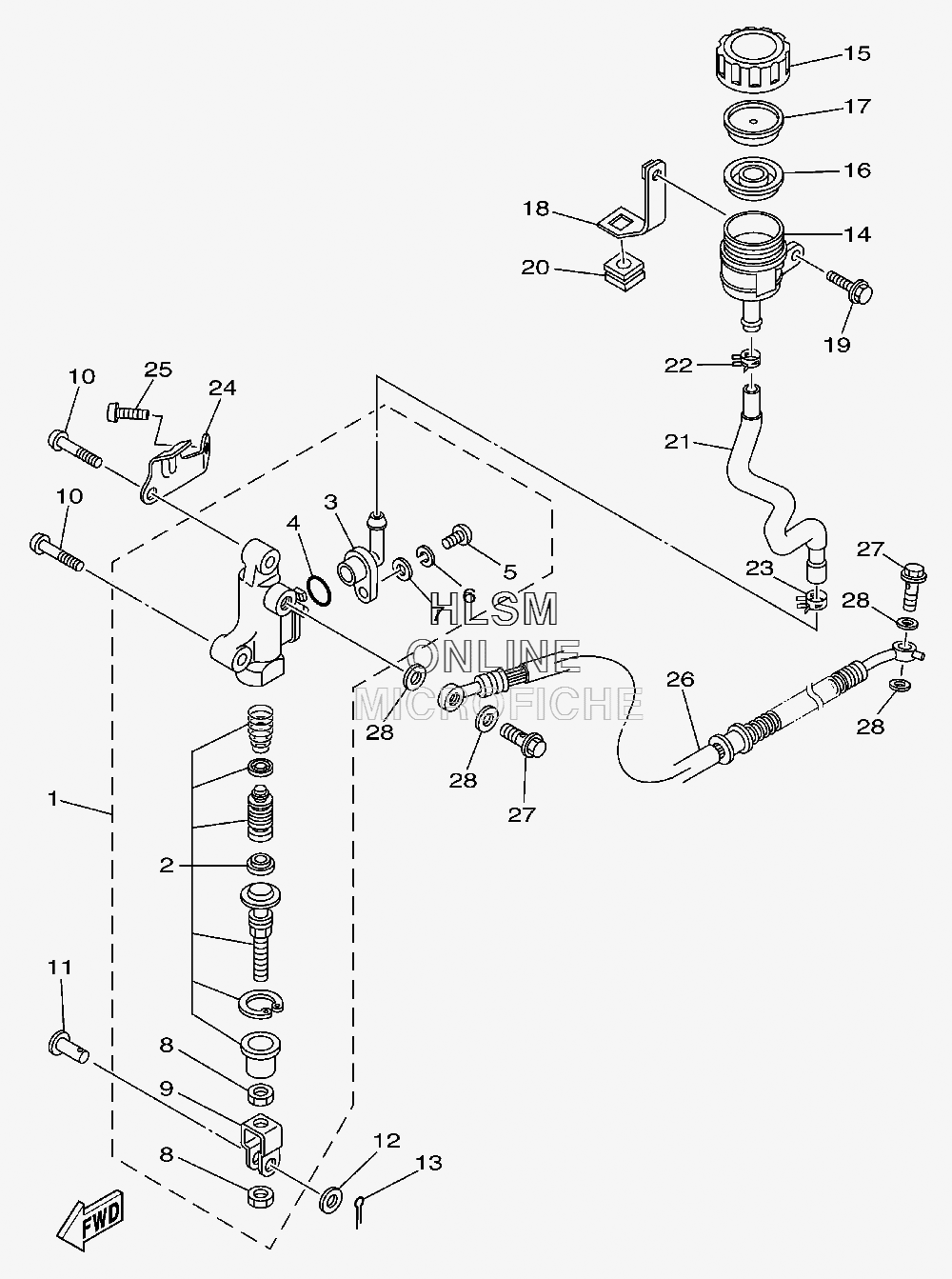

BRAKE - REAR MASTER CYLINDER для Yamaha RAPTOR 700R SPECIAL EDITION - 2012 года выпуска`
-
№АртикулНазвание
-
11S3-2580E-00-00 REAR MASTER CYLINDER ASSYREAR MASTER CYLINDER ASSY
-
21S3-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
31AE-2582A-00-00 ...JOINT...JOINT
-
493210-15620-00 ...O-RING...O-RING
-
598506-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
692906-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
792906-04600-00 ...WASHER, PLATE...WASHER, PLATE
-
84SS-27218-00-00 ...NUT...NUT
-
92YK-27222-00-00 ...JOINT...JOINT
-
1092012-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1190240-08124-00 PIN, CLEVISPIN, CLEVIS
-
1290201-08083-00 WASHER, PLATEWASHER, PLATE
-
1391401-16012-00 PIN, COTTERPIN, COTTER
-
145JJ-25894-01-00 TANK, RESERVOIRTANK, RESERVOIR
-
153XP-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
162VN-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
172VN-25855-00-00 BUSH,DIAPHRAGMBUSH,DIAPHRAGM
-
181S3-26292-00-00 STAYSTAY
-
1990119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2090480-15009-00 GROMMETGROMMET
-
211S3-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2290467-11044-00 CLIP, SCISSORCLIP, SCISSOR
-
2390467-14057-00 CLIP, SCISSORCLIP, SCISSOR
-
241S3-27453-00-00 COVER 1COVER 1
-
2592012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
261S3-25874-10-00 HOSE, BRAKEHOSE, BRAKE
-
2790401-10015-00 BOLT, UNIONBOLT, UNION
-
2890201-10118-00 WASHER, PLATEWASHER, PLATE
