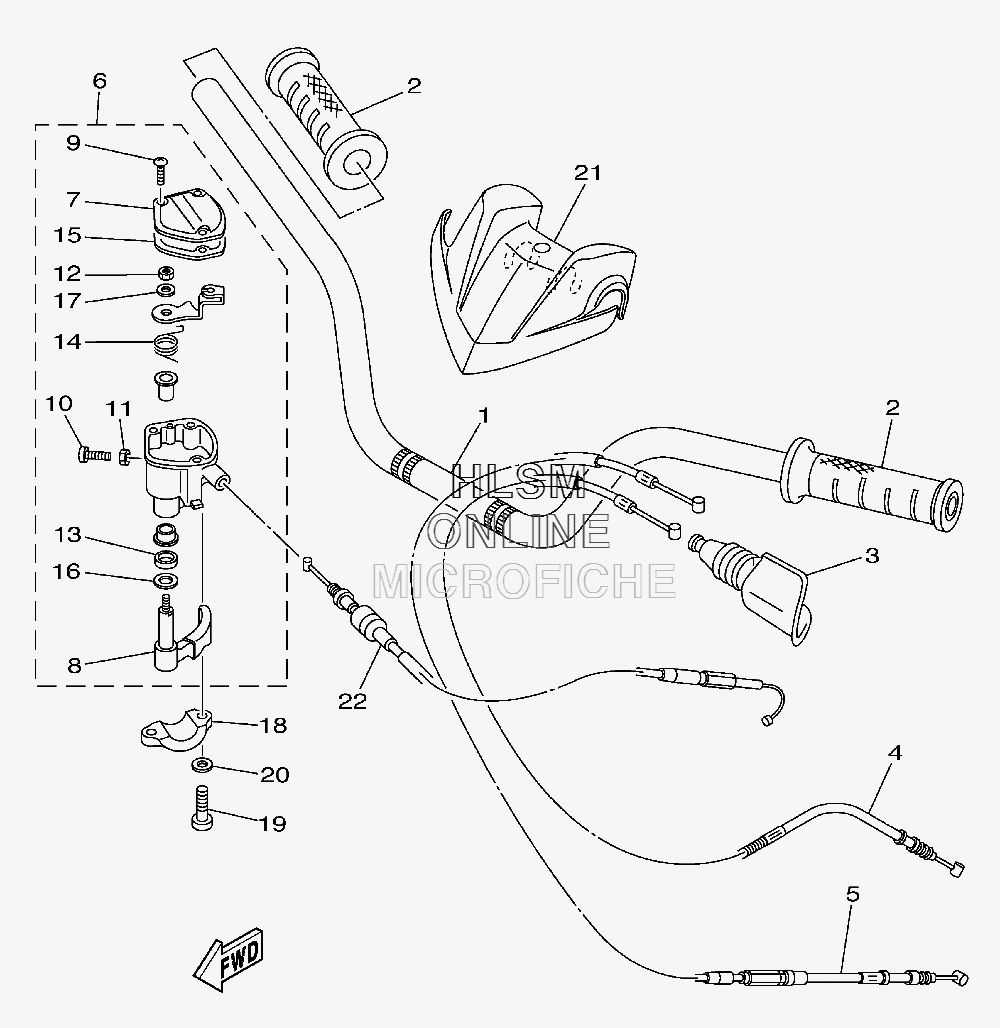

HANDLEBAR W/ CABLES для Yamaha RAPTOR 250 - 2012 года выпуска`
-
№АртикулНазвание
-
14D3-26111-00-00 HANDLEBARHANDLEBAR
-
25LP-26241-00-00 GRIPGRIP
-
331A-26372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
44D3-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
54D3-26341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
64KB-26250-21-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
74KB-2628F-20-00 ...CAP, GEAR...CAP, GEAR
-
81NV-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
94KB-2632G-00-00 ...SCREW...SCREW
-
104KB-26256-00-00 ...SCREW, GRIP END...SCREW, GRIP END
-
1195602-05100-00 ...NUT, U...NUT, U
-
124KB-26258-00-00 ...NUT, LOCK...NUT, LOCK
-
1393104-09025-00 ...OIL SEAL, SO-TYPE...OIL SEAL, SO-TYPE
-
141NV-26304-00-00 ...SPRING...SPRING
-
154KB-2628G-00-00 ...GASKET...GASKET
-
161NV-26129-00-00 ...WASHER...WASHER
-
171NV-26398-00-00 ...WASHER...WASHER
-
181S3-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
1998502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2092902-05600-00 WASHER, PLATEWASHER, PLATE
-
214D3-26124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
224D3-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
