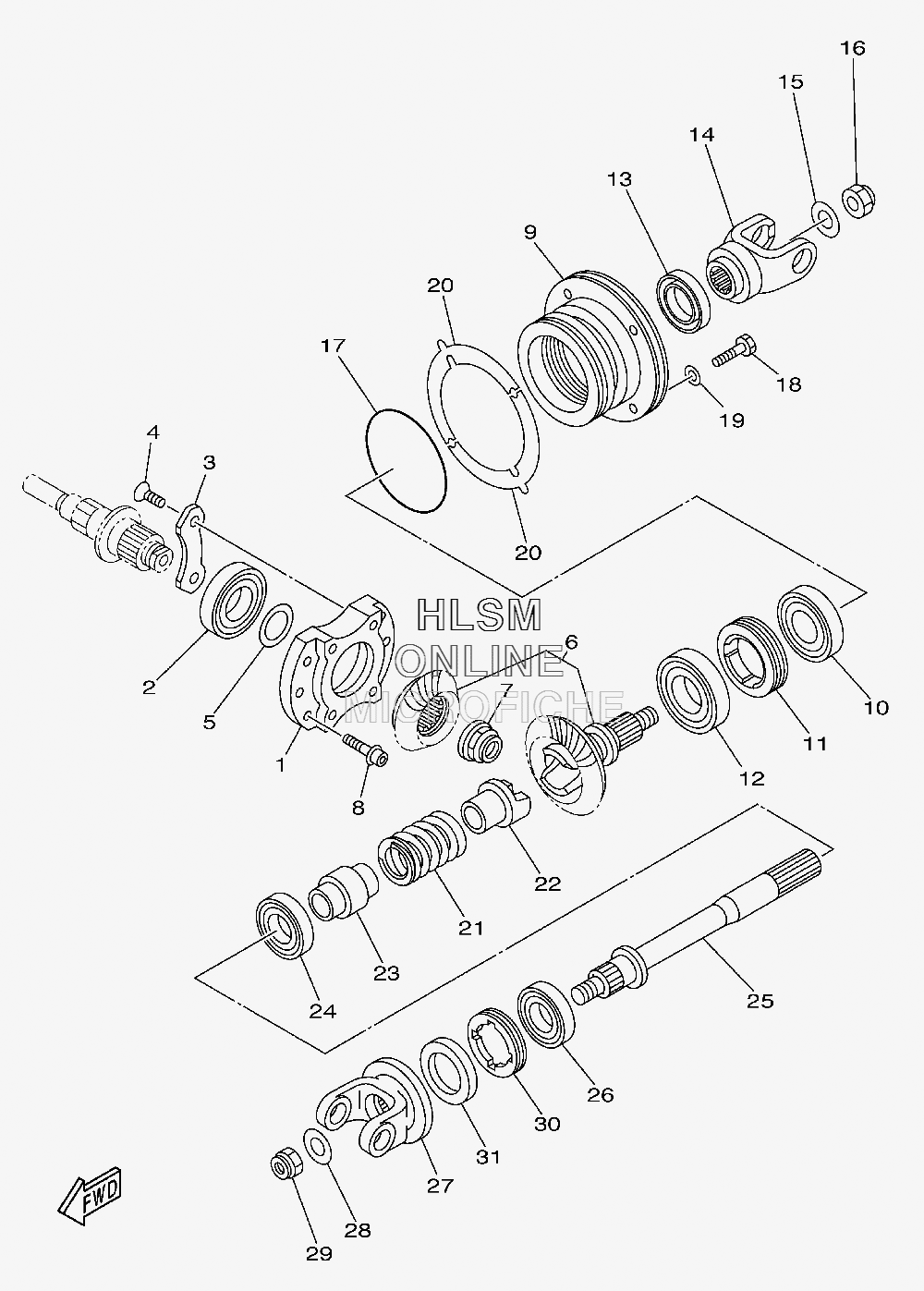

MIDDLE DRIVE GEAR для Yamaha BIG BEAR 400 4WD - 2012 года выпуска
-
№АртикулНазвание
-
14KB-17521-00-00 HOUSING, BEARINGHOUSING, BEARING
-
293306-20636-00 BEARINGBEARING
-
311H-15383-02-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
490149-08013-00 SCREWSCREW
-
552G-17531-41-00 SHIM, PINION (0.4T)SHIM, PINION (0.4T)
-
552G-17531-01-00 SHIM, PINION (0.1T)SHIM, PINION (0.1T)
-
552G-17531-11-00 SHIM, PINION (0.15T)SHIM, PINION (0.15T)
-
552G-17531-21-00 SHIM, PINION (0.2T)SHIM, PINION (0.2T)
-
552G-17531-51-00 SHIM, PINION (0.5T)SHIM, PINION (0.5T)
-
552G-17531-31-00 SHIM, PINION (0.3T)SHIM, PINION (0.3T)
-
64KB-17530-10-00 PINION SETPINION SET
-
790179-22015-00 NUTNUT
-
890110-08088-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
94KB-17551-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1093306-30525-00 BEARINGBEARING
-
1190179-65305-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1293306-20715-00 BEARINGBEARING
-
1393102-35012-00 OIL SEALOIL SEAL
-
141D9-17556-10-00 YOKE, JOINTYOKE, JOINT
-
1590201-166R6-00 WASHER, PLATEWASHER, PLATE
-
1690179-16006-00 NUTNUT
-
1793210-78544-00 O-RINGO-RING
-
1897022-08030-00 BOLTBOLT
-
1992902-08600-00 WASHER, PLATEWASHER, PLATE
-
204KB-17531-10-00 SHIM, PINION (0.15T)SHIM, PINION (0.15T)
-
204KB-17531-60-00 SHIM, PINION (0.60T)SHIM, PINION (0.60T)
-
204KB-17531-50-00 SHIM, PINION (0.50T)SHIM, PINION (0.50T)
-
204KB-17531-20-00 SHIM, PINION (0.20T)SHIM, PINION (0.20T)
-
204KB-17531-30-00 SHIM, PINION (0.30T)SHIM, PINION (0.30T)
-
204KB-17531-40-00 SHIM, PINION (0.40T)SHIM, PINION (0.40T)
-
204KB-17531-00-00 SHIM, PINION (0.10T)SHIM, PINION (0.10T)
-
2190501-605E1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2222U-17527-01-00 CAM, DRIVENCAM, DRIVEN
-
234KB-46123-00-00 COUPLING, GEARCOUPLING, GEAR
-
2493306-00612-00 BEARINGBEARING
-
254KB-1761A-00-00 SHAFT, 1SHAFT, 1
-
2693306-20597-00 BEARINGBEARING
-
275KM-17576-00-00 YOKE,JOINT 2YOKE,JOINT 2
-
2890201-14633-00 WASHER, PLATEWASHER, PLATE
-
2990185-14009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3090179-55660-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
3193102-44454-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
