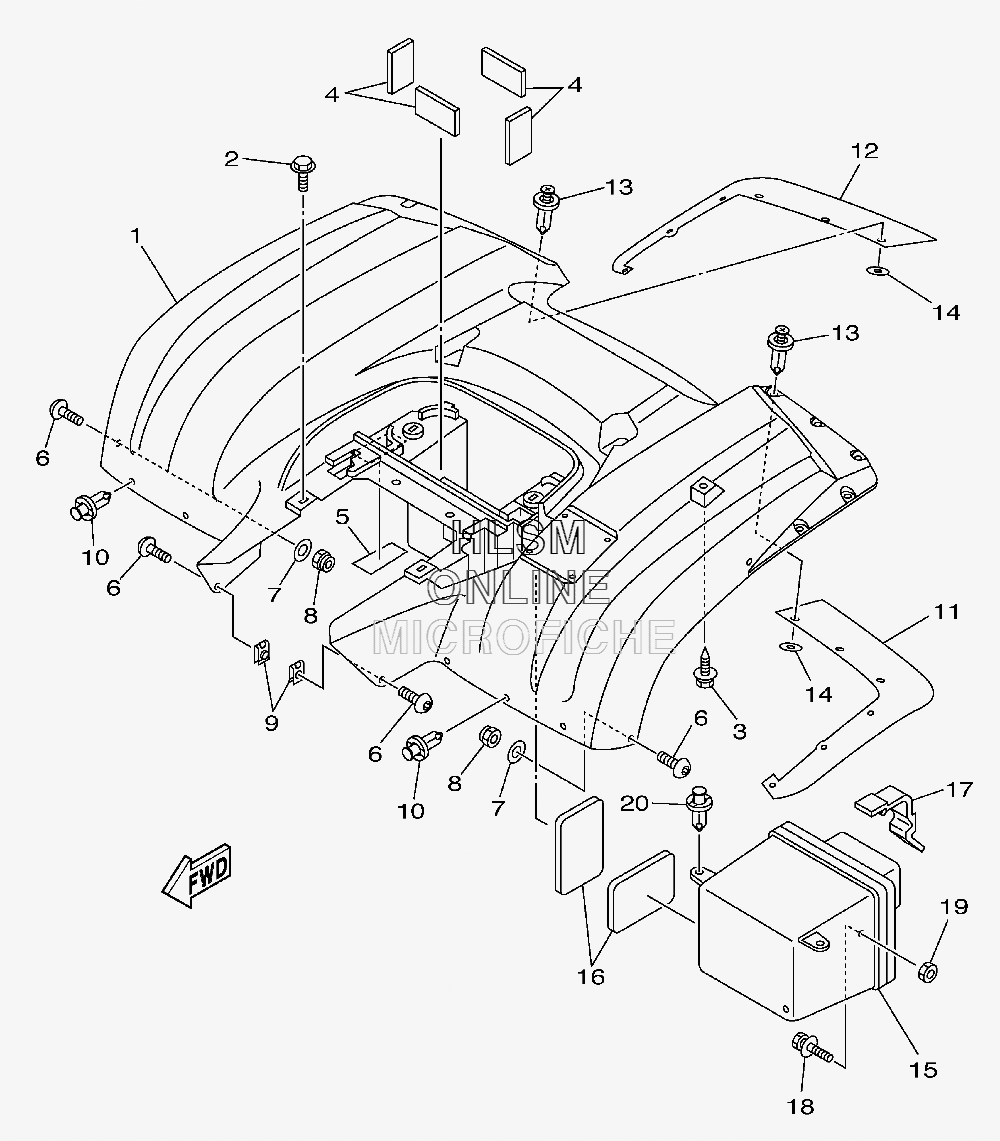

FENDER - REAR для Yamaha BIG BEAR 400 4WD HUNTER - 2012 года выпуска`
-
№АртикулНазвание
-
15FU-F1600-K2-00 REAR FENDER ASSY.REAR FENDER ASSY.
-
290119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390119-06157-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
44XE-F4145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
55FU-F174A-02-00 INSULATOR, SIDE COVERINSULATOR, SIDE COVER
-
690111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
790201-068M4-00 WASHER, PLATEWASHER, PLATE
-
895602-06100-00 NUT, UNUT, U
-
990183-06053-00 NUT, SPRINGNUT, SPRING
-
1090269-08813-00 RIVET, PLASTIC MAT MARIVET, PLASTIC MAT MA
-
115FU-F162H-00-00 FLAP 3FLAP 3
-
125FU-F162J-00-00 FLAP 4FLAP 4
-
1390269-06800-00 RIVETRIVET
-
1490201-068M4-00 WASHER, PLATEWASHER, PLATE
-
154XE-F160A-01-00 BOX COMP.BOX COMP.
-
164S1-F1652-00-00 PROTECTORPROTECTOR
-
1759V-21646-00-00 BANDBAND
-
1890119-06157-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1995702-06500-00 NUT, FLANGENUT, FLANGE
-
2090269-08813-00 RIVET, PLASTIC MAT MARIVET, PLASTIC MAT MA
