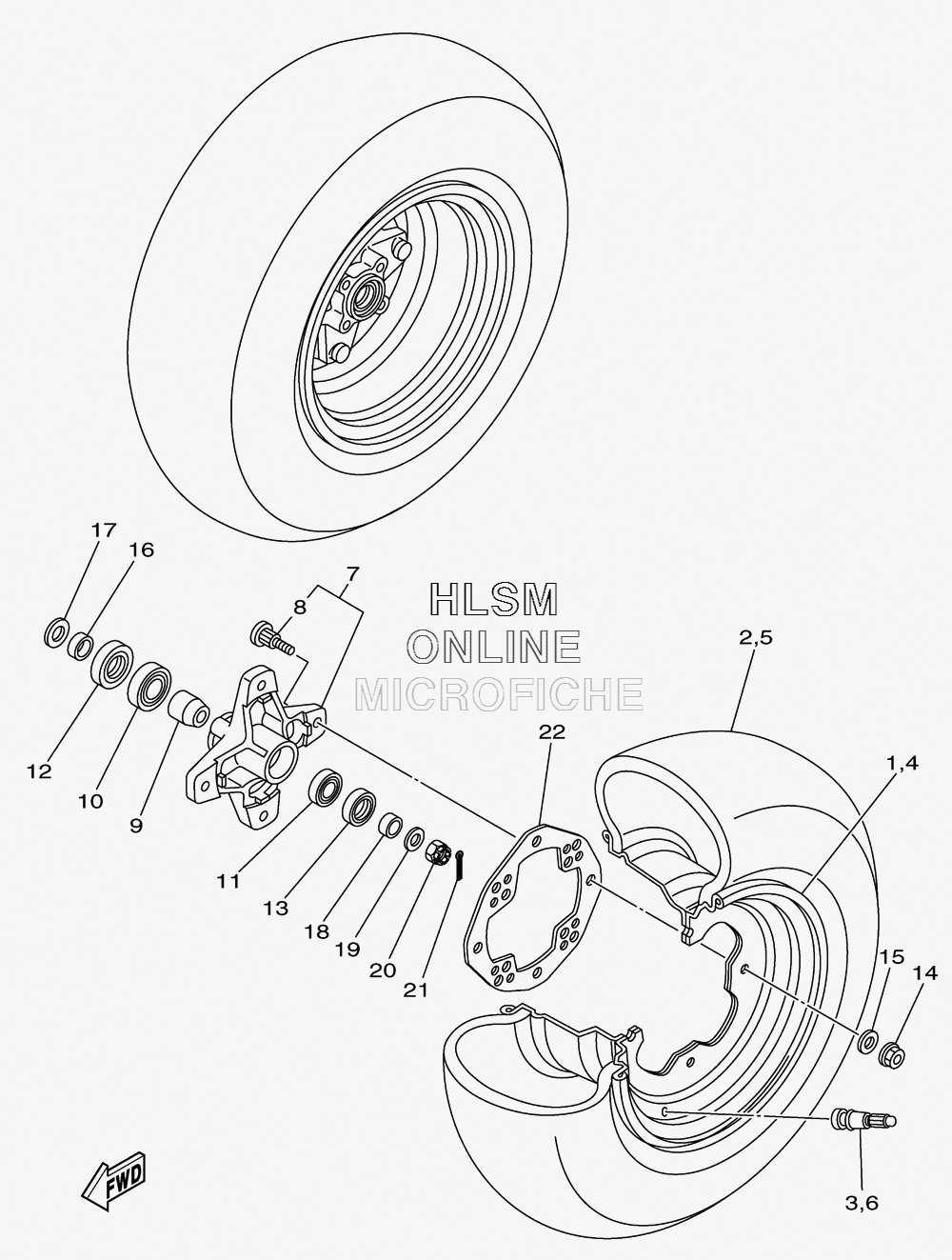

WHEEL - FRONT W/ AXLE ASSY для Yamaha YFZ 450X - 2011 года выпуска`
-
№АртикулНазвание
-
11S3-25180-00-00 WHEEL COMP.WHEEL COMP.
-
294107-10025-00 TIRE (AT21X7R10 KT351 T/L(N)) DUNLOPTIRE (AT21X7R10 KT351 T/L(N)) DUNLOP
-
393900-00030-00 VALVE, RIM (TR412) TAIHEIYOVALVE, RIM (TR412) TAIHEIYO
-
41S3-25180-00-00 WHEEL COMP.WHEEL COMP.
-
594107-10025-00 TIRE (AT21X7R10 KT351 T/L(N)) DUNLOPTIRE (AT21X7R10 KT351 T/L(N)) DUNLOP
-
693900-00030-00 VALVE, RIM (TR412) TAIHEIYOVALVE, RIM (TR412) TAIHEIYO
-
71S3-25111-00-00 HUB, FRONTHUB, FRONT
-
890114-10006-00 BOLT, SERRATIONBOLT, SERRATION
-
95LP-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
1093306-00446-00 BEARINGBEARING
-
1193306-20231-00 BEARINGBEARING
-
1293105-26026-00 OIL SEALOIL SEAL
-
1393102-22216-00 OIL SEALOIL SEAL
-
1495702-10500-00 NUT, FLANGENUT, FLANGE
-
1592902-10200-00 WASHERWASHER
-
1690387-20005-00 COLLARCOLLAR
-
1790201-20022-00 WASHER, PLATEWASHER, PLATE
-
1890387-150R1-00 COLLARCOLLAR
-
1990201-14586-00 WASHER, PLATEWASHER, PLATE
-
2090171-14002-00 NUT, CASTLENUT, CASTLE
-
2191402-30025-00 PIN, COTTERPIN, COTTER
-
221S3-25127-01-00 COVER, PLATECOVER, PLATE
