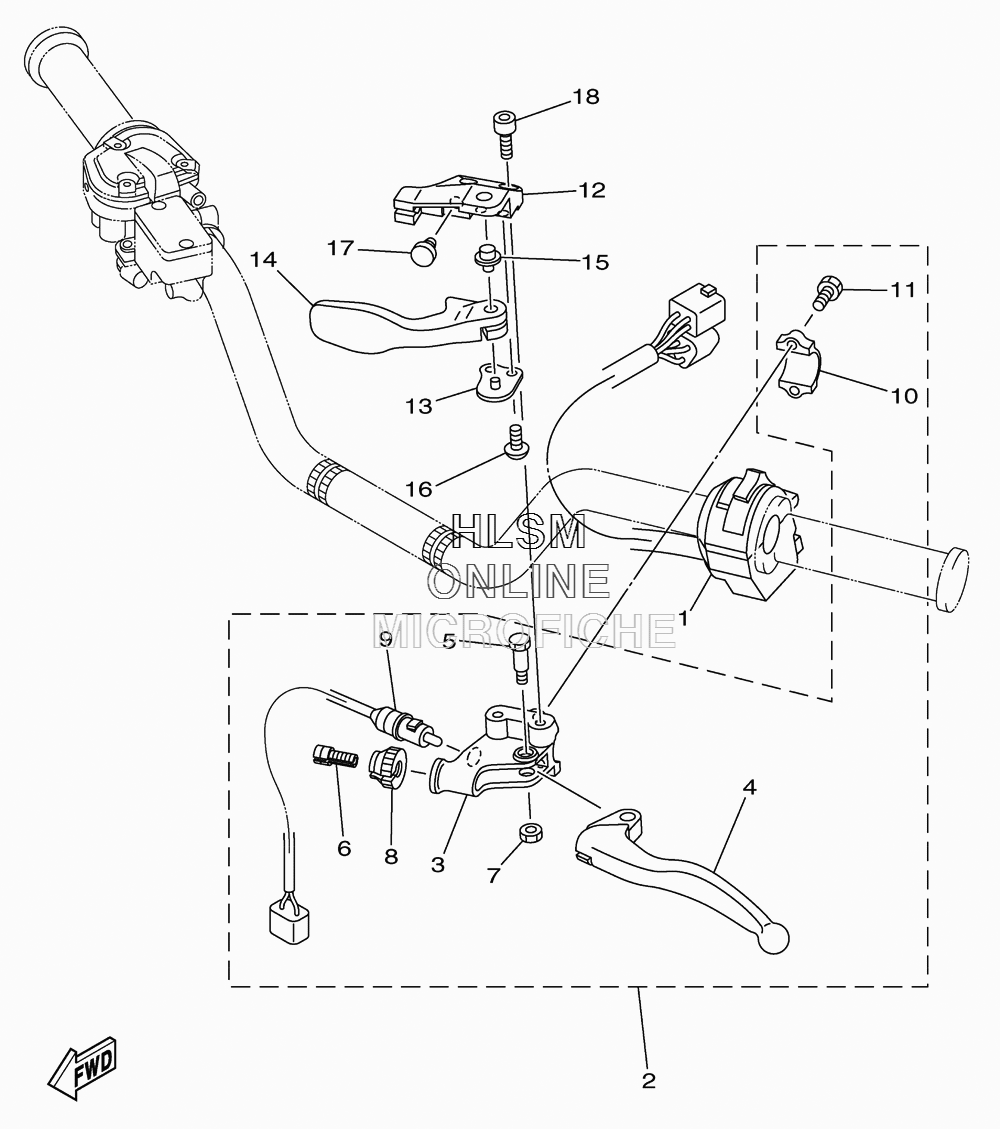

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha YFZ 450R - 2011 года выпуска`
-
№АртикулНазвание
-
11S3-83973-11-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
218P-82910-00-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
35TG-82911-00-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
45TJ-83912-00-00 LEVER 1LEVER 1
-
590109-06034-00 BOLTBOLT
-
65TA-26337-00-00 BOLT, ADJUSTINGBOLT, ADJUSTING
-
795602-06100-00 NUT, UNUT, U
-
85HD-83951-00-00 BOLT, CABLE ADJUSTINGBOLT, CABLE ADJUSTING
-
95KM-82917-00-00 SWITCHSWITCH
-
105TG-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
1190101-05033-00 BOLTBOLT
-
125TG-25727-01-00 BRACKET, LEVERBRACKET, LEVER
-
135D3-25689-00-00 PLATE, GUIDEPLATE, GUIDE
-
145TG-25726-01-00 LEVER, BRAKELEVER, BRAKE
-
155TG-83923-00-00 COLLAR, LEVER 2COLLAR, LEVER 2
-
1692012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1790338-07007-00 PLUGPLUG
-
1892012-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
