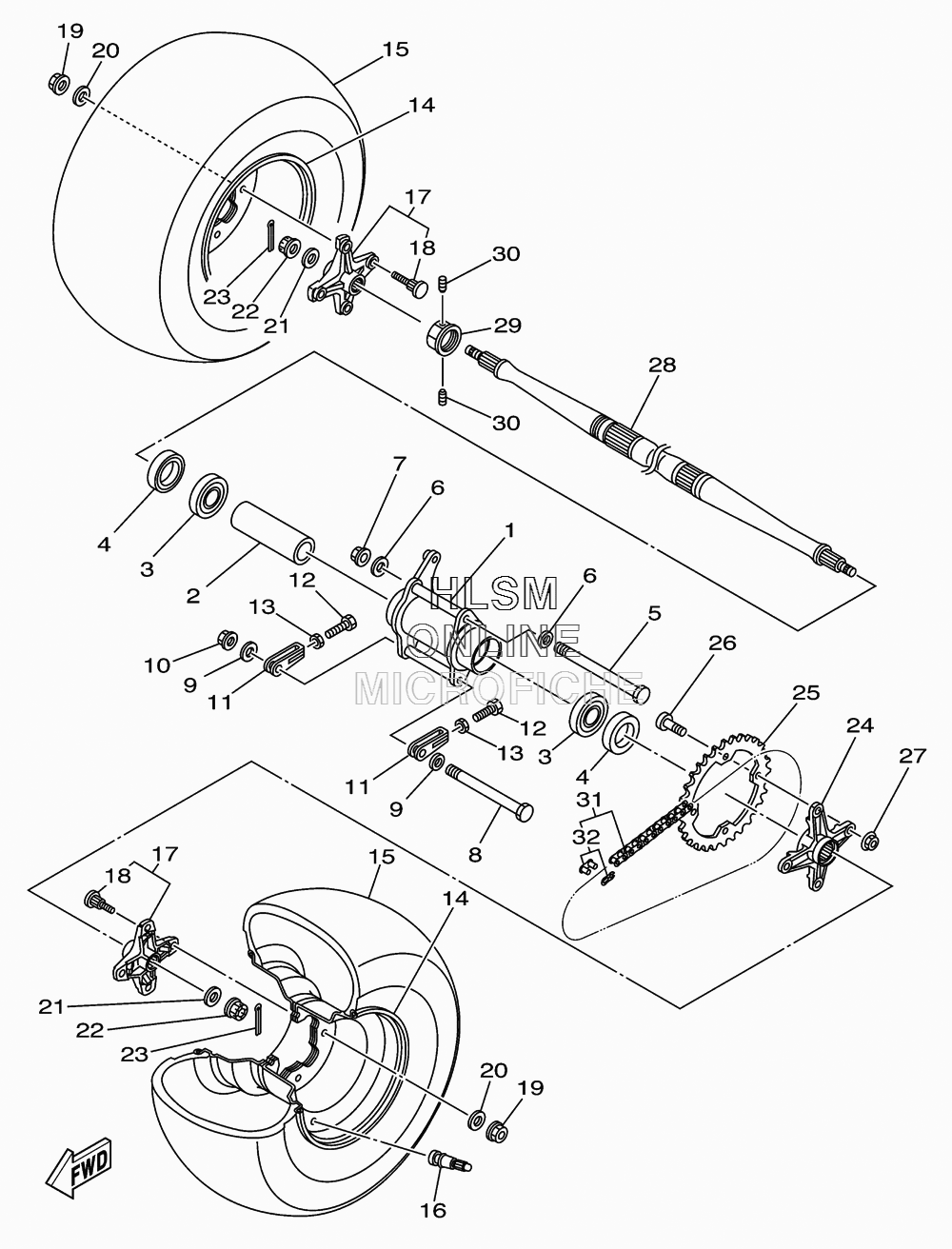

WHEEL - REAR W/ AXLE ASSY для Yamaha RAPTOR 350 - 2011 года выпуска`
-
№АртикулНазвание
-
15YT-25311-00-00 HUB, REARHUB, REAR
-
25YT-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
393306-00710-00 BEARINGBEARING
-
493106-46001-00 OIL SEALOIL SEAL
-
590101-12032-00 BOLTBOLT
-
690201-12045-00 WASHER, PLATEWASHER, PLATE
-
790179-12009-00 NUTNUT
-
890101-10029-00 BOLTBOLT
-
990201-10052-00 WASHER, PLATEWASHER, PLATE
-
1090179-10024-00 NUTNUT
-
113GD-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
1290101-08006-00 BOLTBOLT
-
1395302-08600-00 NUT (6L2)NUT (6L2)
-
141S3-25390-00-00 REAR WHEEL COMP. (FOR DPBSE)REAR WHEEL COMP. (FOR DPBSE)
-
1594110-09020-00 TIRE (AT20X10-9 KT877 T/L) DUNLOPTIRE (AT20X10-9 KT877 T/L) DUNLOP
-
1693900-00022-00 VALVE, RIMVALVE, RIM
-
171S3-25383-20-00 COLLAR, WHEELCOLLAR, WHEEL
-
1890114-10013-00 BOLT, SERRATIONBOLT, SERRATION
-
1995702-10500-00 NUT, FLANGENUT, FLANGE
-
2092902-10200-00 WASHERWASHER
-
2190201-14021-00 WASHER, PLATEWASHER, PLATE
-
2290171-14004-00 NUT, CASTLENUT, CASTLE
-
2391401-30030-00 PIN, COTTERPIN, COTTER
-
245YT-25386-00-00 COLLAR, SPROCKET AXLECOLLAR, SPROCKET AXLE
-
255TG-25438-10-00 SPROCKET, DRIVEN (38T)SPROCKET, DRIVEN (38T)
-
2690109-10013-00 BOLTBOLT
-
2790185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
285YT-25381-10-00 AXLE, WHEELAXLE, WHEEL
-
2990170-33010-00 NUTNUT
-
3090113-06055-00 BOLT, SETBOLT, SET
-
3194581-87098-00 CHAIN (DID520V 98L)CHAIN (DID520V 98L)
-
3294681-87011-00 JOINT, CHAIN (DID520V FJ)JOINT, CHAIN (DID520V FJ)
