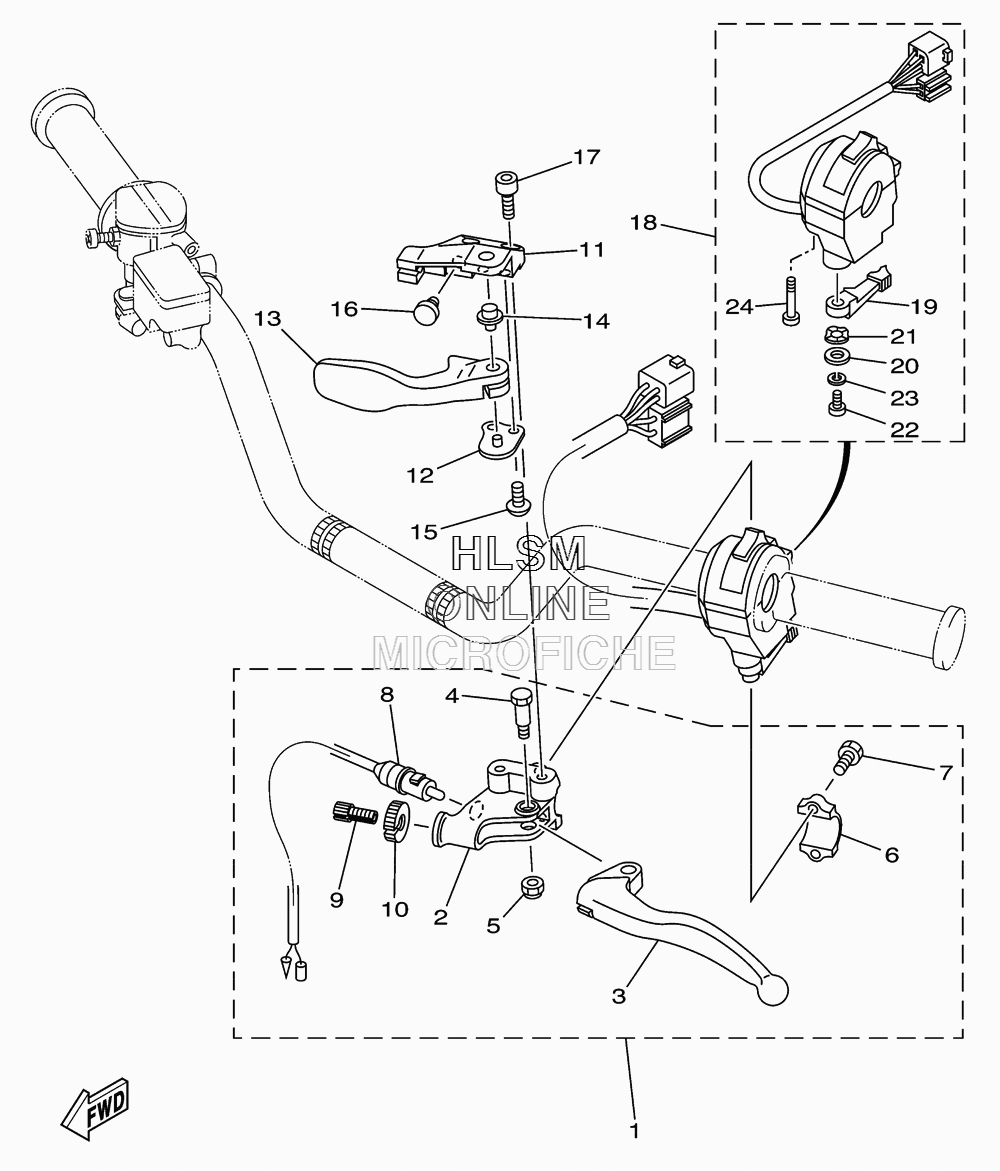

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha RAPTOR 350 - 2011 года выпуска`
-
№АртикулНазвание
-
15YT-82910-10-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
25YT-82911-10-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
32HT-83912-00-00 LEVER 1LEVER 1
-
490109-06798-00 BOLTBOLT
-
595602-06100-00 NUT, UNUT, U
-
65TG-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
797002-05016-00 BOLTBOLT
-
85KM-82917-00-00 SWITCHSWITCH
-
990123-08046-00 BOLTBOLT
-
1090179-08148-00 NUTNUT
-
115TG-25727-01-00 BRACKET, LEVERBRACKET, LEVER
-
125D3-25689-00-00 PLATE, GUIDEPLATE, GUIDE
-
135TG-25726-01-00 LEVER, BRAKELEVER, BRAKE
-
145TG-83923-00-00 COLLAR, LEVER 2COLLAR, LEVER 2
-
1592012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1690338-07007-00 PLUGPLUG
-
1792012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
185LP-83973-01-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
195GH-83941-00-00 LEVER, STARTERLEVER, STARTER
-
201UY-83909-00-00 WASHER, SPECIALWASHER, SPECIAL
-
213L4-83943-00-00 WASHER, STARTERWASHER, STARTER
-
2298517-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2392907-05100-00 WASHER, SPRINGWASHER, SPRING
-
2498507-05030-00 SCREW, PAN HEADSCREW, PAN HEAD
